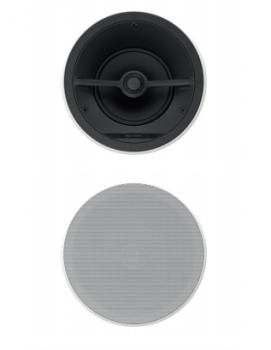

Bowers & Wilkins CCM 7.5 S2 In-Ceiling Speaker (Single)
Zoom  Zoom

Bowers & Wilkins CCM 7.5 S2 In-Ceiling Speaker (Single)

Please note, this product requires collection from our showroom. Not available to purchase online

£549.00
£457.50 Exc. VAT |
Out of stock

|

See Nothing, Hear Everything!

Bowers & Wilkins CCM S2 7.5 In-Ceiling Speaker (Single)

While it might be the entry level speaker in the CI700 in-ceiling range, the CCM7.5 certainly doesn’t skimp on high-spec features. Featuring a Kevlar bass/mid-range driver in a die-cast chassis and a independntly mounted Nautilus™ tube loaded tweeter. Its baffle is critically formed from glass reinforced ABS and features a scallop under the tweeter which creates the perfect roll off for high frequencies resulting in a more accurate reproduction of sound

Specifications:

2-way in-ceiling system

Drive units
1x ø25mm (1in) Carbon Dome high-frequency
1x ø180mm (7in) Continuum cone mid/bass

Frequency range (-6dB)
-6dB at 25Hz - 33kHz

Frequency Response -3dB
32Hz - 28kHz ±3dB

Sensitivity
90dB spl (2.83Vrms, 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz

Nominal impedance
8Ω (minimum 4.8Ω)

Recommended amplifier power
25W - 150W into 8Ω on unclipped programme

Frame diameter
290mm (11.4in)

Depth (behind surface)
128mm (5in)

Cut-out diameter
254mm (10in)

Protrusion
8.5mm (0.33in)

PMK
PMK C8

Back box
BB 6C

Square grille option

GR68SQ

Net weight
3.1kg (6.83 lb)

Finishes
Grille:  White

Be the first to Write a Review for this item!
