Bowers & Wilkins CCM 8.5D In-Ceiling Speaker with Back Box
The new Bowers & Wilkins CI800 Series Diamond range of custom installation speakers is engineered for discerning customers who demand great hi-fi and home cinema sound from loudspeakers that occupy minimal space. This exceptional range of in-wall and in-ceiling loudspeakers features all the key transducer technologies developed for the globally renowned 800 Series Diamond including Diamond dome tweeters, Continuum midrange drivers and Aerofoil bass cones. Despite their dramatically enhanced performance, every new model fits into the backboxes and apertures of the outgoing CI800 Series, so owners can easily upgrade to the dramatically improved performance offered by the new range. The result is outstanding levels of performance that once again raise the bar for custom installation loudspeakers.

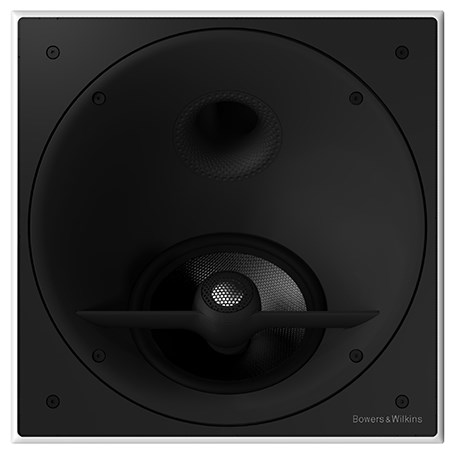

CCM8.5 D is a two-way in-ceiling speaker. It features a decoupled Diamond dome 25mm (1 inch) tweeter and a single 180mm (7-inch) bass/mid Continuum driver. The drivers are located in a continuously rotatable mini-baffle which allows the user to ‘toe in’ the drivers for the best performance.
Description 2-way in-ceiling loudspeaker Technical features Aluminium Tweeter ‘wing’ Rotatable aluminium mini-baffle allows ‘toe-in’ Diamond Dome, Nautilus™ tube-loaded tweeter Anti-resonance plug Flowport™ Drive units 1x ø25mm (1in) Diamond Dome, Nautilus™ tube-loaded tweeter 1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug Frequency range (-6dB) 35Hz - 35kHz Recommended Amplifier Power 120W Sensitivity 88dB Nominal Impedance 8Ω Frame (width/height) 351mm (13.8in) Cut-out (width/height) 331mm (13in) Protrusion 8mm (0.3in) Net weight 5kg
