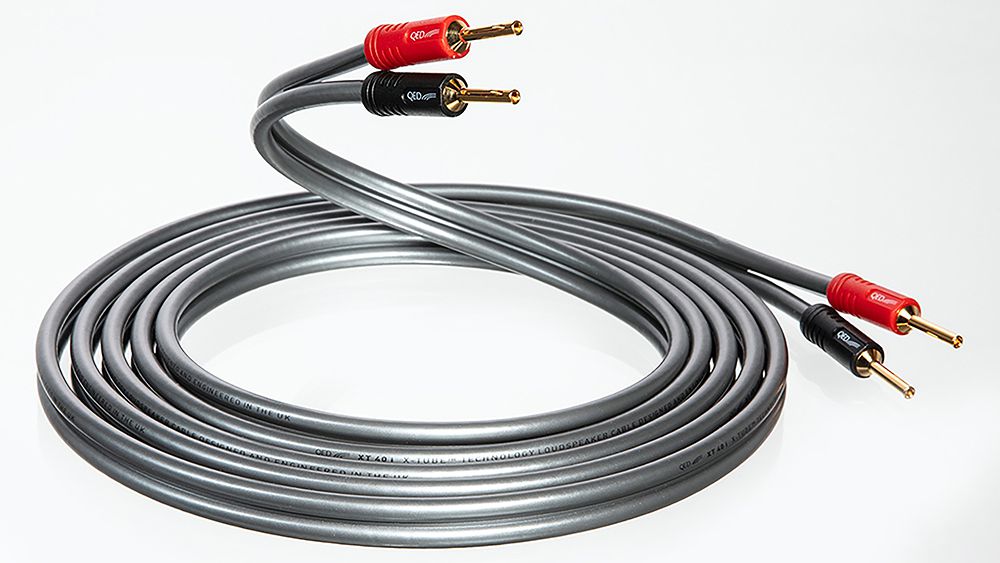

QED Reference XT40i Speaker Cable
This pure oxygen-free copper cable uses an evolution of QED’s established X-Tube technology to guarantee superb timing and stereo imaging, and adds the brand new and highly innovative Air Gap dielectric to bring unheard-of rhythmic accuracy and musicality to a cable of this modest price. Very low DC resistance adds unrivalled frequency response to XT40i’s already potent audio capability. The result is a cable that advances on the class-leading standards set by its predecessor.
Air Gap Dielectric
By increasing the separation of the conductors inside the cable, and therefore the amount of air between them, QED has created a low-loss Air Gap dielectric. This technology halves the dissipation and capacitance characteristics of the cable, and results in numerous audible improvements - particularly where timing and rhythmic accuracy are concerned. Despite this increased separation, though, XT40i retains the sort of cross-sectional area that makes it ideal for long cable runs.
Large Cross-Sectional Area
The 4mm2 cross sectional area means XT40 exhibits very low resistance, allowing amplifiers to exert outstanding control over the speakers they are driving. In addition, its large cross sectional area makes it suitable for long cable runs.
At low frequencies both X-Tube™ and conventional stranded/solid core speaker cables convey signals in a linear way. However, at high frequencies, X-TubeTM retains a near-linear signal transfer, whereas the conventional cables fail to conduct uniformly across the entire conductor area.
In standard speaker cables at high frequencies current flow is highest at the periphery with rapidly deteriorating current density towards the centre of the conductor.
The effect of this is to reduce the actual cross sectional area of the cable at 15kHz to less than 75% of that at low frequencies. This results in higher distortion and compromises the performance of the cable.
X-TubeTM with polycore technology exhibits much lower self-inductance and is therefore less affected by this problem. The polycore technology reduces loop inductance to levels only achievable using more costly and difficult to terminate cables.
The result is more high frequency detail, less distortion and greater performance.
- Please note, you need to enter a quantity of 2 for a pair
- Length : Custom
- Wire gauge - 12 AWG
- Jacket Outer Diameter - 14mm x 6mm (W x D)
- Cross-sectional area - 4.00mm²
- Loop resistance - 8.0 mΩ/m
- Capacitance - 35pF/m
- Inductance - 0.57 µH/m
- Dissipation factor @ 10KHz - 0.0295
- Nominal outside diameter 6.0 mm
- Lifetime Guarantee
