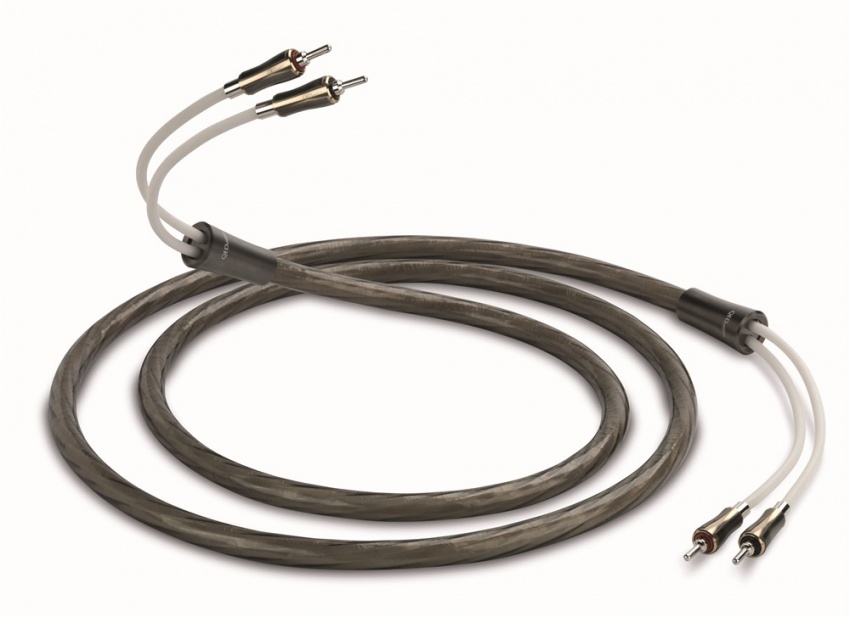

QED Supremus Reference Speaker Cable
Please note 3.0m pairs are available from stock at QED, any other lengths are special order
and will delay shipping by 5-7 days.
The largest cross sectional area of pure copper ever incorporated into a QED loudspeaker cable, enables Supremus to deliver the ultra-low resistance required to ensure perfect fidelity of the musical signal.
AirCore™ Technology, unique to QED cables, means unrivalled high frequency detail, rhythm and timing.
Supremus boasts sixteen silver plated, 99.999% oxygen free copper, solid core conductors. To deliver its no compromise sonic performance, each individual conductor is insulated by a nearly invisible layer of enamel, providing ultimate insulation for a more detailed output.
CROSS-SECTIONAL AREA
6.2mm2 | WIRE GAUGE
10AWG | JACKET OUTSIDE DIAMETER
17mm | JACKET INTERNAL DIAMETER
8mm |
LOOP RESISTANCE
0.005Ω/m | CAPACITANCE
48pF/m | INDUCTANCE
0.49uH/m | DISSIPATION FACTOR
0.009 |
CONDUCTORS
2 x 16 solid core silver plated 99.999% oxygen free copper conductors | INSULATION
Unique enamel with low loss surrounding foamed polyethylene dielectric insulation | PLUGS AND SPADES
Rhodium plated locking AircoreTM Plugs and Spades available | OTHER
AircoreTM Technology Cryogenically treated |
