Oyaide SLSB BNC Connectors

Oyaide SLSB BNC Connectors

  (1 Review)
£150.00 Exc. VAT |  |

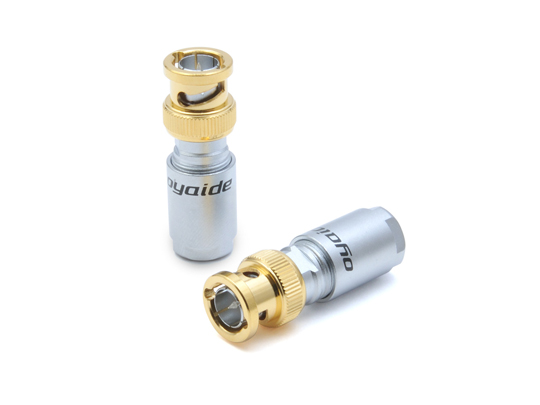

Oyaide SLSB BNC Connectors (Set of 2)

4N pure silver centre pin

The high-quality gateways of lossless signal transmission

The plugs are the gateways of signal transmission and define the quality of sound. As the original plug of SL series, SLSC and SLSB are produced to the maximum potential of cable. We employed 4N pure silver which has the highest electrical conductivity in all metals for the contact pin. SLSC/SLSB actualize transmitting high-quality and lossless sound.

Outer shell

The body and housing of SLSC/SLSB, made of brass and processed by CNC machining, are high-density and have high shielding performance compared to an existing lost-wax processed body. For its surface treatment, hard chrome plating is coated like a body of a camera. The knurled pattern on the surface of SLSC enhances the handling property.

Contact pin

The contact pin is trimmed down from 4mm 4N silver round bar by precision CNC machining. It is finished by mechanical barreling and hand polishing piece by piece.。


The insulator is a significant factor in enhancing the transmitting capabilities of the cable. For the purpose of lessening signal loss, we employed PTFE which provides excellent electrical isolation and low electric permittivity.


  Center Pin: 4N pure silver
 Outer: Fri brass 24K + Berikuromumekk
How to Connect
Soldering only.
Adaptive wire diameter
9.0mm 9.0m
Packing Qty
 1 pair
Average Rating (1 Review):
Write a Review and share your opinions!

75 ohm bnc connector
19 March 2016  |

I have used 75 ohm bnc male connectors from WBT, cardas, neutrik, n now oyaide. For my system comprising Audio Nite preamp, McIntosh power amp, Pro-Ject cd transoort n MHDT Stockholm v2, with DIY bookshef using AT Cquense mid woofer n SEAS crescendo tweeter, oyaide leads them all with neytral n natural presentation.


Was this helpful to you?  Yes  /  No

6 of 9 people found this review helpful.
