Furutech CF-BNC Rhodium BNC Connector

Furutech CF-BNC (R) 75Ω BNC Connector
Premier Performance and Legendary Build Quality

FEATURES

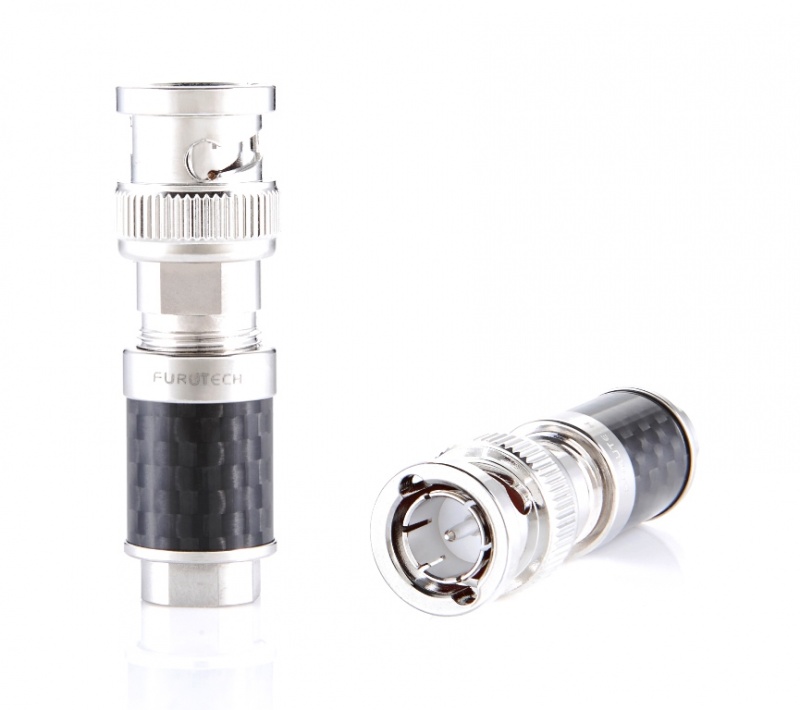

Furutech’s beautifully finished, beautiful sounding CF-BNC connectors are the result of meticulous engineering and careful audition of various suitable materials. The CF-BNC features an α (Alpha) phosphor bronze conductor and Fluoropolymer PTFE insulation for minimal impedance and a nonmagnetic stainless and carbon fiber finished housing for superior damping.

SPECIFICATIONS

•    Main conductor: Nonmagnetic Rhodium-plated α (Alpha) Phosphor bronze conductor
•    Insulation with Fluoropolymer PTFE Resin
•    Housing: Nonmagnetic stainless and carbon fiber finished.
•    Cable Clamp: Copper Alloy.
•    Specified for wire outer diameters up to 8.0mm
•    Connections: Soldered

Dimensions: Housing: 13.4ψx 22 mm overall length
Total overall length: 43.9 mm approx.
