Graham Slee Revelation C RIAA Equalizer Phono Stage
Zoom  Zoom

Graham Slee Revelation C RIAA Equalizer Phono Stage

  (1 Review)
£616.67 Exc. VAT |

With Balanced Output:


Graham Slee Revelation C RIAA Equalizer Phono Stage


Welcome to a new world of musical realism! The Revelation multi-equalisation format RIAA equalizer stages welcome you to that new world.

Available in moving magnet (see other listing) and moving coil versions, the Revelation M and Revelation C equalizer stages are the multi-format variants of the Reflex M and C phono stages — there is no difference except the additional record EQ switching.

They're a must for any serious record collector. It's quite amazing how they can make early LPs and 78 rpm records sound as tonally balanced and fresh as some of todays modern vinyl records.

Three 3-way switches provide a matrix of equalisation curves covering virtually all electric phonograph records ever released, including today's modern RIAA pressings.

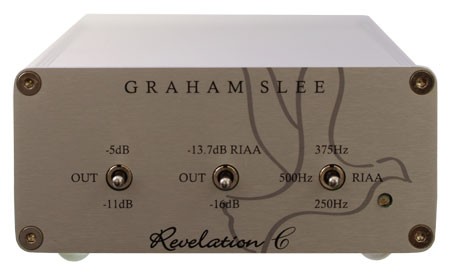

The right equalisation easily selected on a matrix of three 3-way front panel switches

Reflex flagship performance in RIAA mode

Rear panel mono-sum selector switch (centre: stereo; up or down: mono)

Fast-Active preamp and equalisation technology

Latest innovative Ultra-Linear technique

Inherent reduced vinyl click and pop characteristic

Rock steady sound stage and truly 3D performance from modern vinyl

Moving Magnet and Moving Coil sensitivity versions


Input range: 0.2mV to 1.0mV

Output (for input range): 252mV to 1,260mV (1.26V)

Maximum input: 3.9mV rms

Maximum output: 4.914V rms

Gain: 62dB (1,260) at 1kHz

Input impedance: 100 Ohms

Output (driving/source) impedance: 1k Ohm

Recommended load impedance: 10k Ohm or greater

Noise at output: -62dB CCIR Q-pk

Equivalent input noise (EIN): -124dB

Distortion: 0.02%

RIAA accuracy: <0.5dB

Frequency response: 20Hz - 200kHz (flat, corrected to RIAA)

Channel balance: 0.2dB

Channel separation: 64dB

Size: (approx.) W: 107 x H: 50 x D: 180 (mm) inc. jacks



Average Rating (1 Review):
Write a Review and share your opinions!

Graham slee revelation c
20 December 2020  |

Outstanding build and sound quality. Would recommend to anyone that wants a step up in listening to vinyl.

Was this helpful to you?  Yes  /  No

This review has not been appraised.
