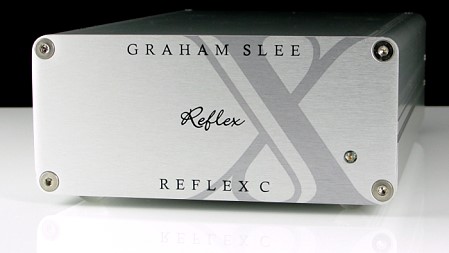

Graham Slee Reflex C RIAA Moving Coil Phono Stage
Zoom  Zoom

Graham Slee Reflex C RIAA Moving Coil Phono Stage

£450.00 Exc. VAT |



Graham Slee Reflex C RIAA Moving Coil Phono Stage

Phono Stage Preamp for Moving Coil Cartridges

Available  with PSU-1 or with Green Power Supply

Realising the potential for a high quality moving coil phono stage, enter the Graham Slee Reflex C.  Based around the same high quality casework, this new model is designed to work with all low output moving coils. This is going to be an award winner just like many other Graham Slee models.

Available with PSU1 power supply or, for those on a budget, the Intro version comes with SM-PS switched mode power supply.




Input range: 0.2mV to 1.0mV

Output (for input range): 252mV to 1,260mV (1.26V)

Maximum input: 3.9mV rms

Maximum output: 4.914V rms

Gain: 62dB (1,260) at 1kHz

Input impedance: 100 Ohms

Output (driving/source) impedance: 1k Ohm

Recommended load impedance: 10k Ohm or greater

Noise at output: -62dB CCIR Q-pk

Equivalent input noise (EIN): -124dB

Distortion: 0.02%

RIAA accuracy: <0.5dB

Frequency response: 20Hz - 200kHz (flat, corrected to RIAA)

Channel balance: 0.2dB

Channel separation: 64dB

Size: (approx.) W: 107 x H: 50 x D: 180 (mm) inc. jacks
