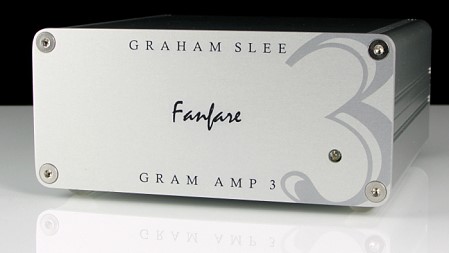

Graham Slee Gram Amp 3 Fanfare Moving Coil Phono Stage

Graham Slee Gram Amp 3 Fanfare Moving Coil Phono Stage

Absolutely unique: the only dedicated entry-level MC phono stage in the world — the Gram Amp 3 'Fanfare' extracts more music from vinyl than you'd think possible for its price and beyond!

Completely redesigned in 2009, and as of September 2012 "V3" is housed in our own extruded aluminium slim-line enclosure.

It lifts the veil on the music, getting rid of the lumpy bass moving coil is often characterised with. The sound-stage is opened up separating instruments and vocals into their rightful sound-stage positions.

Features

- Fast-Active preamp and equalisation technology

- Inherent reduced vinyl click and pop characteristic

- Rock steady sound stage

- Truly 3D performance

- Superior classic ground configuration

- Can be upgraded by using a PSU1 unipolar power supply instead of the "green" switched mode unit supplied

Specifications

- Input sensitivity range: 0.3mV to 1.2mV

- Output for input sensitivity range: 240mV - 954mV

- Maximum input level: 6.16mV (ref 1 kHz)

- Gain (ref 1kHz): 58dB

- Input impedance resistive: 100 Ohms

- Output noise: (CCIR Q-Pk 22Hz-22 kHz) -67dB

- Equivalent Input Noise (EIN) -125dB

- Reproduction characteristic: RIAA within 0.5dB total deviation 20Hz-20kHz

- Total Harmonic Distortion plus noise measured at 80Hz, 1kHz, 5.6 kHz and 16 kHz: less than 0.05% (typically <0.015% at 1 kHz)

- Channel balance: 0.1dB

- Channel separation: 64dB

- Size: 107 x 117 x 50mm approx.
