Output power
20W + 20W (6
Ω
)
、
18W + 18W (8
Ω
)
、
14W + 14W (4
Ω
)
Input sensitivety / impedance
Phono (MM) : 3.0mV / 47k
Ω、
Phono (MC) : 0.38mV / 100
Ω
LINE : 180mV /
47k
Ω
MAIN IN : 690mV / 100k
Ω
Output Voltage
Rec Output : 180mV
、
Preamp output : 1V
F
requency r
ange characteristic
PHONO : 20Hz
〜
20kHz (
±
0.5dB) LINE : 20Hz
〜
80kHz (+0
、
-
3.0dB)
T
otal harmonic distortion
Lower than 1%
S/N ratio (IHF
-
A)
Phono (MM) : Above
64dB
、
Phono (MC) : Above 67dB
、
LINE : Above 95dB
Volume control
LECUA
Circuitry
Preamp & Driver : Mullard circuit; Output :
Beam power tube system
Vacuum tubes
ECC82 x 3
、
6L6GC x 4
Output configuration
Push
-
pull
Tone control range
±
8dB
、
Turnover frequency switchable
、
BASS : 150 / 300 / 600Hz
、
TREBLE : 1.5k / 3k / 6kHz
Power supply
230V
-
(50Hz)
、
115V
-
(60Hz)
Dimensions
440(W) x 197(H) x
403(D) mm (including front panel knobs 25m & rear panel terminals 27mm)
Weight
17.6kg
、
21.5kg (with packing

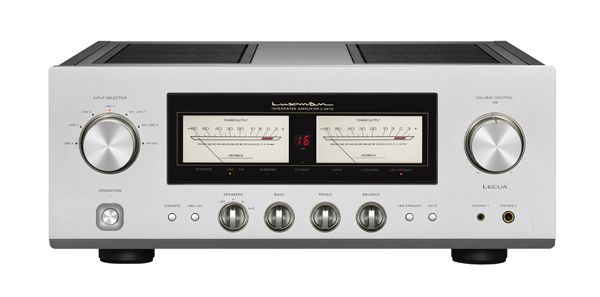

Luxman L-507Z Integrated Amplifier
The integration of sophistication and technical evolution. Introducing our innovative Z series.
The L-507z joins Luxman’s integrated amplifier range with numerous advances and features our newly designed “LIFES1.0” distortion canceling feedback engine. “LIFES” is a significant evolution from “ODNF” circuitry, which has long been a key advantage of Luxman amplifiers since its 2010 introduction in our X-series. The robust L-507z marks the beginning of Z-Series, all being developed to include this latest “LIFES” high-quality amplification system, a core technology also shared with our new flagship M-10x stereo/mono power amplifier.

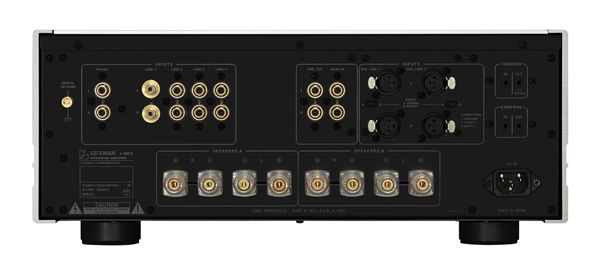

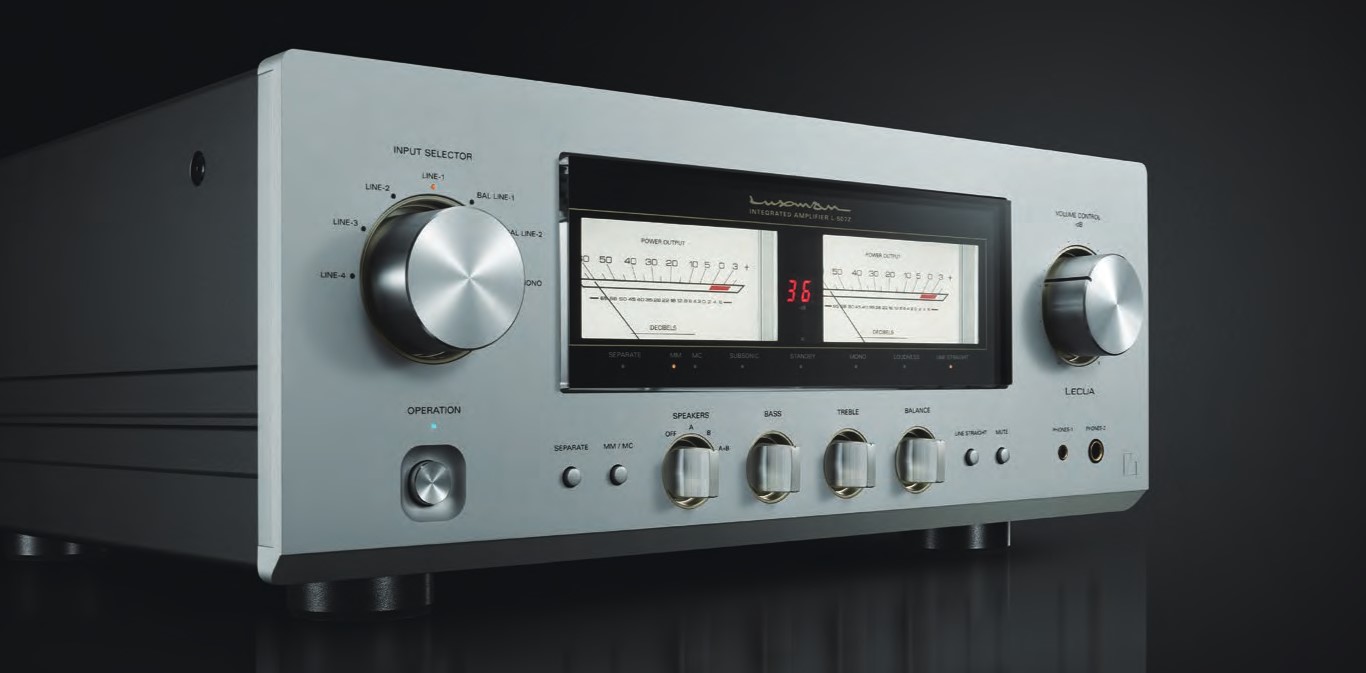

In addition, new user features enhance both convenience and performance required by today’s music listeners. Updated front panel VU meters combine with a 7-segment LED display to improve visibility of volume levels from any listening position. Alongside the standard 6.3 mm headphone jack is a new 4mm “Pentaconn” balanced output jack for better L-R separation. Rear- panel 12 volt trigger connections are now incorporated enabling more convenient integration among automated systems or a home-theater.
