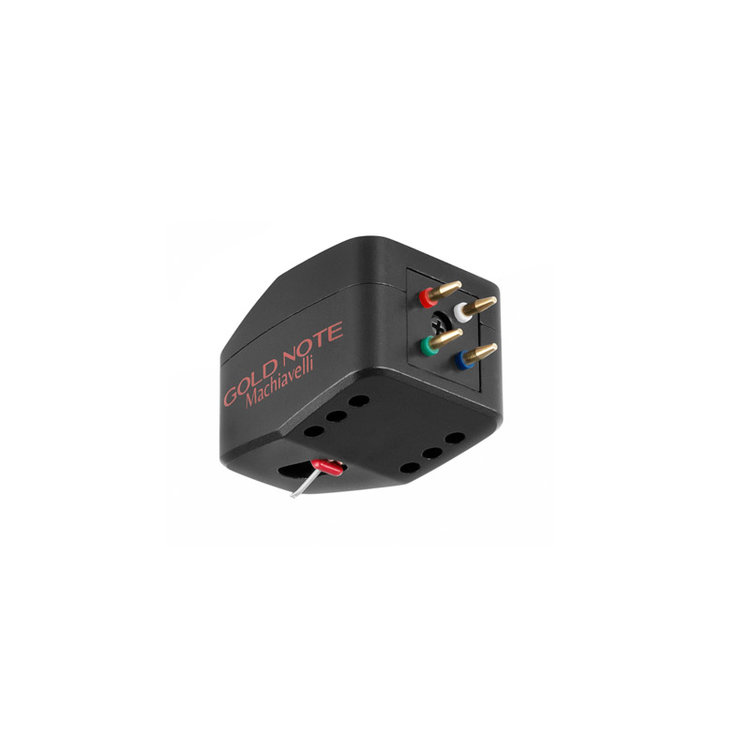

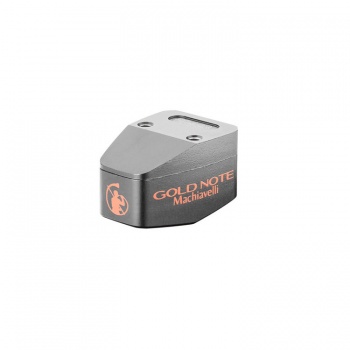

Gold Note Machiavelli Red MkII MC Phono Cartridge
Zoom  Zoom
 Gold Note Machiavelli Red MkII MC Phono CartridgeGold Note Machiavelli Red MkII MC Phono Cartridge

Gold Note Machiavelli Red MkII MC Phono Cartridge

£1,800.00
£1,500.00 Exc. VAT |  |

Gold Note Machiavelli Red MC Phono Cartridge

Machiavelli MKII comes with even better output level and impedance values



Machiavelli's extra rigid cantilever handles a high precision Line Contact diamond in the Gold model and a Micro Elliptical diamond in the Red model, both developed in collaboration with Ogura the inventor of the Line-Contact diamond shape.

The diamond tip is mechanically inserted and blocked into the new cantilever that is consequently handled by a special pipe to increase the structure rigidity.

The Machiavelli Series can be easily matched with any active phono preamp for MC cartridges, without the need of Step-Up transformers.

The cantilever suspension takes advantage of an elastic and non-deformable harmonic steel spring, rigidly blocked to eliminate vibrations thus enhancing the tracking capability.

With thin and long gold-plated pin connectors, Machiavelli is designed to connect perfectly with arm cinches, reducing energy dispersion and improving grounding for an ideal music background necessary to enjoy even the smaller details of your records.

Machiavelli Red mkII offers extra rigidity with its Aluminium cantilever and 40Ω high internal impedance and 0.5mV output level to easily match with MC phono preamps set-up without Step-Up transformers.

technical specifications

Typology: MC Low Output Phono Cartridge
Output level: 0.5mV
Frequency response: 10-40000Hz
Impedance: 40Ω
Suggested load: 47KΩ
Compliance: 10×10-6cm/dyne
Channel separation: > 28dB
Suggested tracking weight: 1.8 to 2.1g
Cantilever: Aluminum
Diamond: Micro Elliptical
Diamond size: 7.5×15.5μm
Coil Wire: Copper
Magnet: Samarium-Cobalt
Mounting hole diamond distance: 9mm
Weight: 10g



Finishes

BODY

Body 7050 Duraluminium alloy

COLOR

Black with Red Logo
