Gold Note Donatello Red MC Phono Cartridge
Zoom  Zoom
 Gold Note Donatello Red MC Phono CartridgeGold Note Donatello Red MC Phono Cartridge

Gold Note Donatello Red MC Phono Cartridge

£627.00
£522.50 Exc. VAT |


|

Gold Note Donatello Red MC Phono Cartridge

The NEW Italian MC

Inspired by a challenge

The main design behind the new Donatello MC cartridge was to engineer the best sounding cartridge of its category enabling a solid machined aluminium body, light enough to be handled by every tone-arms. The results exceeded expectations!

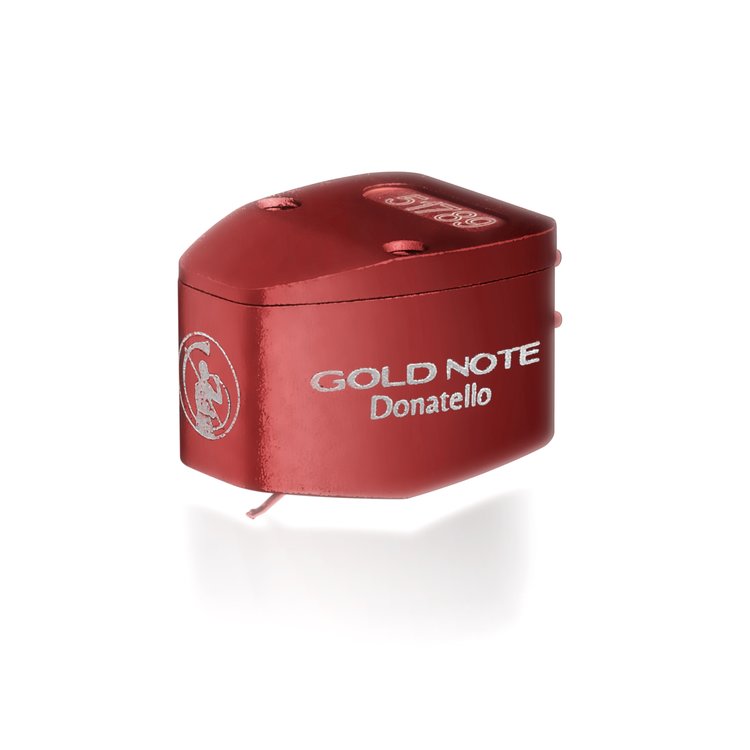

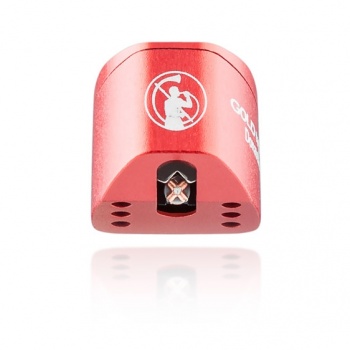

After two years of continuous research, here is Donatello: a sophisticated, computer designed body made of machined aluminium.

Weighing only 7gram, it's perfectly damped to help the cantilever achieve the best tracking ability.
Donatello's ultra rigid cantilever handles a high precision Micro Elliptical diamond exclusively developed in collaboration with Adamant-Namiki and designed for top audio performance.



empowered by technology

As our flagship cartridges, Donatello's diamond tip is mechanically inserted and blocked into a long, stiffened aluminium cantilever, handled in a special titanium telescopic seat to increase structural rigidity.

Like GN top class models, Donatello features long gold-plated pin connectors designed to connect perfectly with arm cinches, reducing energy dispersion and improving grounding for an ideal music background that will let you enjoy even the smaller details of your music.

Donatello Red features high internal impedance & gain levels, so that it can be easily matched with MM phono preamp while the Donatello Gold can be driven correctly by MC preamps, without the need of any Step-Up transformers.

* all Donatello cartridges come with serial number indelibly printed in the engraved area at the top of the body

technical SPECIFICATIONS

Typology: MC High Output Phono Cartridge
Output level: 1.8mV
Frequency response: 10-35000Hz
Impedance: 140Ω
Suggested load: 47KΩ
Compliance: 12×10-6cm/dyne
Channel separation: > 24dB
Channel balance: < 1dB
Suggested tracking weight: 1.8 to 2.1g
Cantilever: Aluminum
Diamond: Micro Elliptical
Coil Wire: Copper
Magnet: Samarium-Cobalt
Mounting hole diamond distance: 9mm



Finishes

BODY

Duraluminium

COLOR

Red with White Logo
