Sky Analog G-3 Cartridge

£1,999.00

£1,665.83 Exc. VAT |

Description
Specifications
Customer Reviews (0)

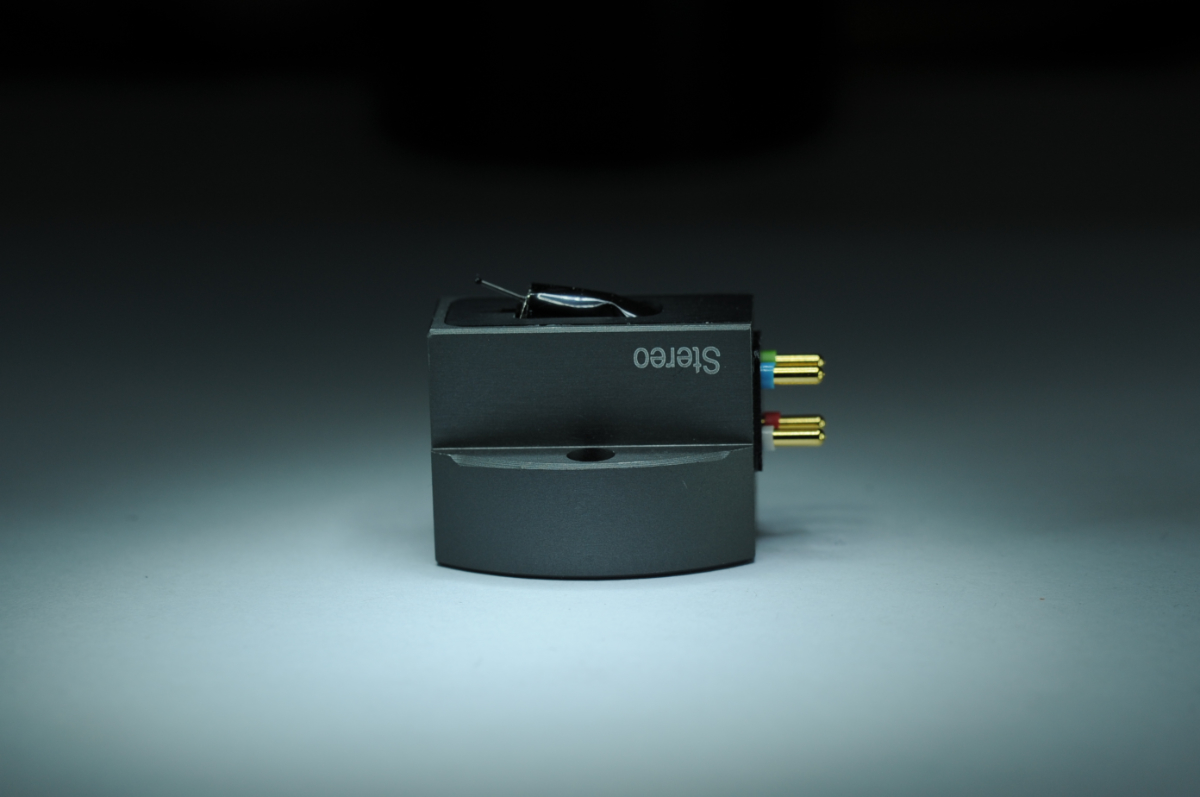

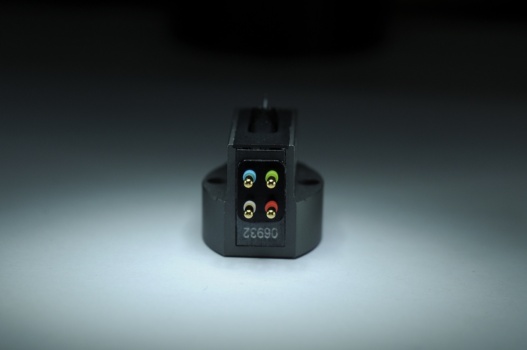

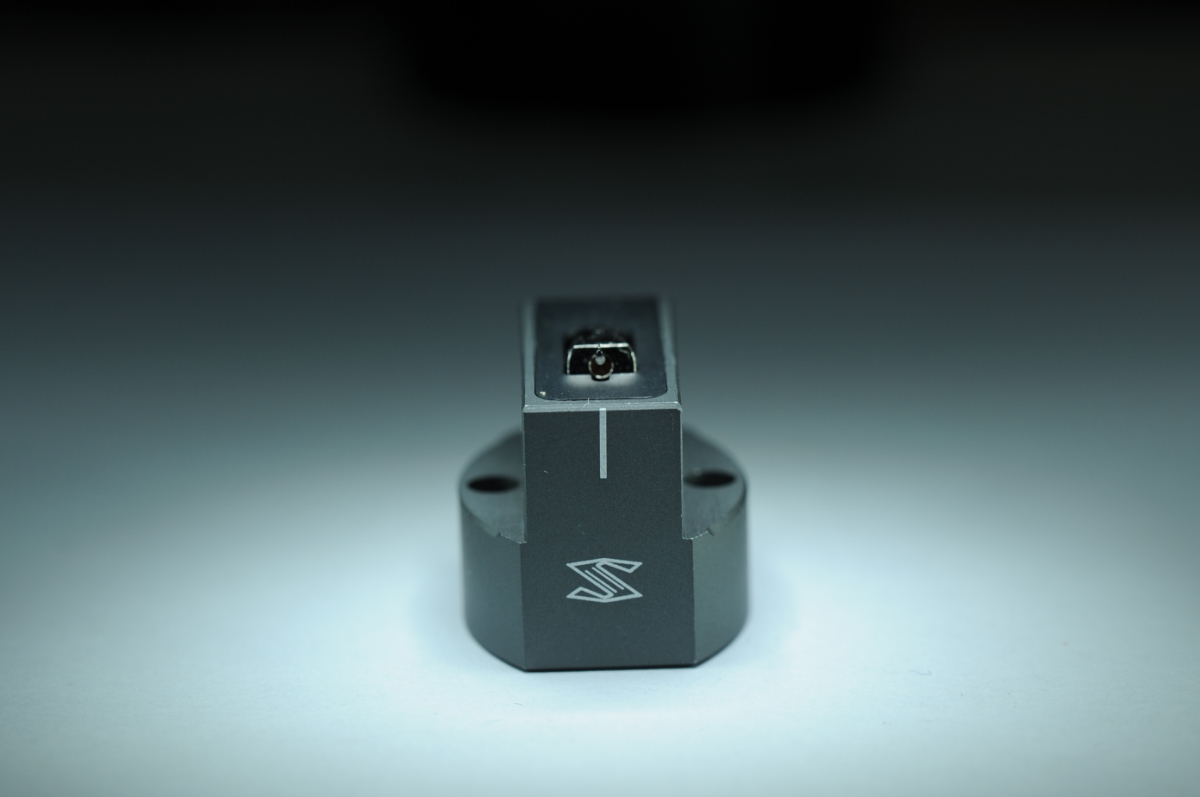

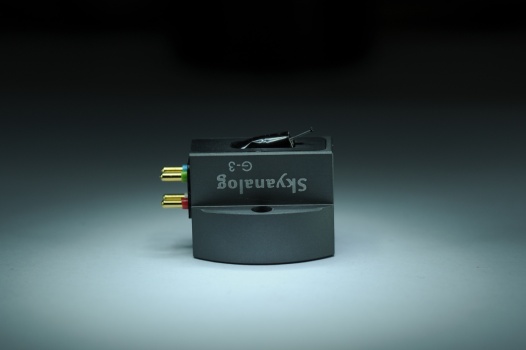

Sky Analog G-3 Cartridge

SkyAnalog initially started designing tube amplifiers, much later they started designing High-End MC pickups. The G-series has, among other things, a unique aluminum body and a cantilever of Borium, Ruby or Sapphire.

MODEL G-3 SPECIFICATIONS

PHYSICAL
Cantilever	Sapphire
Stylus	Diamond
Stylus Tip Radius	5 x 150 µm
VTA Vertical Tracking Angle	20˚
Coil	Pure Iron Cross Coil
Weight	10 grams
ELECTRICAL
Output Voltage	0.35 mV @ 3.54 cm/s
Internal Impedance	8 Ω
Frequency Respons	20 – 30.000 Hz +/- 1 dB
Channel Separation	˃ 30 dB at 1 kHz
Channel Balance	< 0.5 dB
DYNAMIC
Tracking Ability @ 315 Hz / 2 grams	80 µm
Dynamic Compliance	10 µm / mN
SETUP INSTRUCTION
Recommended Load	200 – 470 Ω
Recommended Tracking Force	1.5 – 1.7 grams
Optimum Tracking Force	1.6 grams
Recommended Tonearm Mass	Medium
Optimum Working Temperature	23 ˚C
Break-In Period	30 hours
