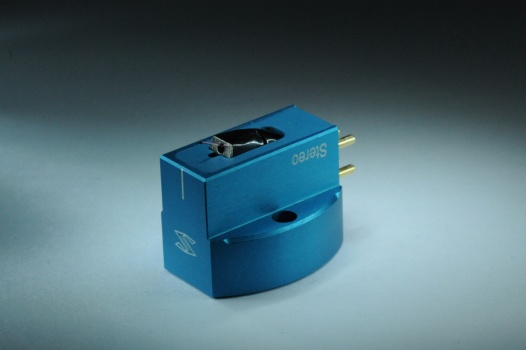

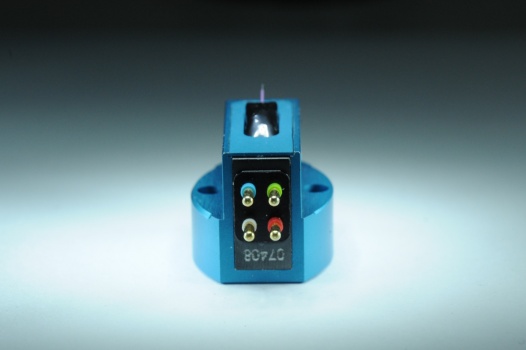

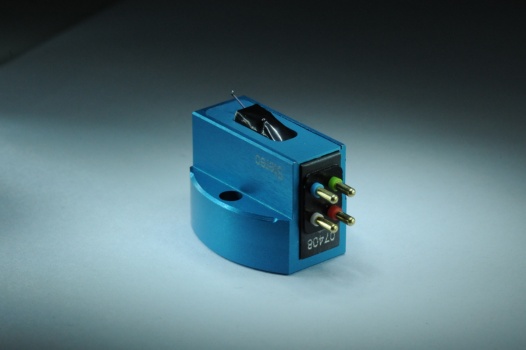

Sky Analog G-2 Cartridge

£1,295.00
£1,079.17 Exc. VAT |


|

Sky Analog G-2 Cartridge

SkyAnalog initially started designing tube amplifiers, much later they started designing High-End MC pickups. The G-series has, among other things, a unique aluminum body and a cantilever of Borium, Ruby or Sapphire.



MODEL G-2 SPECIFICATIONS

PHYSICAL
Cantilever Ruby
Stylus Diamond
Stylus Tip Radius 5 x 150 µm
VTA Vertical Tracking Angle 20˚
Coil Pure Iron Cross Coil
Weight 10 grams
ELECTRICAL
Output Voltage 0.35 mV @ 3.54 cm/s
Internal Impedance 8 Ω
Frequency Respons 20 – 30.000 Hz +/- 1 dB
Channel Separation ˃ 30 dB at 1 kHz
Channel Balance < 0.5 dB
DYNAMIC
Tracking Ability @ 315 Hz / 2 grams 80 µm
Dynamic Compliance 10 µm / mN
SETUP INSTRUCTION
Recommended Load 200 – 470 Ω
Recommended Tracking Force 1.5 – 1.7 grams
Optimum Tracking Force 1.6 grams
Recommended Tonearm Mass Medium
Optimum Working Temperature 23 ˚C
Break-In Period 30 hours
