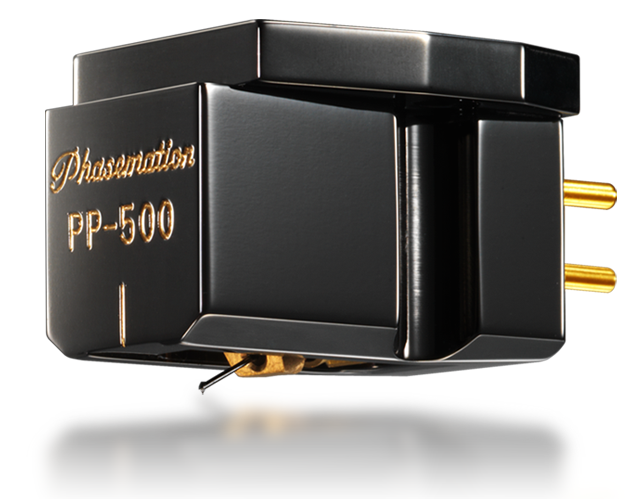

Phasemation PP-500 MC Phono Cartridge
Zoom  Zoom

Phasemation PP-500 MC Phono Cartridge

£1,995.00
£1,662.50 Exc. VAT |


|

Phasemation PP-500 MC Phono Cartridge

Phasemation's MC cartridge which can educe music reality and even the artist's passion engraved in the records

New design of a magnetic circuit

The technology of the flagship model PP-2000 is applied for this magnetic circuit structure. Therefore, just like PP-2000, we have achieved for this product to provide an excellent magnetic field having high efficiency and uniformity.  Consequently the output is increased without making the vibration system heavier.

Improving the trackability by readjusting the vibration system

In order to aim for the best balance of optimum sound quality in this class, we improved the PP-300's vibration system, adopting the base made of duralumin and tuned this vibration system exclusively for PP-500. Consequently it is achieved that the powerful sound quality and realistic sensation can be expressed.

Inheriting the high quality materials for audio sound

High quality materials for audio sound verified in PP-2000 and other models are inherited and they are well-acknowledged until now for the following parts: cantilever made of pure boron material, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin, damper, and so forth.

For the body, the well-acknowledged DLC (Diamond Like Carbon) * coating has been adopted continuously.The unclouded sound quality being well suited for the rigidity and vibration-damping properties have been realized.

*DLC(Diamond Like Carbon)is a generic name of a carbon film to be produced with vapor phase synthesis utilizing ion processing and the high rigidity and high electric insulation similar to a diamond are provided for it.

Power Generation Method Moving Coil Type
Impedance 4 Ohm
Applicable Stylus Force 1.7 to 2.0g
Output Voltage 0.3mV (horizontal direction of 1kHz 50mm/s)
Compliance 8.0 µm/mN (8.0x10(-6) cm/dyne)
Playing Frequency Range 10Hz to 30kHz
Separation 30dB or more (1kHz)
Channel Balance Within 1dB (1kHz)
Tare 11.3g
Stylus Chip Diamond(line contact / curvature 0.03×0.003mm)
Cantilever Pure Boron φ0.26
Magnet Samarium Cobalt Magnet
Magnetic Circuit Composition Material Permendur
Base Machined duralumin (Diamond Like Carbon processing)
Body Machined Duralumin (Diamond Like Carbon processing)
