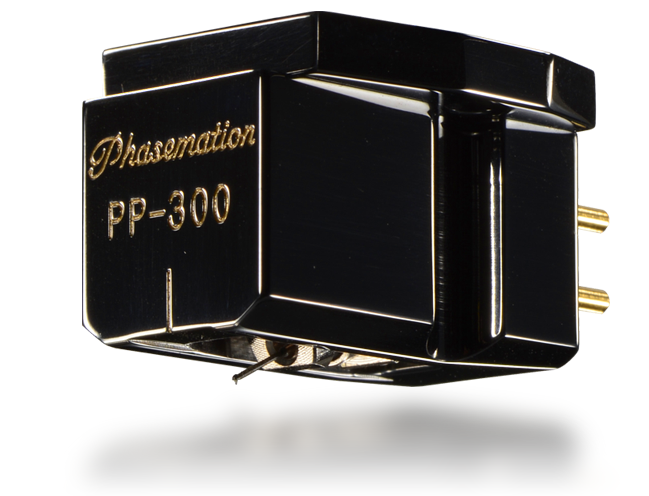

Phasemation PP-300 MC Phono Cartridge
Zoom  Zoom

Phasemation PP-300 MC Phono Cartridge

£1,395.00
£1,162.50 Exc. VAT |


|

Phasemation PP-300 MC Phono Cartridge

We have released the PP-300, the model of 10th anniversary of our brand establishment, as the new basic model. It has 'the midrange-treble-part with high freshness', 'the resonant bass part' which the conventional MC cartridge could not realize, and also 'space expression ability', because the knowhow of our PP-1000, the Pasemation flagship, has been applied.

1. Feed-back of PP-1000 magnetic circuit technology

To the magnetic circuit structure the technology of PP-1000, the flagship model, is applied; and by refining materials and manufacturing and finishing cost advantage has been enhanced. Furthermore, by changing to samarium-cobalt magnet, the recreation of excellent feeling of sound field and freshness has been successfully realized, which has been difficult for our conventional P-3.

2. Inheriting the Body for High Quality Audio Sound

We inherit duralumin previously-well-acknowledged against P-3 as the materials of base and body. Furthermore, DLC (Diamond Like Carbon) *1) coating is conducted; thereby, the structure excellent at rigidity and vibration-damping characteristics is realized.

*1) DLC (Diamond Like Carbon) is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.

3. Inheriting the Materials for High Quality Audio Sound

We inherit the following materials for high quality audio sound well-established in PP-1000 and others: Cantilever made of pure boron material well-acknowledged previously, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin and others.

Magneto method Moving coil method
Impedance 4 ohm
Appropriate stylus pressure 2.0 g
Output voltage 0.28 mV (1 kHz, 50 mm/s, Horizontal direction)
Compliance 8.0x10(e-6) cm/dyne
Playable frequency range 10Hz to 30kHz
Separation 30 dB or more (1 kHz)
Channel balance 1 dB or less (1 kHz)
Mass of body 11.1 g
Stylus chip Diamond(Line contact; Curvature: 0.03 x 0.003 mm)
