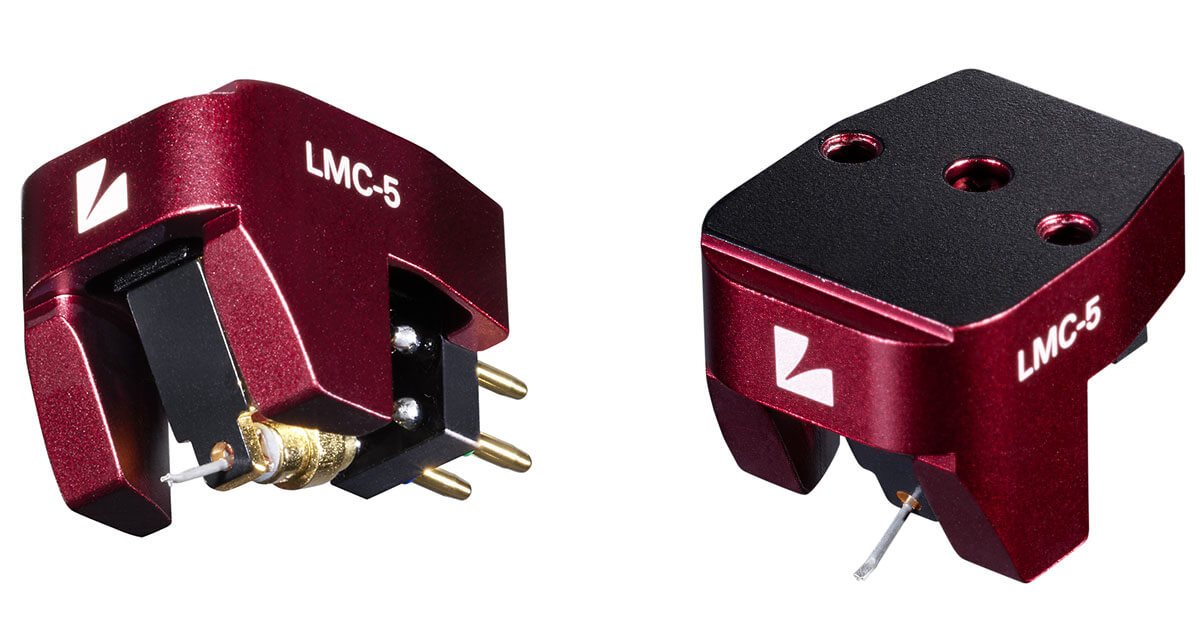

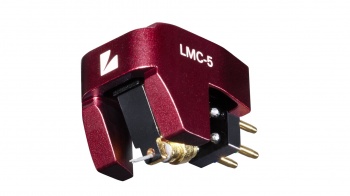

Luxman LMC-5 MC Phono Cartridge
Zoom  Zoom
 Luxman LMC-5 MC Phono CartridgeLuxman LMC-5 MC Phono Cartridge

Luxman LMC-5 MC Phono Cartridge

March 22 . Excellent review. Please click here to read the full page

£2,000.00
£1,666.67 Exc. VAT |


|

Luxman LMC-5 MC Phono Cartridge

Luxman LMC-5 MC Phono Cartridge is a moving coil cartridge designed to deliver an accurate and precise reading of your records, with low distortion levels and low noise. The first cartridge design for 40 years, Luxman's LMC-5 showcases some of the finest cartridge design Luxman have to offer.

Why Luxman LMC-5?

Luxman's LMC-5 phono cartridge is the brand's first cartridge design for almost 40 years, and they've utilised all their knowledge and technology, found throughout the years, to make a grand resurgence to the cartridge world. Their last cartridges to be released were the LMC-1 in 1981 and the LMC-2 in 1982.

LMC-5 Design

Luxman's LMC-5 cartridge has been developed to achieve a precise and accurate reading, with the ability to pick up even the subtlest information engraved in the record. Luxman achieved this by using high quality materials and implementing some of their finest cartridge design techniques to ensure an accurate performance.

Such cartridge techniques include a linear energy generation engine, a carefully crafted alumite body for movement support, an outer wall to protect the cantilever and a chassis with inverted oval curves to reduce reflections and resonance.

Stylus Design

The LMC-5 uses a Shibata needle, which has a low audible noise, and is connected to an aluminium cantilever to achieve a neutral tone. It delivers a sound with low distortion, reduced cross-channel sensitivity and an accurate reading of your records.







Spec

Type MC (MOVING COIL)
Internal impedance 4.7Ω (1kHz)
Tracking force 2.1 to 2.3g (2.2g as standard)
Output voltage 0.4mV (1kHz, 3.54cm / sec.)
Frequency response 10Hz to 35kHz
Channel separation / balance 28dB (1kHz) / 0.5dB (1kHz)
Recommended load impedance
(when head amplifier is connected)
40Ω or more
Recommended load impedance
(When step-up transformer is connected)
2.5 to 10Ω


Be the first to Write a Review for this item!
