Van den Hul Magnum Hybrid Speaker Cable Unterminated
Zoom  Zoom

Van den Hul Magnum Hybrid Speaker Cable Unterminated

£50.00 Exc. VAT |


Van den Hul Magnum Hybrid Speaker Cable

Please enter the amount of meters required in the quantity box when ordering

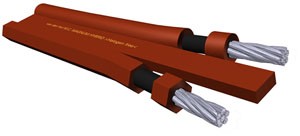

This very attractive dark-red coloured mat finished twin-lead speaker cable is designed to produce the best transfer quality at an affordable price.
Each lead consists of 483 x 0.15 mm. high purity Matched Crystal (MC) OFC strands with a dense and very pure silver coating.
The resistance per lead is just: 0.21 Ohm/100 meter.
The metal cross-section area for each conductor is: 8.54 mm², equalling AWG 8.
The capacitance between the 2 leads is a nice and low 27 pF/meter.
Covering the 2 conductors you will find an extra Linear Structured Carbon ® saturated layer.
This layer dramatically improves the sonic qualities of The MAGNUM HYBRID.
The cable jacket is made of our HULLIFLEX ® 5, a very flexible and mechanically superb insulation material.
The plus and minus leads are different in jacket shape with gold coloured printing in the flat middle-section. Both properties are easy polarity finders.
Type printing at 25 cm. (10") distance makes cutting of specified lengths very easy.


Cable Type: Twin conductor
Conductor Material: HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s)
Design Purpose/
Application Area(s):
Loudspeaker cable
Eff. Conductor Ø/Eq. AWG No./Strands: 2x(8.54 mm² / ~AWG 8 / 483)
External Diameter /
27.0 mm. wide; 7.5 mm. thick
Resistance 20 °C / 68 °F: 0.21 Ohm/100 m.
Capacitance: 27 pF/m.
Insulation / Dielectric Strength / Test Voltage: HULLIFLEX ® 5 / 300 Vrms min.
Connector Types Suitable: Our 6.5 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 8.3 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on ordered lengths.
