Van den Hul MCS 150M Internal Rewire Cable 0.5m Single Cable



This is the very flexible 7 strand version of the MCS - 150 S.
The MCS - 150 M consists of 7 individually insulated very pure Matched Crystal Silver strands each 80 micron in diameter incl. insulation.
Being less susceptible to bending damage, its thinner extruded strands give this multistrand version even a better sound quality compared to the MCS - 150 S.

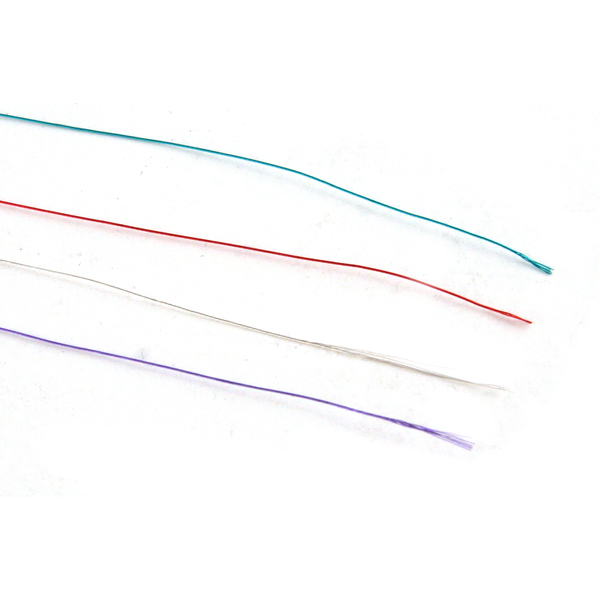

The transparent and directly solderable coating is available in 4 colours: white, blue, red and green.
The external diameter is 250 micron.
The insulation acts as a flux during the soldering.
The maximum mechanical tension the MCS - 150 M can handle is 36 gram. The maximum temperature handling is 180 °C (= 356 °F).
Typical application of the MCS - 150 M is tone-arm wire of the finest quality.
Twisting 4 lengths of The MCS - 150 M together (with clockwise conductor wiring +-+- = starquad) will produce one of the finest interconnects you can think of.
Also as internal wiring in pre and power amplifiers, the MCS - 150 M is the best choice.
The sound character is extremely smooth with a lot of very fine detail. Typically a non metallic sound.
Available in any specified length starting from 1 metre.
Packing: Depending on ordered length or weight.



Cable Type: Single wire, multistrand


Conductor Material: High purity dense Matched Crystal Silver


Design Purpose/Application Area(s): Tone-arm wiring; Internal (pre-)amplifier (re-)wiring; DIY interconnects


Eff. Conductor Ø/Eq. AWG No./Strands: 0.0175 mm² / AWG 34.6 / 7


External Diameter /-Dimensions: 0.25 mm.


Resistance 20 °C / 68 °F: 90.7 Ohm/100 m.


Insulation / Dielectric Strength / Test Voltage: Nylon-Polyurethane / 100 Vrms min.


Standard Sales Units / -Lengths: Available in any specified length starting from 1 metre


Jacket Colours Available: Red, Green, Blue and White


Remarks: Direct solderable; Stripping is not required; The insulation works as a solder flux
