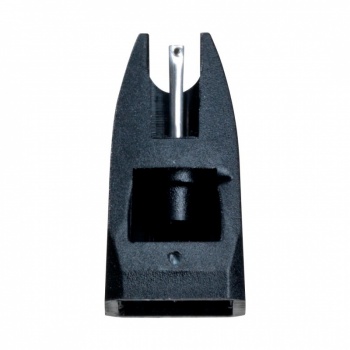

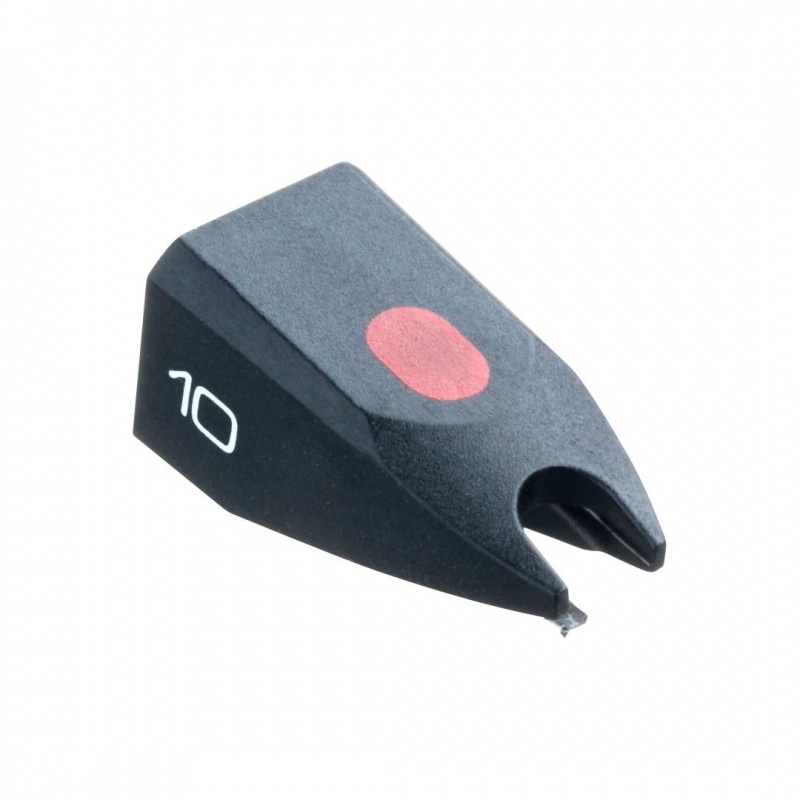

Ortofon Stylus 10 Replacement Stylus For OM Cartridges
Upgrade stylus for Pro-Ject Debut 2/3/E/USB/Phono SB and many more.
All the OM series styli are interchangeable allowing for an easy performance upgrade.
Replacement stylus, recommended for the following cartridge models:
Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Technical data:
- Frequency range - 20-24.000 Hz
- Frequency response - 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force *) - 70 µm
- Compliance, dynamic, lateral - 25 µm/mN
- Stylus type - Elliptical
- Stylus tip radius r/R - 8/18 µm
- Equivalent stylus tip mass - 0,5 mg
- Tracking force range - 1,25-1,75 g (12,5-17,5 mN)
- Tracking force, recommended - 1,5 g (15 mN)
- Tracking angle - 20°
- Stylus colour - Black
