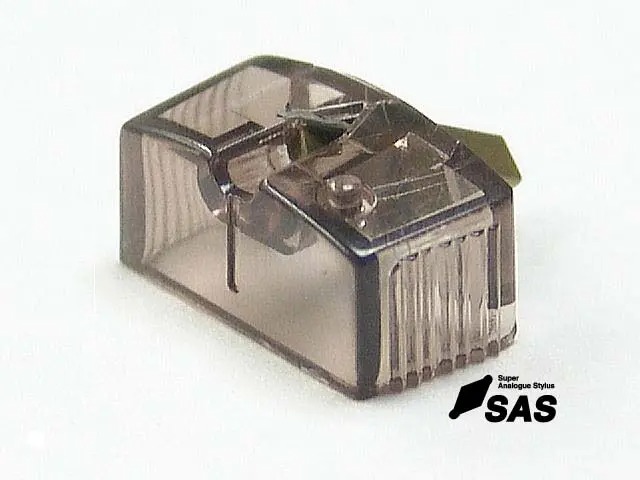

Super Analog Stylus (SAS) Profile Tip
The tip of the is carefully chosen from single-crystal natural diamonds. The laser-cut diamond closely resembles that of the cutting stylus used on a cutting lathe to produce the acetate master disks used in vinyl production. This allows the SAS tip to reach into the deepest recesses of the record groove in order to retrieve details which were previously inaccessible to other stylus profiles. Due to its wide contact area with the groove wall, the SAS can reproduce a more expansive bandwidth of information with higher fidelity.
Cantilever
is one of the most suitable materials for cantilevers. its density is low, Young’s modulus is large, and the speed of sound propagation is approximately 2.6 times faster than that of aluminum. Due to the characteristics above, boron cantilever can more precisely trace the information contained in the record grooves than aluminum cantilever.
Additional information
Cantilever
Boron
Cartridge number
XL35E, XL45E
Color
TR / BROWN
Tip
Super Analog Stylus
Tracking Force
1.0 – 1.5 g
