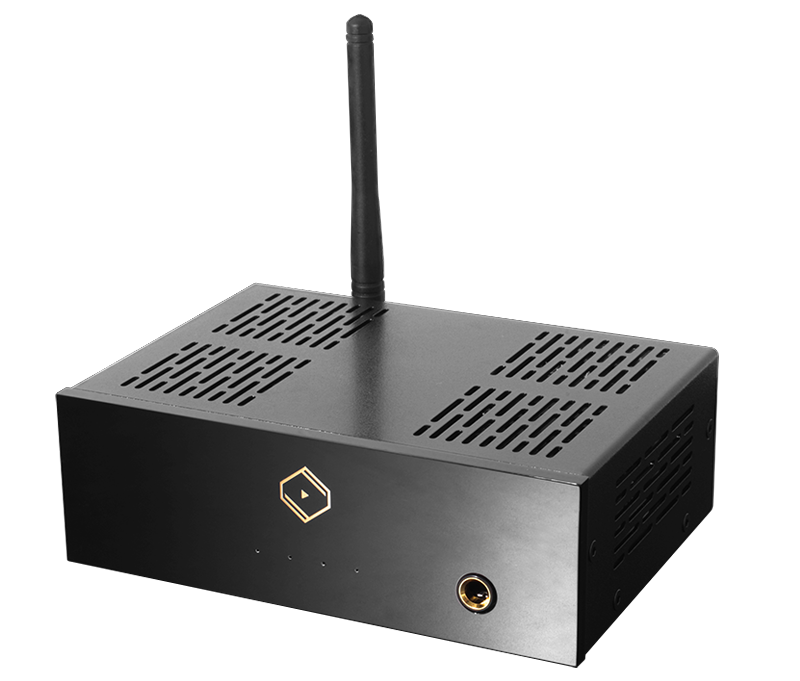

Silent Angel Bremen B1 Network Music Streamer
Network Music Streamer for HiFi Entry. Enjoy Hi-Res Streaming Music Easily
A compact and feature-rich network streamer designed for music lovers who want to obtain more audio sources, but also want to enjoy better sound quality. The B1’s hardware and software are optimized for Hi-Res streaming applications by improving many details without compromise. An ideal option to open the door to the Hi-Res audio world.
Easy to Use, Pleasant User Experience
Deploy by either wired Ethernet or WiFi. Flexibly place it anywhere.
Simply connect to any stereo amplifier, DAC or speaker(s).
Manage and play by mobile app, VitOS Lite.
Supports Bluetooth 4.2. Conveniently play music from your smartphone or tablet.
Supported applications include Tidal Connect, Qobuz, Spotify Connect, Amazon Music, Deezer, Napster, Tune-in radio, Sound Machine, and play music files from network shared storage via DLNA.

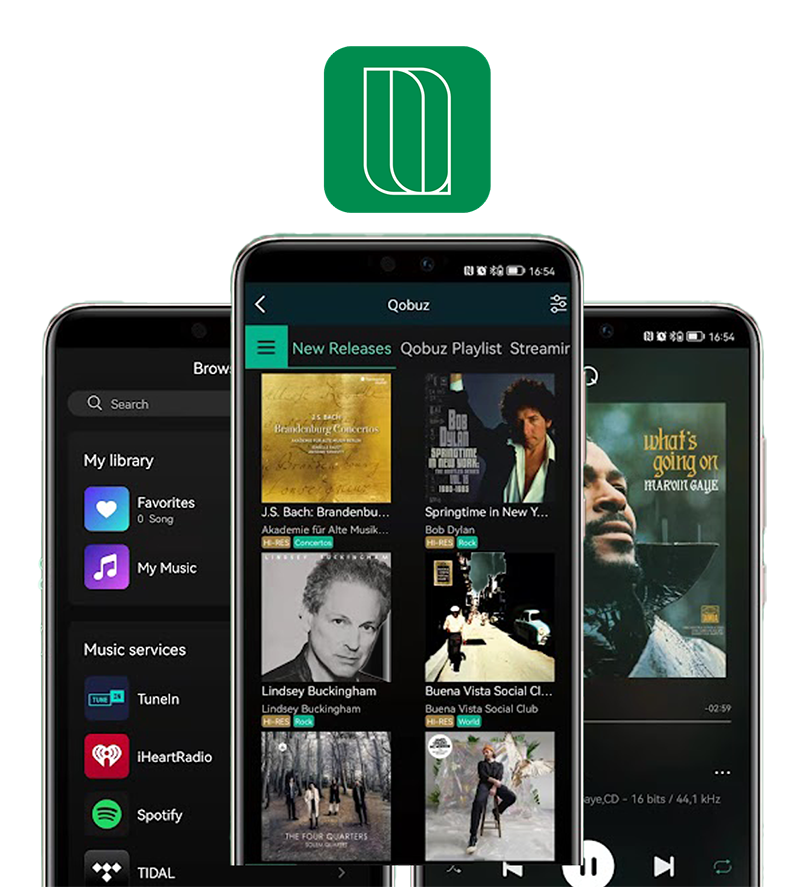

Mobile App, VitOS Lite
Easily browse, manage, stream and enjoy your favorite music and streaming services.

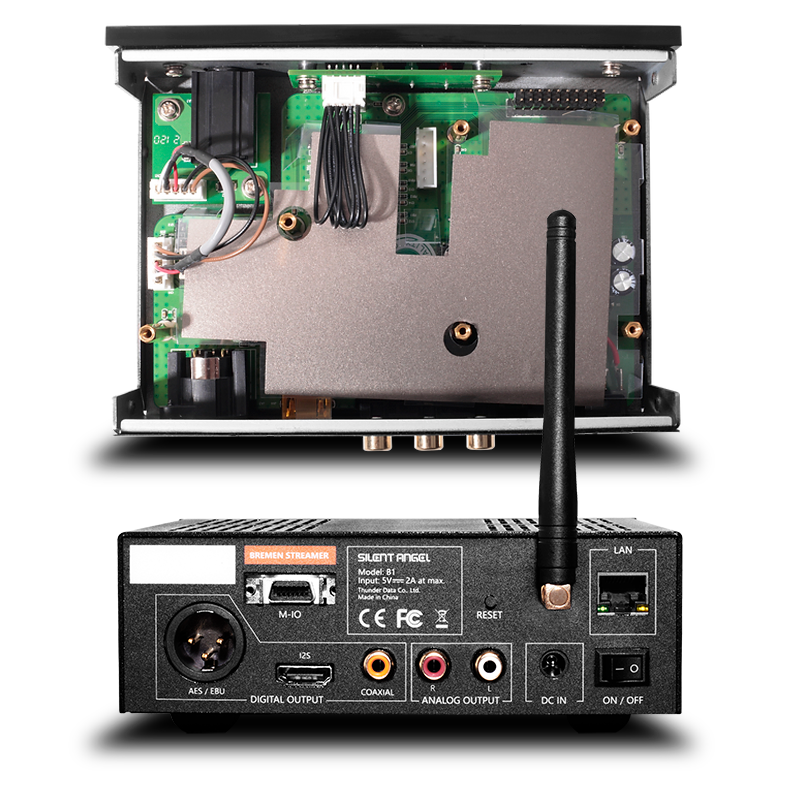

Quality Hardware System
The B1 is born to pursue HiFi-level audio performance without any compromise.
Elegant metal enclosure
2-core 1.2GHz ARM Cortex-A7 CPU
Advanced circuitry with high quality components
Highly permeable EMI absorber to reduce electrical interference
Gold plated audio output ports (RCA L/R, 6.35mm headphone jack, and Coaxial & AES/EBU)
Digital output: AES/EBU, I2S, Coaxial for external DAC
Analog output: RCA (L+R) for any amplifier or active speaker(s)
WiFi 802.11 a/b/g/n 2.4GHz (client mode) for ease of deployment

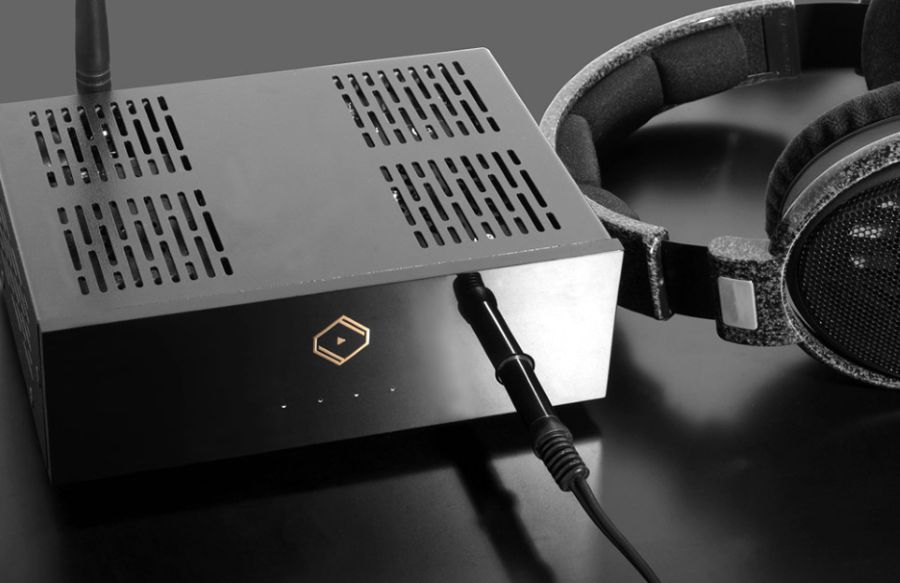

Enjoy by Connecting Headphones
The B1 integrates a HiFi headphone Amp with a 6.35mm headphone jack on the front–delivering quality music with no PC involved.
|Available Color ||Black |
|Power Input ||(DC) 5V/2A at max |
|Power Consumption ||10W at max |
|Headphone Jack ||6.35 mm headphone jack |
- 1mW, THD+N : 0.0035%
- MAX : 375mW THD+N : 0.002%
- Max : 27.5mW, THD+N : 0.0015%
|Digital Outputs ||AES/EBU port x 1 |
I2S port x 1
Coxial port x 1
- Supports up to PCM 192KHz
|Analog Output ||RCA (L+R) |
- 2Vrms THD+N : 0.00134 / 0.00164%
- Frequency response : 20Hz ~20KHz+- 0.5dB
- SNR : 108dB
|M-IO ||M-IO port x 1 for peripheral access |
|Ethernet ||100Mbps RJ45 x 1 |
- works well with high-performance NAS(Network Attached Storage)
- connecting to Gigabit LAN port of a router or audio switch
|Wireless Connection ||Wi-Fi 802.11 a/b/g/n 2.4GHz |
|LED Indicator ||Mute LED x 1 (Red) |
Power LED x 1 (Green)
System Status LED x 1 (Amber)
- Fast blinking: System is booting.
- Slow blinking : Connecting to Wi-Fi, Bluetooth, or Ethernet.
- Static on: Successfully connected.
Playing and Bluetooth Status LED x 1 (Green)
- Static on: Playing music
- Slow blinking: Choosing to connect by Bluetooth, and it's connecting
- No light: Successfully connected
|Temperature ||Operating: 32 ~ 86 °F |
Storage: -4 ~ 158 °F
|Humidity ||Operating: 10% ~ 90% RH (non-condensing) |
Storage: 5% ~ 95% RH (non-condensing)
|Dimensions ||6.11(W) inch x 1.99(H) inch x 4.34(D) inch |
155(W) mm x 50.4(H) mm x 110(D) mm
|Weight ||1.99 lbs / 0.9 kg |
