Silent Angel Bonn N8 Pro network switch is an advanced unit with a built-in high-quality Radar Grade power module and EMI absorber.
Silent Angel claims that by adopting a Radar Grade power module, a highly efficient DC/DC converter and a low-rippled LDO regulator circuit on the power board, the Bonn N8 Pro presents a low 28mV(Vp-p) power signal when compared to many regular switches that present at 122mV(Vp-p). One of Silent Angel’s signature features, a high-permeability EMI absorber, is embedded in the power board with the aim of diminishing electronic noise (ranges from 1M to 18GHz).
There are two models available, the N8 PRO-CLK with a 10MHz external World Clock input*, and the N8 PRO without the input. With a 0.1ppm with high thermal stability, the advanced model Bonn N8 Pro-CLK uses a BNC interface 10MHz world clock input that further synchronises the clock signals.
Enhanced with interference-reduction and clock-precision techniques, the Bonn N8 Pro is dedicated to optimising sensitive high-frequency audio system networks. Cable organisation also becomes easier thanks to the widened 5mm space between each of the eight 1um-gold plated GbE ports, allowing better signal and usability.
Radar Grade Power Module
Sporting a high efficiency DC/DC converter and a low-rippled LDO regulator circuit on the power board, the Bonn N8 Pro presents a low 28mV(Vp-p) power signal when compared to regular switches who present at 122mV(Vp-p).
Power Input: IEC (AC) 100-240V, 50/60Hz (DC) 12V/0.8A at max
Power Consumption: 10 Watt at max
Ethernet Port: Pure gold-plated 1GbE RJ45 port x 8

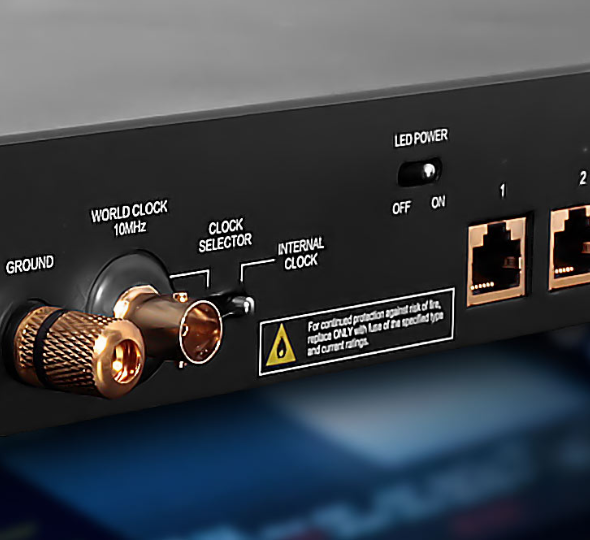

Interface: Clock input switch x 1 (external/internal)
– BNC interface 10MHz external World Clock
– Silent Angle specialized TCXO clock module
LED indicator switch x 1
Grounding Port x 1
LED Indicator: Power LED (Green) x 1 at the front panel
Port Status LED x 8 (Light on when linked; Flash when it’s active at the rear panel)
Green: 1000Mbps; Amber: 100Mbps
Temperature: Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F
Humidity: Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
Dimensions: 17.37 (W) inch x 2.05 (H) inch x 6.89 (D) inch
Weight: 5.74 lbs
