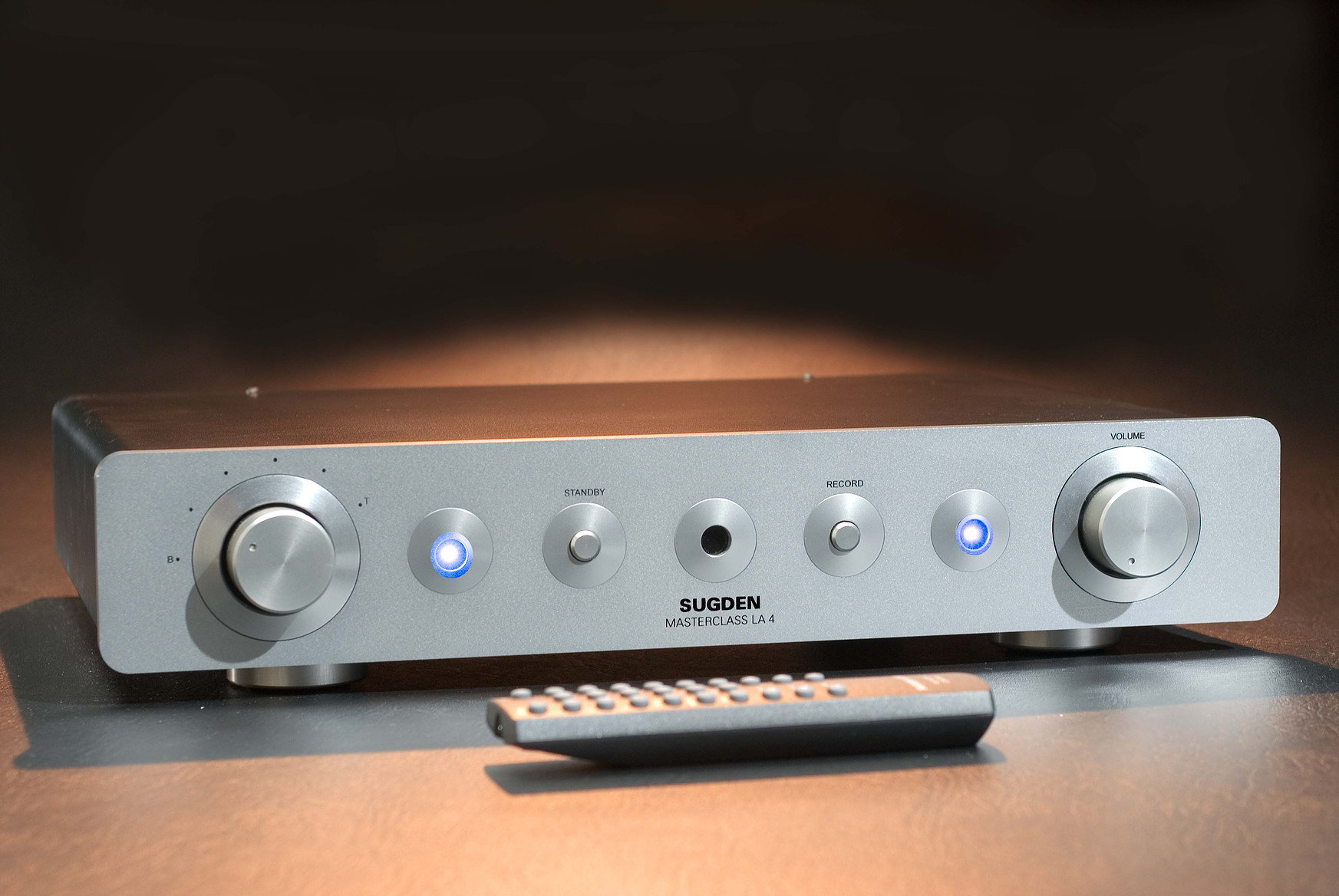

Sugden Masterclass LA-4 Line Pre Amplifier
Zoom  Zoom

Sugden Masterclass LA-4 Line Pre Amplifier

£3,766.67 Exc. VAT |  |

Sugden Masterclass LA-4 Line Pre Amplifier

A high quality active pre-amplifier featuring a host of inputs and outputs from the Sugden Audio line. The LA-4 makes a perfect combo with either the Masterclass or Sapphire power amplifiers. High-end touches include gold plated circuit boards, relay switching of all inputs and output and a sophisticated class A output stage. The LA-4 is a high gain amplifier that provides an iron fist of control over any power amplifier.  The electronic circuitry has been developed to offer the best possible sonic performance without compromise including the use of specially selected transistors and capacitors to provide the best signal preservation.  The gain stages are each powered by current shunt differential power supplies, which enable the fastest transients and most powerful crescendos with true musical empathy.

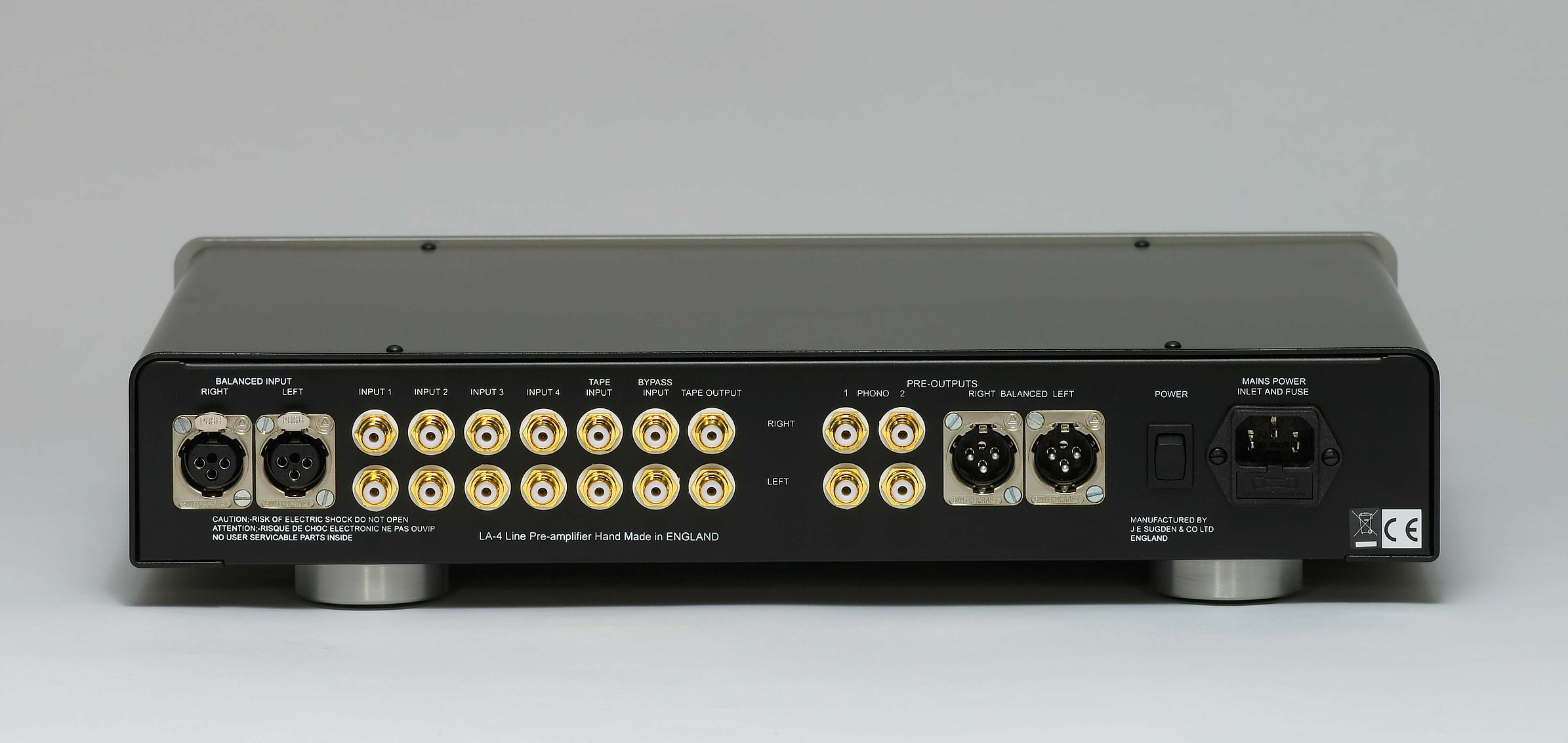

Inputs: Four line level inputs, one tape, one balanced, bypass input

Outputs: Fixed line level, fixed tape, balanced output

Volume Control: Motorised, RC5 handset compatible

Recording: Tape out defeat

Input Sensitivity: 100mV for 1 Volt out

Maximum Output: 10 Volts

Frequency Response: +/-1dB 15Hz-30kHz

Bandwidth: 6Hz-300kHz

Signal to Noise Ratio: >90dB

Distortion: <0.006% @ 1kHz, 1 Volt Out

Gross Weight (Packed): 7kgs

Dimensions: 75mm x 430mm x 350mm

The manufacturer reserves the right to change specifications without notice.
