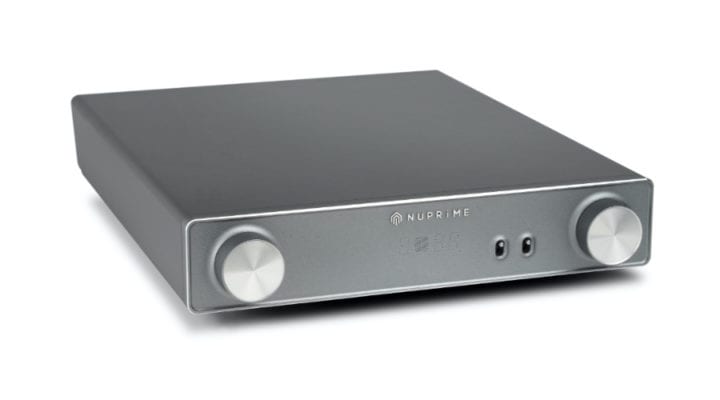

NuPrime Audio AMG PRA Pre Amplifier
Zoom  Zoom
NuPrime Audio AMG PRA Pre AmplifierNuPrime Audio AMG PRA Pre AmplifierNuPrime Audio AMG PRA Pre AmplifierNuPrime Audio AMG PRA Pre Amplifier

NuPrime Audio AMG PRA Pre Amplifier

£1,595.00
£1,329.17 Exc. VAT |


|


NuPrime Audio AMG PRA Pre Amplifier

The AMG PRA went beyond being a transparent preamp with 1M Ohm input impedance and the best analog source inputs. A user-selectable 4 stage “Active Low Frequency and Harmonic Gain” control gave it distinctive characteristics to enhance the speaker performance, a world-first in preamp design.

The AMG series front panel embodies its spirit. It is milled from a 15mm harden aerospace aluminum alloy using a four-axis CNC machine with a diamond cutter through a 48 steps process. Design elements such as the 3D “floating” logo, the curved surface around the front panel switch, and diamond-cut edge bring the quality of ultra-high-end audio products to the affordable range of the AMG series.

The design goal for AMG PRA was to deliver a transparent sounding analog preamp with its distinctive characteristics. Several new design concepts were developed and used in the AMG-PRE besides 1MΩ input impedance to achieve the best analog inputs.

Users of smallish speakers would often detect a distinct drop in bass response with some audio tracks. Instead of a simple “Bass Boost” function that lifts a targeted low-frequency band, a user-selectable 4 stage “Active Low Frequency and Harmonic Gain” control compensates for the lack of bass presence. It achieves some bass extension and a more natural roll-off.

Additional features such as the 2 stage gain control and invertible phase control increase the compatibility of the AMG-PRA with other power amplifiers.

Technical Details

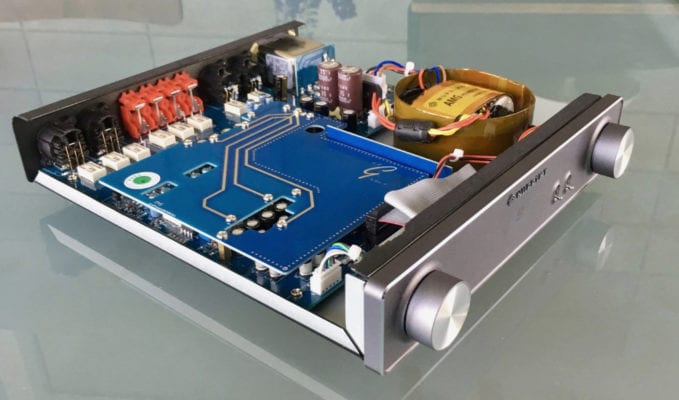

The layout of the AMG-PRA takes excellent care in isolating the sensitive audio signals from the power circuitry. The power circuitry comprising of a star topology power and ground layers is built on one board while a separate board houses the pre-amplification circuit. An isolation layer separates these two boards, which further minimizes interference. The effect is a highly transparent sound that is natural and not over etched.

MUSES72320 Digital Volume Control

ONE MEGA ultra-wide bandwidth low noise JFET, single-ended Class A input design and MUSES8920 Op-amp produce harmonics similar to vacuum tube amps, which has a “warm, airy and velvety” sound characteristic.

Non-feedback low-frequency domain Frequency Harmonic Modulation circuit provides minimum phase distortion and tone error.

Inputs and outputs are fully balanced design.

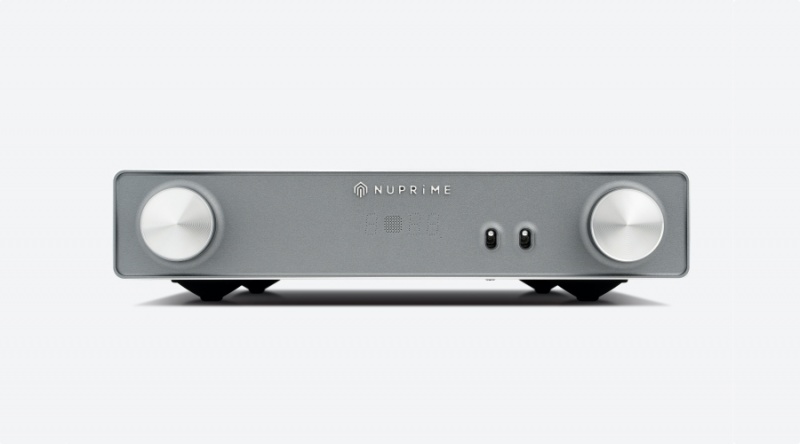

Front Panel Settings

Left Toggle Switch: Output Gain

  • Upwards : High Gain
  • Downwards : Low Gain

Right Toggle Switch: Output Phase

  • Upwards : Phase Invert
  • Downwards : Phase Normal

Left knob: Loudness Compensation

  • Turn the knob to switch between Loudness Compensation

Right Knob: Power and Input Selector and Volumes

  • Briefly press for 3 sec to On/Off standby mode
  • Brief press to Input Selector
  • Turn the knob to adjust volume

Amplifier

  • Power: 150W @ 8 ohms; 200W @ 4 ohms (both channels driven)
  • THD:
    • <0.02% (AUX IN, 1W, @ 8 & 4 ohms)
    • <0.01% (OPT IN, 1W, @ 8 & 4 ohms)
  • Signal-to-Noise Ratio: >95 dB (Digital input, 10W out @ 8 ohms)
  • Clipping Power: >230W (1kHz @ 4 ohms, both channels driven)
  • Frequency Response: +0.6 dB/-1dB (12 Hz – 22 kHz)
  • Channel Separation: >85dB (1 kHz AUX); >105 dB (10 kHz Digital)
  • Input Sensitivity:
    • 0.85V (AUX & OPT) for 100W @ 8 ohms
    • 0.75V (AUX & OPT) for 100W @ 4 ohms
  • Standby Power: <0.5W

DAC & Wireless

  • Bit Depths: 16-32 bit
  • Streaming Audio Processing Engine: up to 192KHz / 24-bit
  • IIS/DSD HDMI Input: PCM up to 768KHz/32Bit and DSD up to DSD256
  • USB PCM/DSD Input: PCM up to 384kHz/32Bit and DSD up to DSD256
  • Optical S/PDIF Input: PCM up to 192KHz and supporting DoP format DSD64
  • Optical, Coaxial and analog Pre-Out
  • MQA*
  • Bluetooth: Two-Way (Receive and Headphone modes)
  • Network Connectivity: Gigabit Ethernet RJ45, 802.11 b/g/n Wi-Fi
  • Streaming Services: Amazon Music, Deezer, iHeartRadio, Qobuz, QQ Music, Spotify, TIDAL, TuneIn, Napster, Ximalaya

Dimension and Weight

  • Product Dimensions (W x H x D): 280 x 55 x 250 mm (includes feet and extended rear panel terminals)
  • Product Weight: 3 kg (6.6 lbs.)
  • Package Dimensions (W x H x D): 440 x 100 x 340 mm
  • Shipping Weight: 5 kg (11 lbs.)

MQA might be available at a later date through over-the-air firmware update.
Airplay 2 when available, would require additional hardware upgrade cost.

All specs are measured according to IHF 202 CEA 490-AR-2008 standard. THD is measured using AP AUX 0025 passive filter and AES 17 active filter.
