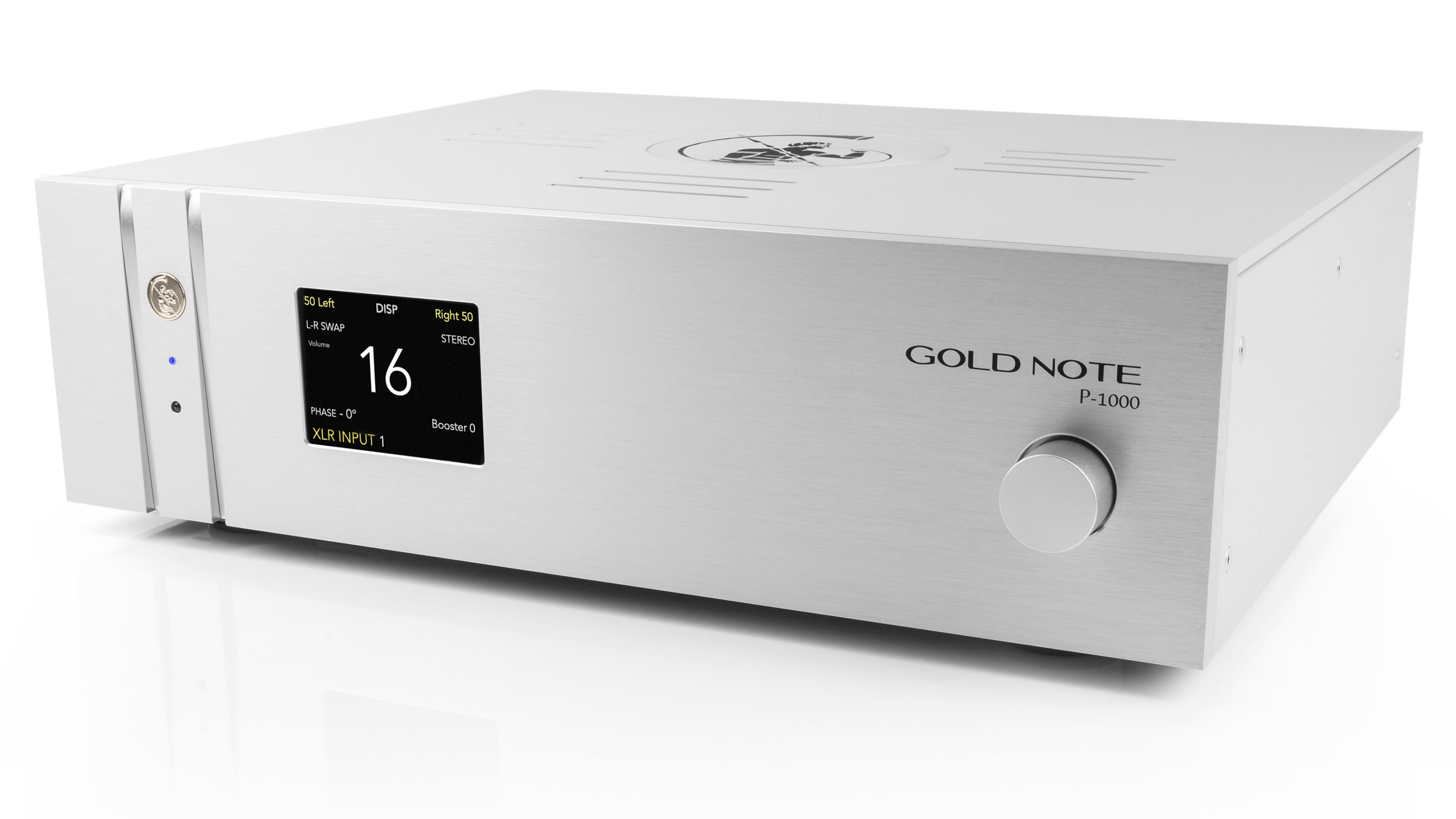

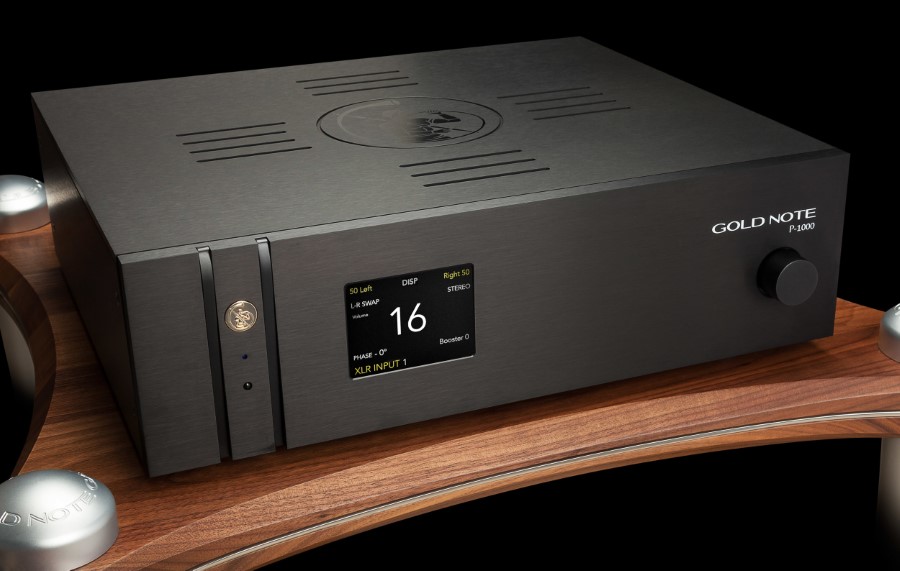

Gold Note P-1000 Line Pre Amplifier

Total control over your High End system

Designed for high end audio systems, P-1000 is an innovative Class-A line preamplifier powered by a new proprietary Six Gain Stage design and with Relays volume control for real music lovers.

Completing the 1000 line of electronics, P-1000 is powered by a Triple Linear Transformer power supply and features 10 independent stereo inputs: 5 fully balanced XLR and 5 RCA + 1 optional digital input available on demand.

P-1000 belongs to a new era of electronics where performance is combined with technology to offer the best possible musical experience and it's easy to control with a large colour display showing all possible functions: it's as easy as it gets, all the settings can be found on the display allowing quick and precise fine adjustments.

The P-1000 performs the exclusive Gold Note Ultra-Balanced technology featuring Six Single Gain stages enables incredible low distortion and extended linear bandwidth for true superior musicality.

To perfectly reproduce old recordings, the preamp can be set to Mono/Stereo, it also allows the Left/Right channel swap to allow the reproduction of inverted recordings as well as it can swap the absolute phase from 0° to 180°.

The preamp features our proprietary BOOSTER technology to drive speakers that require robust power supplies providing greater energy in a very specific range of low frequencies (BOOSTER is completely by-passed when set as OFF).

For ultimate performances the P-1000 can be enhanced with the external dedicated tube output stages TUBE-1006/1012 and the inductive super power supply unit PSU-1000/1250.

The preamplifier can be updated with a computer through its rear USB port.

MODERN HIGH-END AUDIO PREAMPLIFIER

P-1000 is an ultra balanced Class-A line preamplifier featuring super low distortion Relays Volume control.

10 independent inputs

P-1000 features 10 independent stereo inputs: 5 balanced XLR, 5 RCA + 1 digital input available on demand.

ULTRA-BALANCED SIX GAIN STAGES DESIGN

The exclusive Six Single Gain stage combined with our Ultra-Balanced design allows ultra low distortion and incredible linear bandwidth extension for superior musicality.

FINE CONTROL & functions

P-1000 stores in memory settings and volume levels for every single audio input to allow a better experience and quick adjustments. It also features a large amount of functions: Mono/Stereo, Left/Right channel swap, Absolute Phase Swap, Over-boost, fine Balance tuning.

technical specifications

Dimensions: 430mm L x 130mm H x 375mm D
Total weight: 11 Kg
Frequency response: 2Hz-200kHz @ +/-3dB
THD – Total Harmonic Distortion: <0.001% @ 1kHz
Gain: +20dB – 10V
Signal to Noise ratio: -120dB
Channel Separation: >118dB
Volume: 100 steps
Stereo/Mono: Selectable
Absolute Phase: 0°/180°
Channel Left/Right Swap: Selectable
Overboost: adjustable 3 position (by-passable)

POWER

Main supply: 100/115/230V, 50/60Hz, depending on market destination and not convertible
Power supply: Dual Mono Ultra Linear triple transformer (one dedicated transformer for the system functions)
Power consumption: 30W max

AUDIO OUTPUTS

XLR balanced
RCA unbalanced
Output Level: 16Vrms on XLR & 8Vrms on RCA max.
Output Impedance: <10Ω

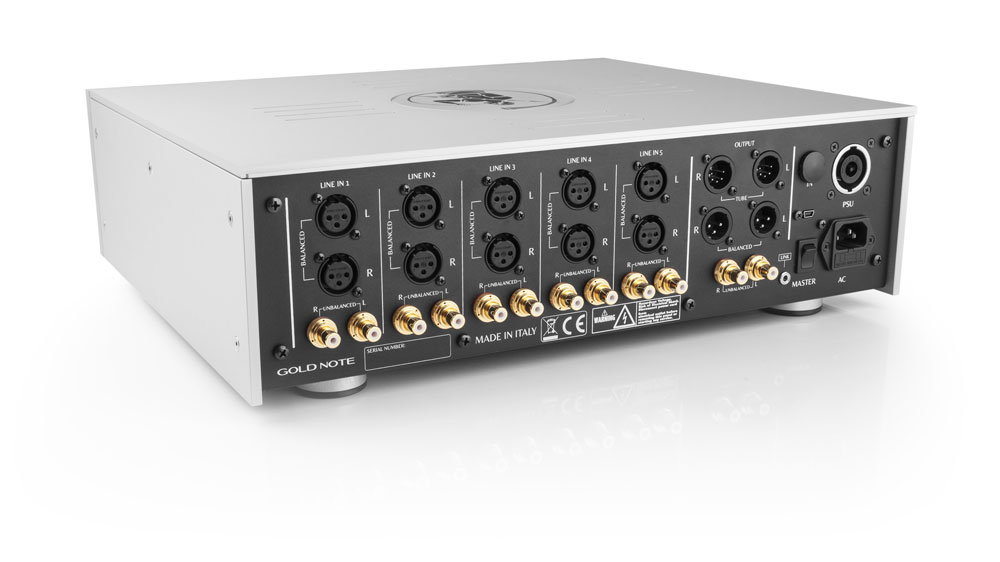

AUDIO INPUTS

Analogue Input: 5 stereo XLR balanced & 5 Stereo RCA unbalanced
Digital Input (optional): TOS or Coax 24/192kHz
Input Level: 10Vrms on RCA
Input Impedance: 100kΩ
