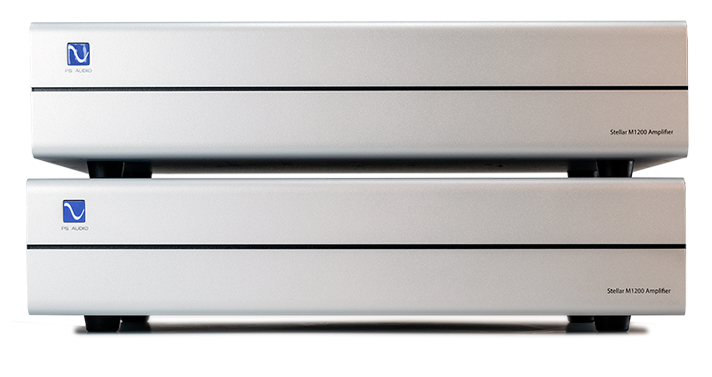

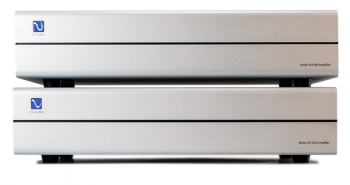

PS Audio Stellar M1200 Mono Amplifiers (Pair)
Zoom  Zoom
 PS Audio Stellar M1200 Mono Amplifiers (Pair)PS Audio Stellar M1200 Mono Amplifiers (Pair)

PS Audio Stellar M1200 Mono Amplifiers (Pair)

£5,995.00
£4,995.83 Exc. VAT |


|

PS Audio Stellar M1200 Mono Amplifiers (Pair)

  • Price is for a pair

The M1200 began as the dream project of PS engineer, Darren Myers who wanted to build a power amplifier without bounds or compression on even the loudest of musical passages, yet equally at home reproducing the subtlest of details.

To preserve both uncompressed dynamics as well as the tiniest of nuanced details requires a cost-no-object input stage, like that of a high-performance vacuum tube fed from its own analog power supply. The amp’s delicate input signals, now faithfully preserved by its vacuum tube input, then need to be amplified without restriction by taking advantage of a new type of Class D output power module. This extraordinarily high current, low distortion, MOSFET output stage combines state-of-the-art topologies with decades of design and listening experience to produce what we believe is the most musically satisfying amplifier of its kind.

The over-the-top high power output of the M1200 exists not to match a small handful of power-hungry speakers, but rather, to act as the perfect uncompressed power source for even the smallest, most efficient of speakers on the market.

Remember, power amplifiers deliver only the number of watts required by your speaker to achieve the desired loudness. Even the most powerful amplifiers deliver only what’s asked of them. What’s been missing in most amplifiers is adequate headroom and effortless linear performance—something only a vacuum tube-based powerhouse like the M1200 can unquestionably provide. From the most subtle of details to unheard of explosive dynamics, Stellar M1200 represents the pinnacle of high powered musicality that must be heard to be believed. Regardless of the power demands—or power limitations—of your loudspeakers, Stellar M1200 is the perfect choice if effortless musicality is in your future.

Features:

  • Mono power amplifier pair
  • Zero-loss Vacuum tube input stage
  • Powerful MOSFET balanced output stage
  • RCA Single ended input
  • XLR “true” balanced input
  • 600 watts into 8Ω
  • 1200 watts rms into 4Ω
  • 2Ω stable
  • Damping factor >1100 for excellent loudspeaker control
  • Efficient operation with very little heat
  • ICE Edge technology
  • Front panel standby button
  • Efficient operation with very little heat
  • Dual, solid copper, plated, output binding posts
  • 27 pounds each
  • Input 12 volt trigger

Stellar M1200 Mono Amplifier


Unit Weight 27 lbs [12.2 kg] (each)
Unit Dimensions 17”W x 3.75”H x 12”D (13"D w/connectors)
17”W x 7.5”H x 12”D (Stacked)

Shipping Weight 29 lbs [13.15 kg] (each)
Shipping Dimensions 22”W x 8”H x 17”D (each)
Color Options Black
Silver
Vacuum tube type 12AU7
Voltage Options
(Factory set only)
Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V
Mains Power Inputs IEC C14
Idle Power Consumption 27W
Power Factor >0.9 @ rated power 4Ω
Accessories Included US (NEMA 5-15P) (all versions)
Schuko (CEE7/7) (230V version)
UK (BS 1363) (230V version)
Audio Inputs RCA (Unbalanced)
XLR (Balanced)
Speaker Outputs Copper base nickel plated binding posts (2 pair)
DC Trigger Input 3.5mm 5-15VDC
Warranty 3 years parts and labor

Signal


Gain 30.5dB +/-0.5dB
Sensitivity for rated output power 2.08V
Signal to Noise 1kHz@1200 Watts > 112dB
Input impedance Unbalanced 50KΩ
Balanced 100KΩ
Output Impedance 50Hz, 2.8VRMS <0.007Ω
Damping factor 50Hz. 2.8VRMS
8Ω >1100
4Ω >550
Frequency Response 2.8VRMS into 4Ω
10Hz – 20KHz +/- 0.5dB
10Hz – 45KHz +0.1/-3.0dB

THD&IM


1KHz, 1W/4Ω < 0.005%
10-20KHz, 1W/4Ω < 0.01%
1KHz, 150W/4Ω < 0.02%

Output Power

120vac mains, 1kHz, 1% THD
8Ω 600W minimum
4Ω 1200W minimum
2Ω Stable for musical transients
