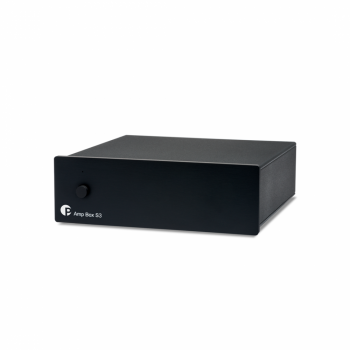

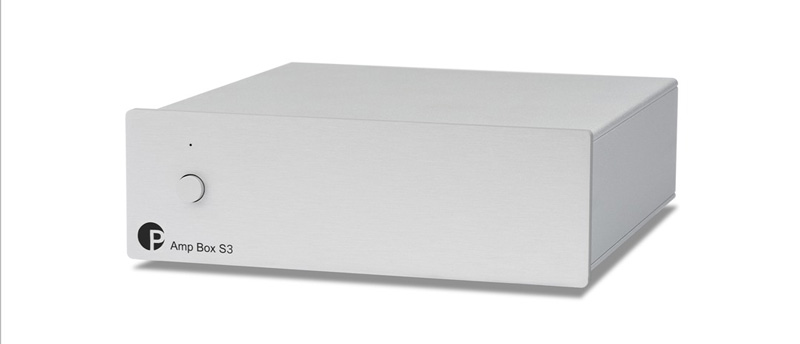

Pro-Ject Amp Box S3 Stereo Power Amplifier
Zoom  Zoom
 Pro-Ject Amp Box S3 Stereo Power AmplifierPro-Ject Amp Box S3 Stereo Power Amplifier

Pro-Ject Amp Box S3 Stereo Power Amplifier

£269.00
£224.17 Exc. VAT |


|


Pro-Ject Amp Box S3 Stereo Power Amplifier

Brand new PCB concept and sophisticated topology
Micro-sized footprint and casework for true flexibility in placement
Improved S/N ratio with lower distortion for a more

The Amp Box S3 is an efficient, yet powerful, compact power amplifier with true stereo hi-fi credibility. Thanks to its clever internal design it delivers a warm, inviting musical performance with the sonic characteristics of a tube amplifier.

The Amp Box S3 boasts a new PCB concept and sophisticated topology in order to achieve less distortion and a better signal to noise ratio. This audio-focused internal design is also highly efficient, with very little wasted energy. It also brings you a rich and musical sound with a touch of analogue warmth, inspired by the sonic traits of more costly valve amplifiers. By squeezing this clever technology into a deceptively small footprint, the amplifier is suited to a variety of applications.

Ideally suited to room sizes up-to 15m2, depending on the matched speakers, the Amp Box S3 can be useful for nearfield hi-fi systems, powering in-wall or in-ceiling speakers, or for enhancing the performance of existing hi-fi and home cinema systems. With one stereo RCA input, a jack output, and trigger connections, it’s also possible to stack multiple amplifiers for bi- or tri-amplified systems.

Sitting on four rubberised feet and contained within a sturdy metal casework that boasts a clean, minimalist elegance for when it’s on show, the Amp Box S3 is designed to protect itself from electronic interference and vibration. The result is a purer musical signal that is true to the original recording, all presented in a spacious and comfortable sound stage.

Key Features:
Brand new PCB concept and sophisticated topology
Improved S/N ratio with lower distortion for a more accurate performance
Micro-sized footprint and casework for true flexibility in placement
Advanced amplifier module ensures a quality in playback that belies its size
Stereo inputs via RCA connectors
Speaker sockets are isolated for purity of signal
Banana/Spade/Pin/bare wire connectors offer the maximum ease of use
Trigger input and output for using further amp Box S3 units in tandem and Pre Box pairing
Aluminium metal casing and rubberised feet protect against vibration and interference
On/Off toggle switch on the front fascia for simplicity in operation
Handmade in Europe
Available in Black and Silver finishes

Technical Data
Power Output: 2 x 23W/40W at 8 ohms/4 ohms (1% THD)
Peak Power: 2 x 50W at 4 ohms
Frequency Response (20Hz - 20kHz): <-0,7dB at 4 ohms
Channel Separation: >-68dB at 20kHz
Signal to Noise Ratio: 87dBV (100dBV - 'A' weighted) at 4ohms
THD + N: <0,02% at 10W at 4 ohms
Gain: 31 dB
Line input sensitivity: 360mV
Pre In: 1 pair RCA
Bypass Output: Jack socket 3,5mm stereo
Input Impedance: 25 kohms
Speaker Connectors: 4mm ∅ _banana plugs, spades connectors or naked wire
Trigger: 12V DC switching voltage, 2-pole co-axial ∅ _2,5mm co-axial jack
Outboard Power Supply: 20V/3A DC, suitable for your country's mains supply
Dimensions W x H xD: 103 x 36 x 118 (136) mm
Weight: 385 g without power supply
