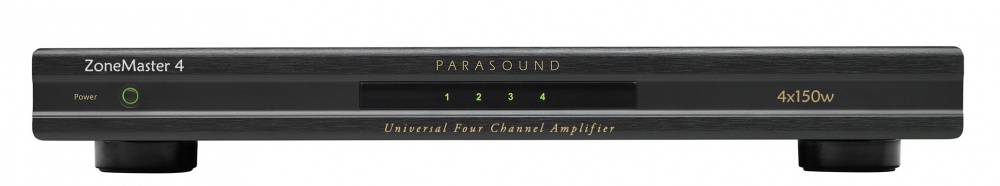

Parasound Zonemaster 4 4.0 Channel Amplifier
Zoom  Zoom
 Parasound Zonemaster 4 4.0 Channel AmplifierParasound Zonemaster 4 4.0 Channel Amplifier

Parasound Zonemaster 4 4.0 Channel Amplifier

£1,899.00
£1,582.50 Exc. VAT |


|

Parasound Zonemaster 4 4.0 Channel Amplifier

120 watts x4 @ 8 Ω
150 watts x4 @ 4 Ω or 2 Ω
8 speaker connections (A and B outputs for both channels)
High current for stable operation at 2 Ohms
Class AB input stage plus premium Class D power stage
Bus input with looping outputs
Audio sensing auto-on trigger, independent for each zone
12 volt auto-on trigger inputs, one for each zone
Master 12V trigger input to turn all zones on-off together
Looping 12 volt trigger outputs
Speaker level input for expanding systems w/out pre out jacks
Mono mode combines L and R for single speaker applications
Separate level controls for all 4 channels
Detachable speaker connectors accept up to 12 gauge wire
Short circuit and overheat protection with front panel indicators
0.5 watt standby power consumption meets Energy Star & EU specs
Compact 1u chassis size

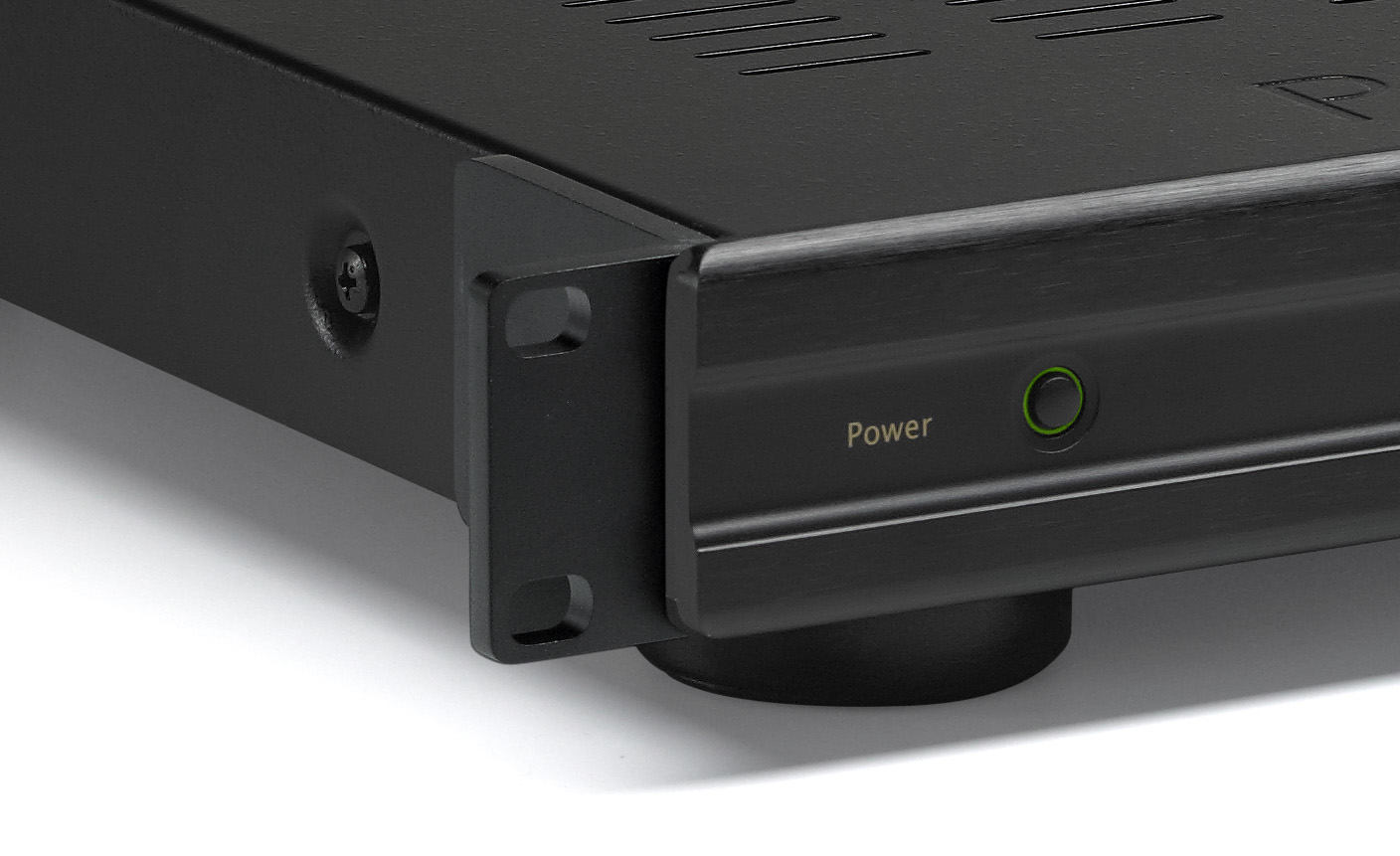

Rack mount kit included in the box

Power Output – RMS, Both Channels Driven (20 Hz - 20 kHz)
120 watts x 4 @ 8Ω
150 watts x 4 @ 4Ω or 2Ω Minimum Speaker Impedance:
A+B Outputs of a Single Channel: 2 Ω

Note: Continuous operation at this minimum impedance might require additional ventilation for the amplifier. Frequency Response:
20 Hz - 20 kHz, +0/-0.25 dB
5 Hz - 50 kHz, +0/-3 dB Total Harmonic Distortion:
< 0.05 % at typical listening levels
< 1.0% at full power Interchannel Crosstalk: 70 dB at 20 kHz Total Gain: 29 dB (Level controls set to Maximum) S/N Ratio: >112 dB, input shorted, IHF A-weighted DC Trigger Requirements: +9 Vdc to +12 Vdc, 5 mA Audio Trigger Requirements: 2 mV audio signal AC Power Requirement:
600 Watts maximum
60 Watts typical (music playing in all zones)
30 Watts idle (all zones on)
15 Watts idle (one zone on)
100-250 VAC 50/60 Hz (automatic) Dimensions:
Width: 17.25" (437 mm)
Depth: 14.25" (362 mm)
Depth: 16" (406 mm) with cables connected
Height, with feet: 2.5" (63.5 mm)
Height, without feet: 1.75" (45 mm), 1U Weight:
Net: 12 lbs. (5.5kg)
Shipping: 18 lbs. (8.2 kg)
