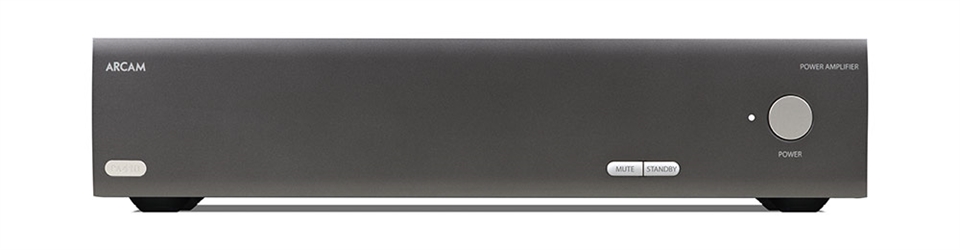

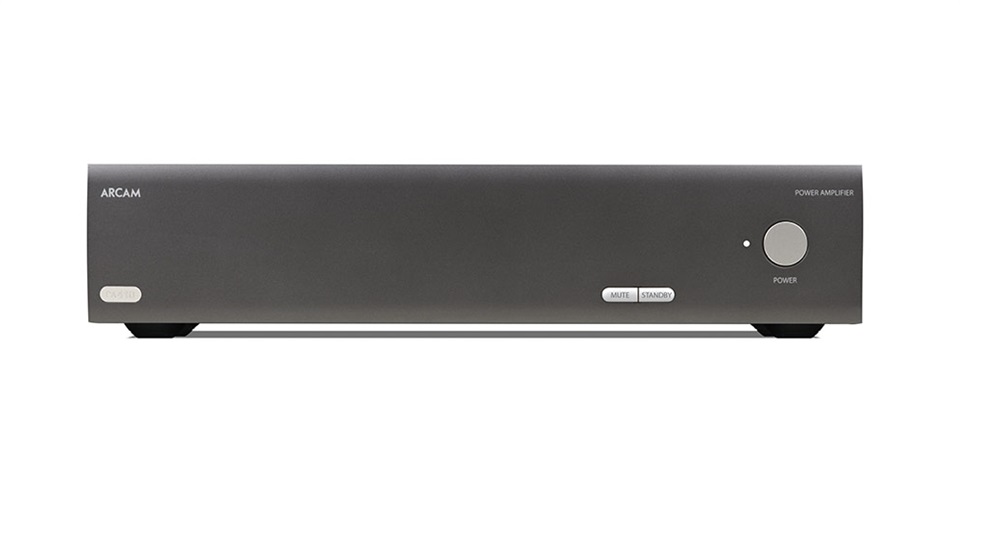

Arcam PA410 4 Channel Power Amplifier

UK SALES ONLY

£1,399.00

£1,165.83 Exc. VAT |

In order to achieve the highest possible performance from this Arcam product, we thoroughly recommend you ask us to calibrate and install this product for you in the comfort of your home.

Description
Specifications
Customer Reviews (0)

Arcam PA410 4 Channel Power Amplifier

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

Exceptional Power, Immersive Sound

The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Features:

4 Channel Power Amplifier
4 x 50W Class AB amplification (8ohm, 20Hz-20kHz, 0.2% THD)
Toroidal transformer
RS232 control

Continuous power output at 0.2% THD per channel

Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 70W / 50W
Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz - 90W / 60W
Harmonic distortion, 80% power, 8Ω at 1kHz - 0.003%

Inputs

Input sensitivity 50W / 8Ω - 600mV RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω - 105dB
Input impedance - 10kΩ
Frequency response - 20 - 20kHz +/-0.05dB

General

Mains voltage - 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) - 700W
Power consumption (idle, typical) - 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) - <0.5W
Dimensions W x H x D (including feet, control knob and speaker terminals) - 433x325x105mm
Weight (net) - 10kg
Weight (packed) - 11.5kg
EAN - 6925281969195
