Luxman M-10X Power Amplifier
Zoom  Zoom
Luxman M-10X Power AmplifierLuxman M-10X Power AmplifierLuxman M-10X Power AmplifierLuxman M-10X Power Amplifier

Luxman M-10X Power Amplifier

PLEASE NOTE WE CAN ONLY SELL LUXMAN TO CUSTOMERS IN THE UK
£15,995.00
£13,329.17 Exc. VAT |


|

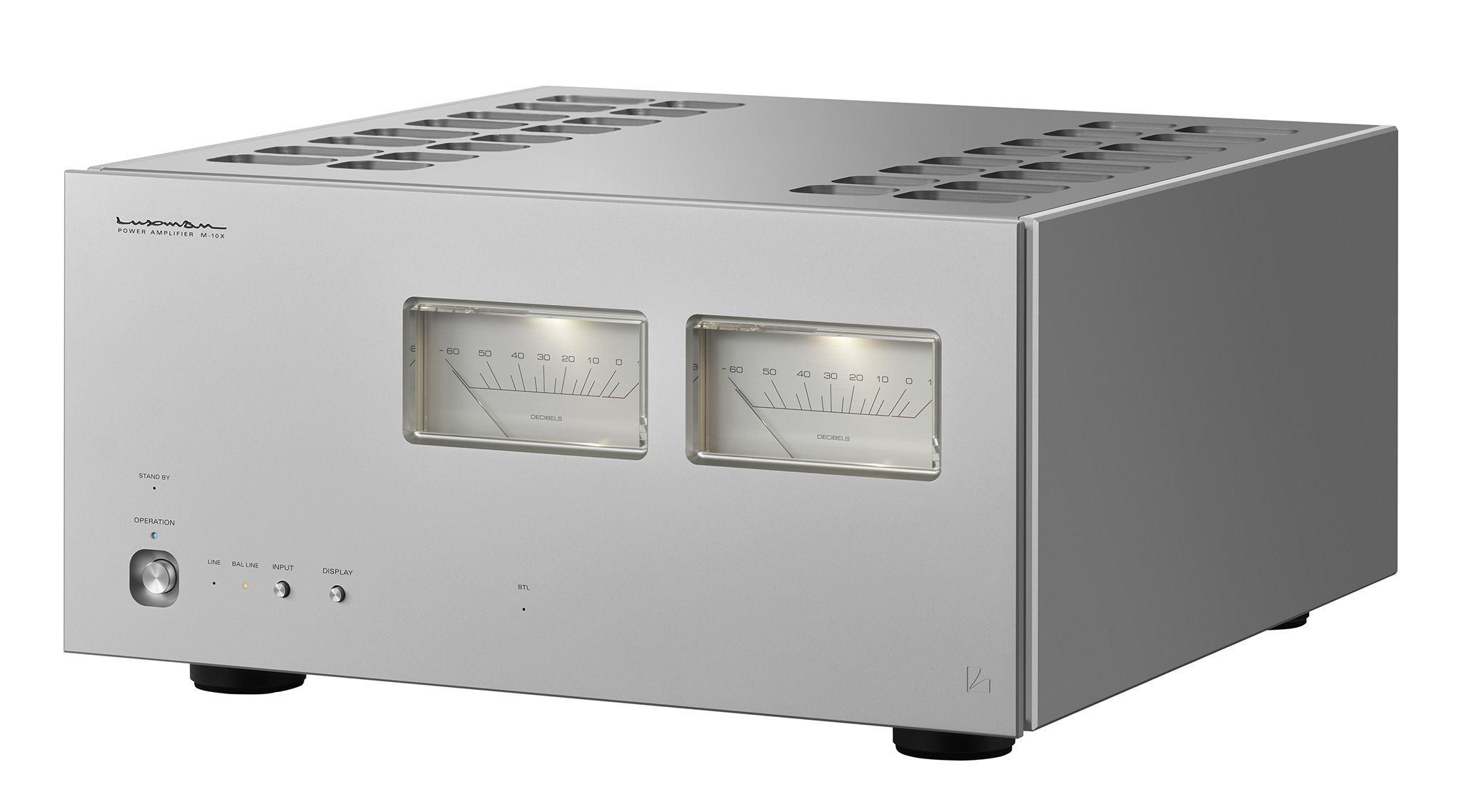

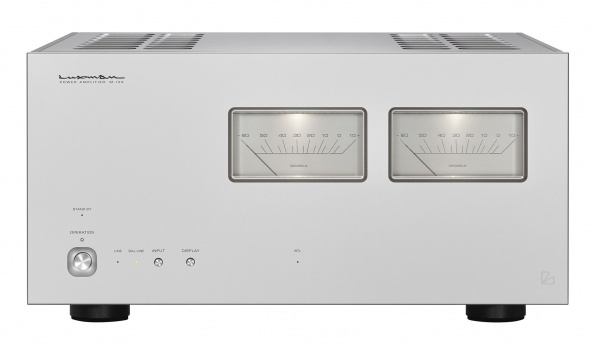

Luxman M-10X Power Amplifier

The M-10x is our flagship stereo/mono power amplifier designed to replace the long-running M-900u, first released in 2013. Years in development, M-10x becomes a premier model in our next-generation lineup to celebrate the 100th anniversary of Luxman’s founding in 1925.

Superbly crafted and with most outstanding sound quality, the M-10x is destined to satisfy audiophiles and music lover’s with its almost limitless loudspeaker drive capability.

Original Luxman amplifier design hallmarks, such as ODNF circuitry were carefully analyzed and then further evolved through extensive computer simulations to achieve a radical improvement in audio performance. Only after repeated new circuit components auditioning and prototype listening tests were the results judged suitable for adoption as “LIFES1.0” in Luxman’s new M-10x.

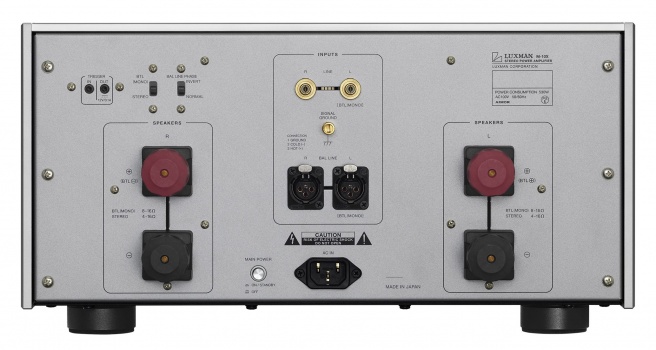

A three dimensional chassis housing design, in common with the D-10x is featured. Improved LED backlit analog level (VU) meters are employed with the left channel meter exactly centered for BTL-mono use priority. Equipped with 12 volt trigger input/output connections to daisy chain multiple amplifiers in a home theater or enable convenient integration into automated systems.


Rated output 150W + 150W (8Ω)/at stereo
300W + 300W (4Ω)/at stereo
600W (8Ω)/at monaura
Instantaneous max. output 1,200W + 1,200W (1Ω)/at stereo
2,400W (2Ω)/at monaural
Input sensitivity 1.24V/150W (8Ω)
GAIN 29.0dB
Input impedance Unbalanced 51kΩ
Balanced 28kΩ
Frequency response 20Hz to 20kHz (+0, -0.1dB)
1Hz to 130kHz (+0, -3.0dB)
Total harmonic distortion 0.003% or less (1kHz/8Ω)
0.04% or less (20Hz to 20kHz/8Ω)
S/N ratio (IHF-A) 117dB
Amplification circuit LIFES 1.0
Output configuration 3 stage Darlington 4 paralleled push-pull
Damping factor 600
Power consumption

540W

290W (under no signal)
1.0W (at standby)

External dimensions 440(W) x 224(H) x 488(D) mm
front side knob of 2mm and rear side terminal
of 38 mm included in depth
Net weight 48.4kg
Accessories Trigger cable (Modular/3.5mm Monaural)
Power cable
