Please note: The values in brackets apply to the POWER 1000!
Mains connection: 90-240 V, 50-60 HzPower consumption: 0,5 W stand-by, 16 (26) W operation, 650 (1200) W max.Dimensions (W x H x D): 280 x 220 x 63 mmWeight: 2,9 (3,4) kg

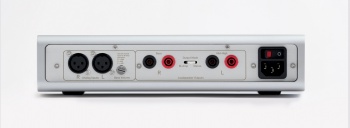

XLR Inputs: balanced, analog line-level inputsInput voltage for full modulation: 1,68 V (2,38 V)Input impendance: 20 kOhmsSpeaker outputs: banana plugs (4 mm)Speaker impendance range: 4 – 8 OhmsOutput power: 2 x 250 W @ 4 Ohms (2 x 500 W @ 4 Ohms)Gain: 26 dBTHD: < 0,003%Frequency response: 1 Hz – 50 kHz (-3 dB)Signal-to-noise ration: > 110 dB
Switch-on treshold: ca. 0,2 mV balancedSwitch-on delay: ca. 2-3 secondsSwitch-off time: ca. 60 minutes
DC at output: Amplifier switches off. The display lights up red continuously. The unit must be disconnected from the mains for 10 seconds and restarted.Overtemperature: Amplifier flashes red. Cause: Overload, insufficient convection cooling, room temperature too high. If the temperature continues to rise, the amplifier is switched off, until the unit has cooled down.Current limiting: Amplifier switches off the signal. Switching threshold output current: 17.5 A (27 A).
