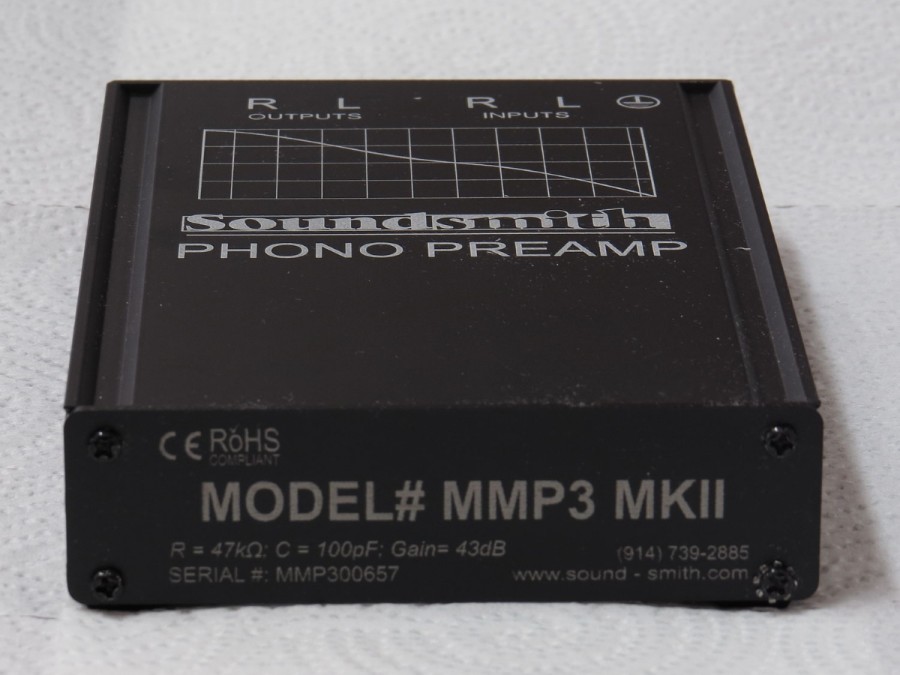

Soundsmith MMP-3 MkII Phono Preamp
An upgrade in quality does not have to deplete your wallet.
The Soundsmith MMP & MCP preamps are revolutionary designs for their price - and the comments we get at each hi-fi show prove it. These preamps are what we use to demo our cartridges at all our shows even our high end cartridge designs
Each hand - made preamp circuit is housed in a high quality aluminum case, powered by an external DC power supply, with easy to set up instructions. All amplifiers have extremely accurate RIAA equalization response.
![](/user/products/large/mmp3mkii1500.JPG)
Dimensions for the MMP4, MMP3 and MCP-2 (without the knob, which adds 3/4" to the height)
7” deep, 1&1/2” high, and 4&1/4” wide.
Overload specs for our preamps: Output clipping into 10K Ohms = 8.3 Volts RMS - all models.
Input overload levels for output clipping or non linearity:
MMP3/MMP4 ~~~ 20Hz - 5.3 mV; 1Khz - 53 mV; 20KHZ - 530 mV;
MCP-2 ~~~~ 20Hz - 1.4 mV; 1Khz - 5.3 mV; 20KHZ - 35 mV with input load set to 200 Ohms;
| | width | height | depth | | weight |
Product Name | inches | cm. | inches | cm. | inches | cm. | | lbs. |
MCP-2 | | 4.500 | 11.430 | 2.125 | 5.398 | 7.125 | 18.098 | | 0.93 |
IN SHIPPING BOX | 5.500 | 13.970 | 4.250 | 10.795 | 7.750 | 19.685 | | 1.68 |
MMP-3 | | 4.500 | 11.430 | 1.375 | 3.493 | 7.125 | 18.098 | | 0.89 |
IN SHIPPING BOX | 5.500 | 13.970 | 4.250 | 10.795 | 7.750 | 19.685 | | 1.65 |
MMP-4 | | 4.500 | 11.430 | 1.375 | 3.493 | 7.125 | 18.098 | | 0.89 |
IN SHIPPING BOX | 5.500 | 13.970 | 4.250 | 10.795 | 7.750 | 19.685 | | 1.65 |
