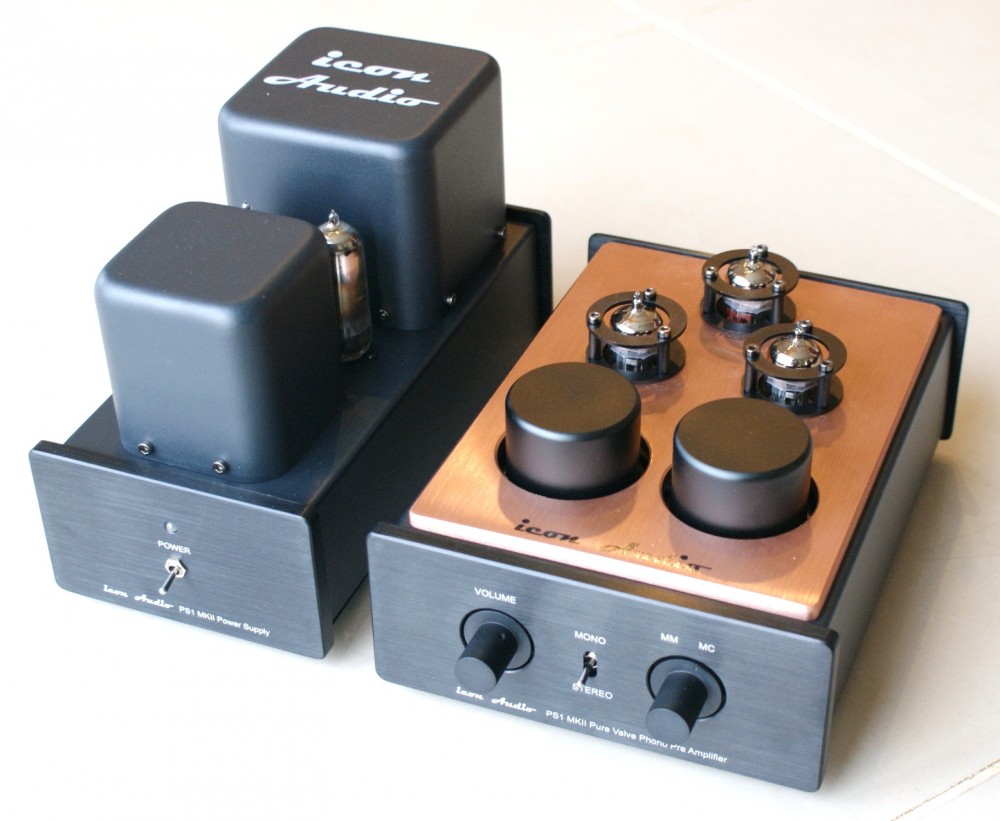

Icon Audio PS1 MkII Phono Pre-Amplifier

Icon Audio PS1 MkII Phono Pre-Amplifier

Icon Audio amplifier have an enviable reputation following reviews. First introduced in 2005, the PS1 has proved to be one of Icon Audio's best selling phono pre-amplifiers. It is well known that for many reason, valves can sound much better than transistors, this is especially so with vinyl reproduction. This is because:

- The massve overload of valves prevents distortion on highly modulated or scratched/worn LPs, therefore minimising noise.

- The warm sound of valves is particularly suited to the reproduction of analogue music from vinyl.

- The huge 40dB RIAA difference between 20Hz and 20kHz is easier for valves than transistors.

- Icon Audio use hard wired point-to-point wiring with no printed circuit board.

New Upgraded PS1 MkII

Icon Audio have tweaked and improved the power supply in this new PS1 model. Also, they have made some small improvements to the circuit and wiring.

Specifications and Features

- Stereo/mono switch for better S/N and distortion from mono and worn stereo records
- Separate Power supply for lower noise
- Comprehensive manual supplied
- All hand wired point to point
- No printed circuit board to ‘colour’ sound
- Japanese Blue ALPS volume pot.
- All Triode valves
- 2x ECC83 1x ECC81
- Sensitivity: 3mv for 1.26v output (0.3mv MC)
- Gain MM 53db MC 72db
- Load: imp: 47k MM, 100 ohms MC
- Source impedance 50 ohms
- Signal to noise level -75db (MM unweighted)
- RIAA Freq response 20hz-20khz +0 – 1db
- NO feedback used, Passive RIAA
