Exposure VXN MM/MC Phono Stage
Zoom  Zoom
Exposure VXN MM/MC Phono StageExposure VXN MM/MC Phono StageExposure VXN MM/MC Phono StageExposure VXN MM/MC Phono Stage

Exposure VXN MM/MC Phono Stage

£1,790.00
£1,491.67 Exc. VAT |


|

Exposure VXN MM/MC Phono Stage

  • Note the VXN Phono Amplifier can only be used with the VXN Power Supply

Award-winning clarity and power

The VXN Power Supply, Phono Amplifier, 2 & 3 Way Active Crossovers are masters of their class. Combining cutting edge technology with years of audio experience, these products offer a level of performance that simply has to be heard to be believed.

Features:

  • All audio circuits use discrete transistors only; no integrated circuits in the signal path
  • Very low noise power supply with multiple stages of regulation
  • High quality resistors and capacitors throughout the signal path
  • Very high quality polypropylene capacitors in critical areas of the RIAA equalisation
  • Separate MM and MC inputs selectable on the front panel

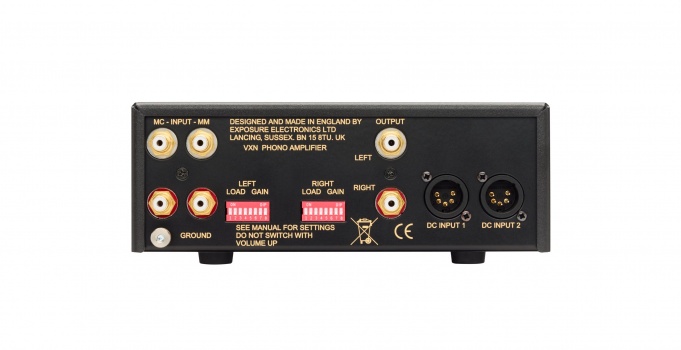

  • Adjustable loading & gain switches on the back panel
  • Available in Black only

    Outputs Nominal output (depends on gain setting) : Maximum Output: Output Impedance: THD @ 1 kHz, ref 500mV output: Frequency Response : Moving Magnet Input Sensitivity : Signal to Noise Ratio : Moving Coil Input Sensitivity : Signal to Noise Ratio : General For use with VXN Power Supply only Power Consumption : Dimensions (HxWxD) : Net Weight : Gross Weight : 500mV 7.8V @ 1kHz 50 Ohms <0.005% 30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz 5mV input for 500mV output, 40dB gain setting ref 1kHz & 500mV out (A weighted) : >82dB 500uV input for 500mV output, 60dB gain setting ref 1kHz & 500mV out (A weighted) : >72dB <10W 89mm x 218mm x 348mm 2kg 3kg
