Opera Audio Consonance Reference 40 Phono Stage
Zoom  Zoom

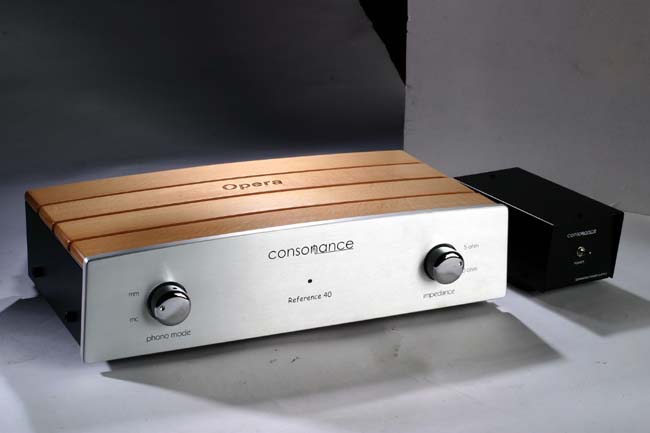

Opera Audio Consonance Reference 40 Phono Stage

£1,995.00
£1,662.50 Exc. VAT |


|



Opera Audio Consonance Reference 40 Phono Stage

The Reference 40 MM and MC tube phono amplifier features an external power transformer, power supply with tube rectification, Amorphous core MC step-up transformer and a point-to-point wiring with layout for the lowest noise.

Specifications

  • Control Functions: Power On/Off, Switch MM / MC and Switch High / Low
  • Harmonic Distortion: 0.01% (for 2V RMS at output)
  • Input Impedance: 47k ohms(MM), 5 ohm~ 400 ohm(MC)
  • Input Gain: 40dB (MM ) / 66 dB ( MC, 10 times)/ 57dB(MC, 5 times)
  • Input Interfaces: 1 group (RCA)
  • Output Interfaces: 1 group (RCA)
  • Grounding Interfaces: 1 group
  • Signal/Noise: 80dB(MM), 70dB(MC)
  • Consumption: 10watt
  • Vacuum Tube: 12AX7 x 2, EZ80 x1
  • Dimensions: 440(L) x260(W) x100(H)mm
  • Weight: 15kg (packed)
