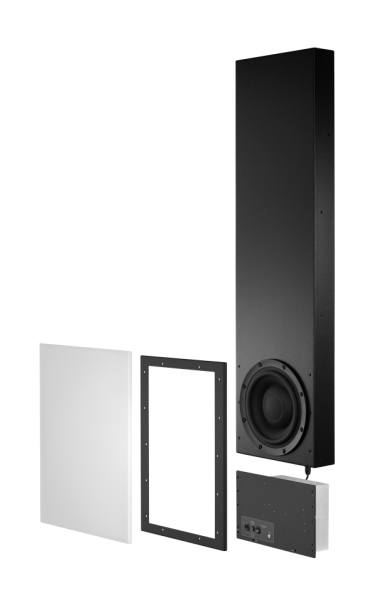

Meridian DSW600 In-Wall Subwoofer

FAST, DYNAMIC, POWERFUL

The DSW600 is a shallow-depth, digital active in-wall subwoofer designed to handle the most bass heavy music and movie soundtracks with ease. Deep, powerful and exciting bass is delivered with perfect timing down to 24Hz thanks to Meridian’s unique ‘DSP’ advantage and Enhanced Bass Alignment Technology.

The DSW600 can integrate into a variety of installation applications, it delivers impactful bass in any room size and as part of any loudspeaker configuration; it can be used to augment the bass from other loudspeakers in both two-channel and surround-sound systems, and it can be used to play the dedicated LFE channel - either on its own or when used in multiples.


DIGITAL SIGNAL PROCESSING

As pioneers and leaders in the field of Digital Signal Processing (DSP) technology, Meridian is able to deliver your music authentically to recreate the passion and involvement of your musical moments. Power-efficient, active DSP crossovers are individually tailored to distribute music to each speaker, bringing your music to life.

SPEAKERLINK

Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install

FIFO BUFFERING

Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.

MERIDIAN APODISING FILTER

Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.

ENHANCED BASS ALIGNMENT (EBA)

High or low, all sounds travel at the same speed, so all the sounds from a live musical event arrive at your ear at the same time, whatever frequencies they contain. Loudspeakers, however, have a problem when playing low frequency sounds at the same time as mid and high frequencies – the bass arrives late, and the deeper the sound, the later it arrives. This delayed bass causes music to lose its impact and reduces the sense of the recorded space – it is often described as “boomy”.

The goal is to have time-accurate loudspeakers, where all reproduced frequencies start and end at the same time. In a loudspeaker, this timing is affected by the crossover, driver, and enclosure
type. To eliminate the delay between low, and mid and high frequencies, Meridian has designed a combination of digital filters and time delays for the mid and high frequencies. This solution enables the mid and high frequencies to “wait” for the low frequencies, delivering perfectly-timed music playback.

Mid and high frequencies are delayed to time-align them, while upper bass is delayed with a special type of patented filter. These features must
be implemented entirely in the digital domain, making them impossible to achieve in any passive or analogue-active loudspeaker design.

Enhanced Bass Alignment provides accurate time-alignment of the drivers in the system, delivering exceptional imaging and a clear, transparent, more life like sound.


AUDIO INPUTS

Meridian SpeakerLink connector (RJ45)

AUDIO OUTPUTS

Meridian SpeakerLink connector (RJ45)

PERFORMANCE

Frequency response: 24Hz to 120Hz



AMPLIFIERS

1 x Class D amplifier capable of producing over 600W RMS on music or movie transients

BASS DRIVERS

1 x 10in long-throw, low profile design



CONTROLS

Power On/Off switch

Channel selector switch to select which digital audio received via the SpeakerLink input is played

LED indicator shows power status

POWER

IEC mains connector - 550W



PRODUCT DIMENSIONS

HEIGHT - with grille fitted: 1452mm (57.2in)

HEIGHT - without grille: 1429mm (56.3in)

WIDTH: 343mm* (13.5in)

DEPTH: 87mm (3.4in)•Weight: 23kg (50.6lbs)

PACKED DIMENSIONS

LENGTH: 1340mm (52.8in)

WIDTH: 485mm (19.1in)

DEPTH: 290mm (11.4in)

WEIGHT: 30kg (66.0lbs)
