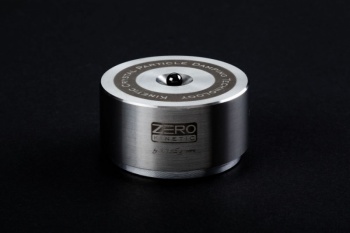

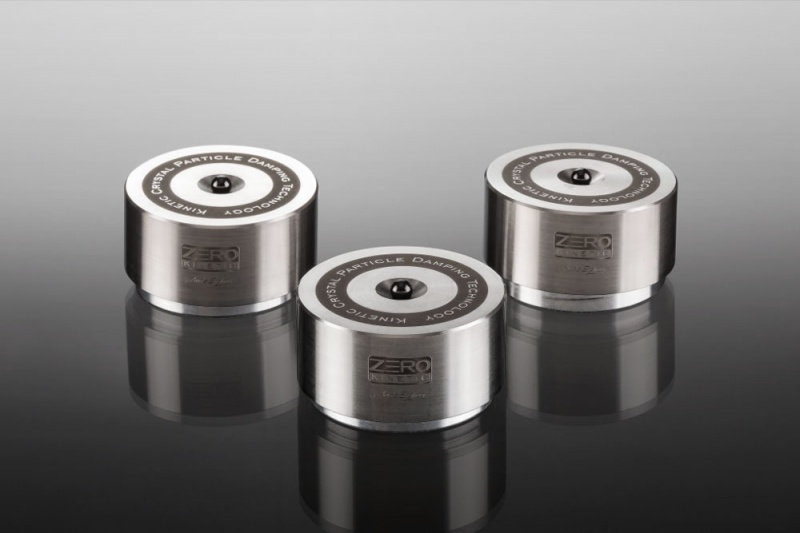

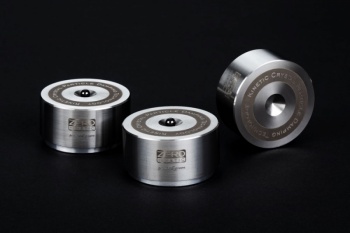

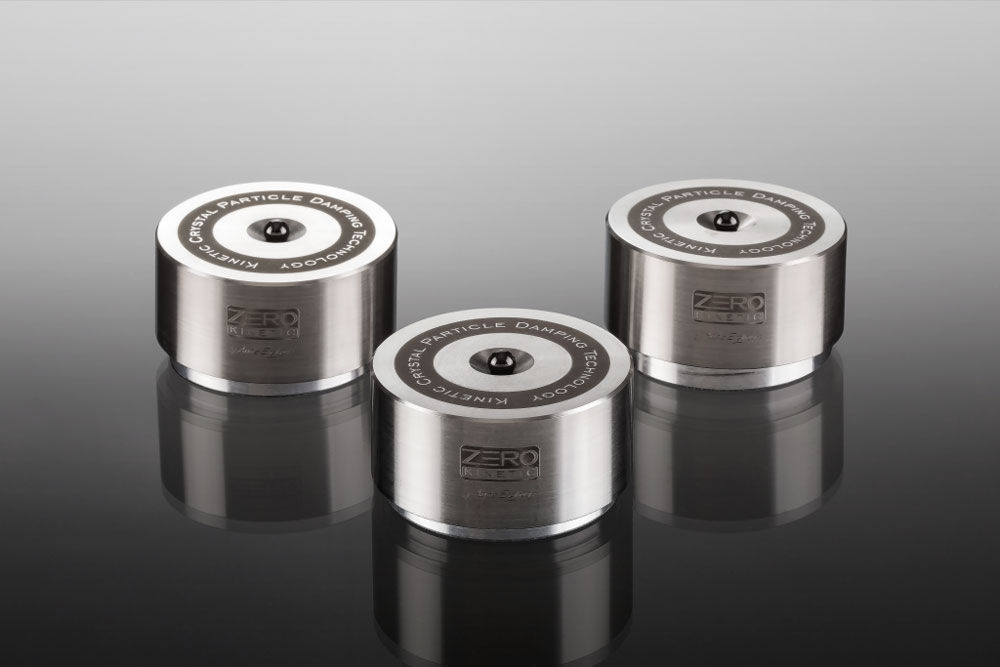

Zero Kinetic isolation feet are designed for audio- and video devices, projectors, turntables, center-, bookshelf, floor standing speakers, speakers stands and audio furniture. Zero Kinetic isolation feet have been crafted to provide extraordinary acoustic performance with enhanced sound clarity.
Advantages of crystal particle dampers:
The mass of the particles placed in the container of the structure may be less than the mass they replace thus providing more effective damping.
They are able to perform over an extremely wide frequency range, unlike viscoelastic or general hard-point dampers, which are highly frequency dependent.
The free movement of the different sizes crystal particles simply converts the kinetic energy into heat.
Virtual analyses can be used to develop particles of the most appropriate type, size and consistency for a given application, therefore, they can be used for applications where accuracy, high efficiency and long operating time are required.
They are able to operate over a wide load- and temperature range without loss of efficiency.
The principle behind particle damping is the absorption of kinetic energy through losses, which results from the displacement of granular particles which move freely.
particle damping, crystal particle, audio feet, hifi feet, audio damper, isolation pads, absorber, zero kinetic, kinetic, zero vibration,
Particle damping is most similar to the behavior of gravel thrown into the sand on the beach, where the sand particles immediately reduce and dissipate the kinetic energy of the impact. Particle damping technology is one of the most advanced solutions of impact and vibration damping with several advantages. General damping is performed by only a single mass, while in the case of particle damping, several small auxiliary masses perform this task in a container.
The particle dampers are highly non-linear dampers whose damping, is derived from a combination of loss mechanisms, including friction and momentum exchange, which dissipate the vibrations into heat. Because of the ability of particle dampers to perform through a wide range of temperatures and frequencies and survive for longer life, they have been used in applications such as the weightless environments of outer space or in aircraft structures.
State-of-the-art materials and technologies
Zero Kinetic isolation feet are an extremely effective combination of materials and technologies used in space technology and advanced aircraft manufacturing. The outer housing of the Zero Kinetic isolation feet is made of non-magnetic, high-quality, high-strength stainless steel (HSLA) and a special aluminium-magnesium alloy with ultra-high precision CNC machining.
HSLA stainless steel and special aluminium-magnesium alloys already have excellent vibration damping characteristics on their own and effectively eliminate undesirable electronic interactions with components caused by commonly used magnetizable steels.
Inside the Zero Kinetic isolation feet are special silicon dioxide crystal particles with a hardness of 7 on the Mohs scale. The size and hardness of the crystal particles in the Zero Kinetic isolation feet have been designed for different vibration characteristics of the base and housing material to provide extremely effective particle damping over a wide frequency range. The free-moving crystal particles of different sizes are more difficult to transmit vibrations than solid (hard or flexible) materials, so vibration absorption is much more efficient and kinetic energy is simply converted to heat.
The inscriptions and patterns of the Zero Kinetic isolation feet are made with precision laser machining. Each Zero Kinetic isolation feet set has a unique serial number.

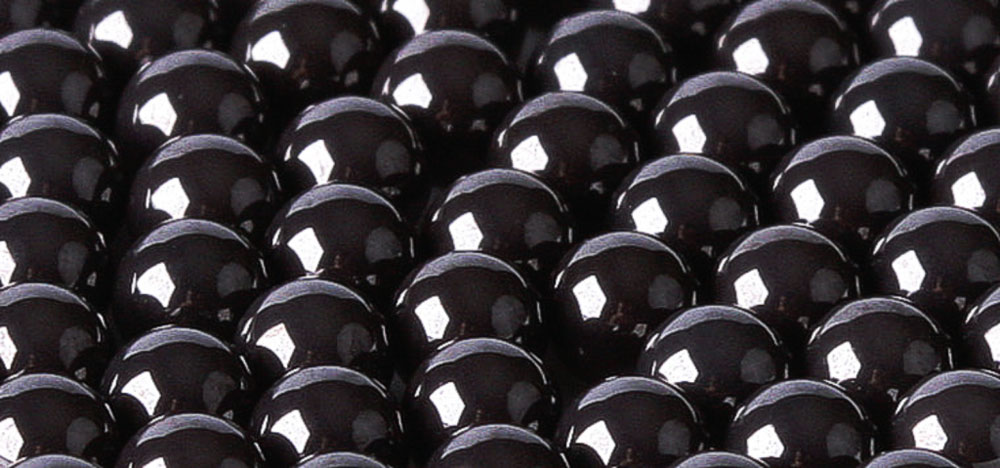

Ultra-high grade Ceramic ball
The ultra-high grade 5 ceramic ball is a perfect sphere.
Each ceramic ball is made with a minimal variation (±0.00011mm) and a precision process, providing a perfect fit. The ceramic balls that can be placed on top of the Zero Kinetic isolation feet provide more effective attenuation for audio devices, center-, and bookshelf speakers. The hardness of the silicon nitride ceramic balls is 9.5 on the Mohs scale, which is close to the Mohs 10 hardness of the diamond.
For floor-standing speakers, speaker stands, and audio furniture with spiked feet, the spikes provide a sufficiently small surface area, so there is no need to use a top ceramic ball to use Zero Kinetic isolation feet.
The ultra-high-precision CNC-machined base and housing of the Zero Kinetic isolation feet are assembled using a special high-pressure process, which is held together by the resulting vacuum effect.
With this special assembly process, no additional fasteners are required, so the free-moving silicon dioxide crystal grains are capable of a highly effective particle damping effect.

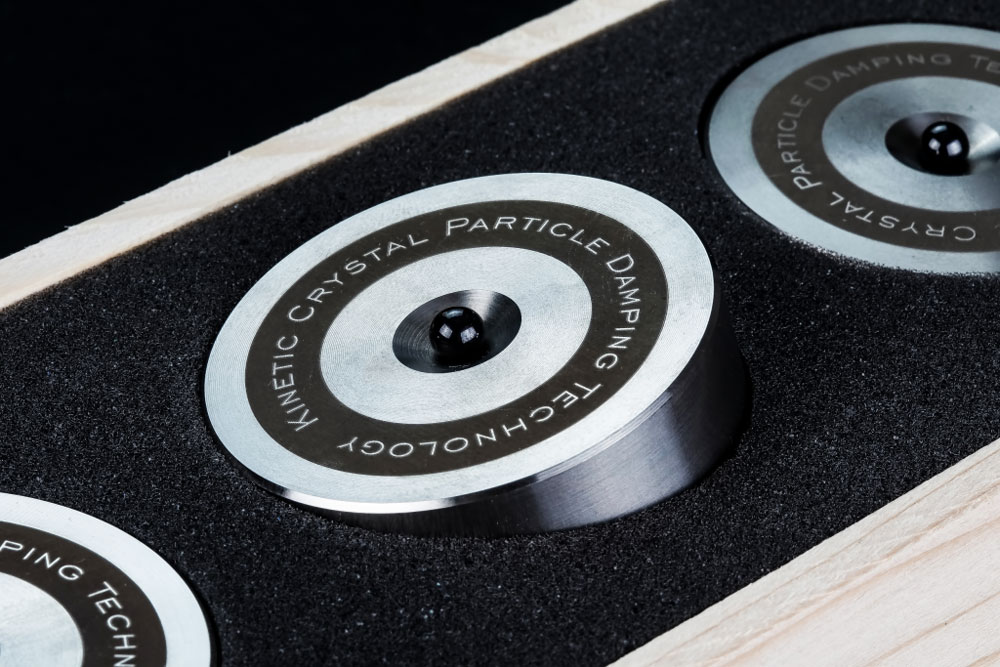

Each Zero Kinetic isolation feet are manufactured in the EU and assembled by hand. After assembly and last quality control, Zero Kinetic isolation feet sets are placed in an exclusive laser-engraved wooden box.
From September 2022, all Zero Kinetic audio feet will be made with a new nano-ceramic surface treatment.
The nano-ceramic layer forms an extremely hard, yet flexible coating on the external and internal metal surfaces, which further improves the effectiveness of vibration damping.
Effective 3-dimensional, 360 degrees axial and radial damping
Effectively reduces vibrations
Advanced crystal particle damping technology
Precise and natural sound
Realistic sound and expansive spatial pure details
Extensive and powerful dynamics
Extremely low noise
Precision CNC machined HSLA stainless steel housing and aluminium-magnesium alloy base
Precisely designed silicon dioxide particles of different sizes (hardness Mohs 7)
Increased damping surface area and amount of crystal particles
High precision, special hand assembly
Laser-engraved inscriptions and logo
Color: Silver shadow
Dimensions: 2,2″ x 1,1″ / 55 mm x 28 mm (2,2″ x 1,25″ / 55 mm x 31,5 mm with ceramic ball)
Weight: 0,55 lbs / 250 g / 1 pc
Load capacity: 200 lbs / 90 kg / 1 pc
Available in a set of 3 or set of 4
