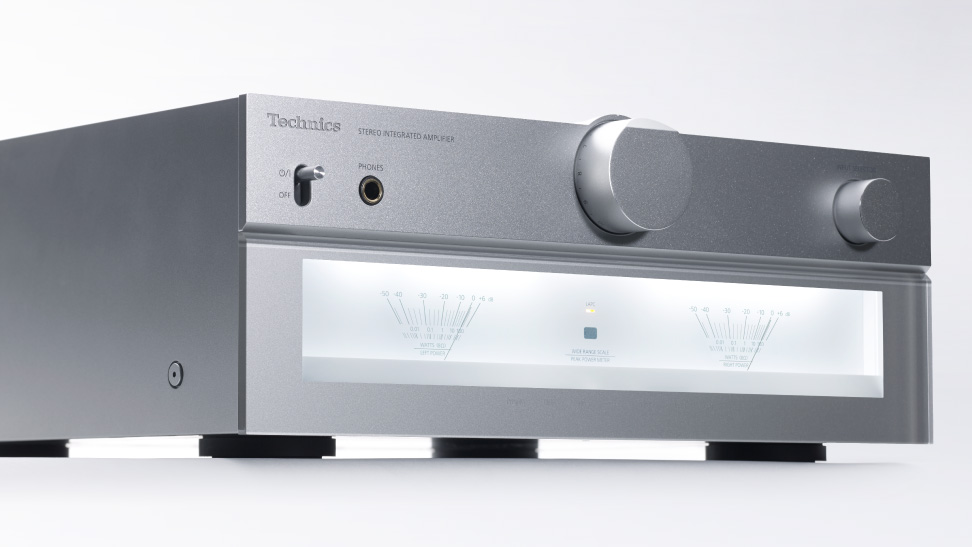

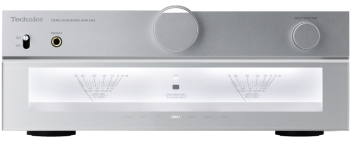

Technics SU-C700 Stereo Integrated Amplifier
Zoom  Zoom
Technics SU-C700 Stereo Integrated AmplifierTechnics SU-C700 Stereo Integrated AmplifierTechnics SU-C700 Stereo Integrated Amplifier

Technics SU-C700 Stereo Integrated Amplifier

£1,249.00
£1,040.83 Exc. VAT |


|

Technics SU-C700 Stereo Integrated Amplifier

Employs innovative fully-digitised processing that delivers a pure and accurate signal to the speakers.

"Playing Fleetwood Mac's The Dance live set, the Technics manages to deliver a sound with plenty of impact and drive, the performers deliver with fine clarity against the 'live' ambience."


JENO Engine (Jitter Elimination and Noise-shaping Optimization)

Just like the R1, the SU-C700 is a fully-digital amplifier and delivers high-resolution digital signals without any distortion being introduced between the input stage and output to the speakers. Technics has developed an original jitter-reduction circuit, avoiding the sound quality degradation due to jitter common to conventional digital amps. It uses a clock generator for the noise-shaping system to reduce jitter in the low-frequency range and a high-precision sample rate converter to suppress jitter in the high-frequency range.

LAPC (Load Adaptive Phase Calibration)

Technics has developed a speaker impedance optimisation algorithm, using digital signal processing to flatten both the amplitude and phase-frequency response to make the most of your speakers. The result is a sound with better focus, spaciousness and definition.

High-speed Silent Linear Power Supply

Using a large-current Schottky-barrier diode, a rectifier circuit with electrolytic capacitors, and a stabilised power supply circuit, the SU-C700 ensures ample power supply at all times, even when dynamic music demands high current.

Battery Driven Clock Generator

Technics used battery power for low-noise applications in analogue amplifiers in the past: here, this same technology is used to improve digital clock precision, enhancing the definition of the sound.

Various Inputs

The SU-C700 supports a wide range of inputs, such as SPDIF, Analogue and Phono, as well as USB-DAC for connection of a PC. The digital input terminal supports coaxial 192-kHz/24-bit PCM and optical 96-kHz/24-bit. The USB DAC input terminal supports 192-kHz 32-bit PCM and 2.8-MHz/5.6-MHz DSD native playback (analogue output) and asynchronous transmission. The SU-C700 converts analogue signals to high-precision 192-kHz/24-bit PCM signals using the A/D converter. The full-digital system achieves high-purity reproduction from any content.

Accurate Digital Technology
JENO Engine
(Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration
High-speed Silent Linear power supply
Battery Driven Clock Generator
High Rigidity Metal Double Chassis
Accessories
Remote Control, AC Cord, Operating Instructions
Weight
Approx. 8.3 kg
Dimensions (W x H x D)
340 x 132 x 325 mm
Power Consumption
73 W
Power Supply
AC220-240 V, 50 Hz/60 Hz
System Port
System Control Input/Output (Φ3.5 mm Jack)
Headphone Output
Yes
USB-DAC (USB-B)
USB Audio Class Specification
USB Audio Class 2.0, Asynchronous Mode
Support Codec
DSCYes (2.8224 MHz, 5.6448 MHz)
PCMYes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)

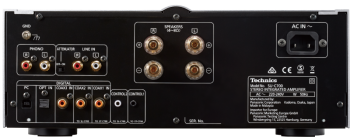

Digital Input Terminal
Coaxial Digital x 3, Optical Digital, USB-B
Analogue Input Terminal
LINE x 1, PHONO(MM) x 1
Load Impedance
4-16 Ω
Frequency Response
LINE 20 Hz - 80 kHz (-3 dB, 8 Ω), PHONO(MM)
20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
COAXIAL1/2/3, 20 Hz - 90 kHz (- 3 dB, 8 Ω)
Input Sensitivity / Input Impedance
LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV/47 kΩ
Output Power
45 W + 45 W (1 kHz, T.H.D. 0.3%, 8 Ω, 20 kHz LPF)
70 W + 70 W (1 kHz, T.H.D. 0.5%, 4 Ω, 20 kHz LPF)
Technics Definitive Design
High Rigidity Aluminium Cabinet

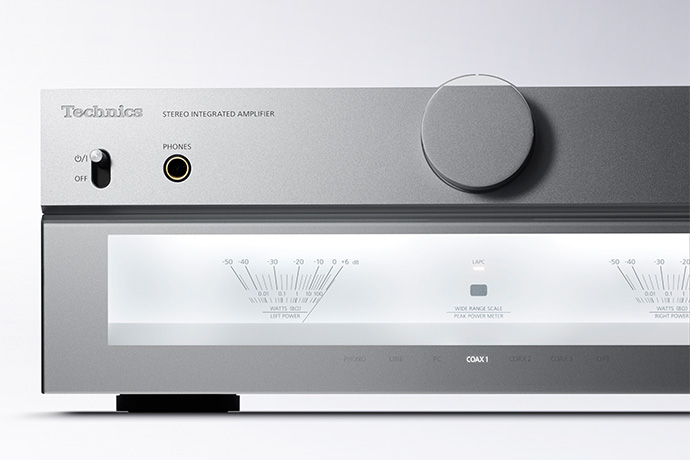

White LED Illuminated Large Level Meter
Symmetric Structure
