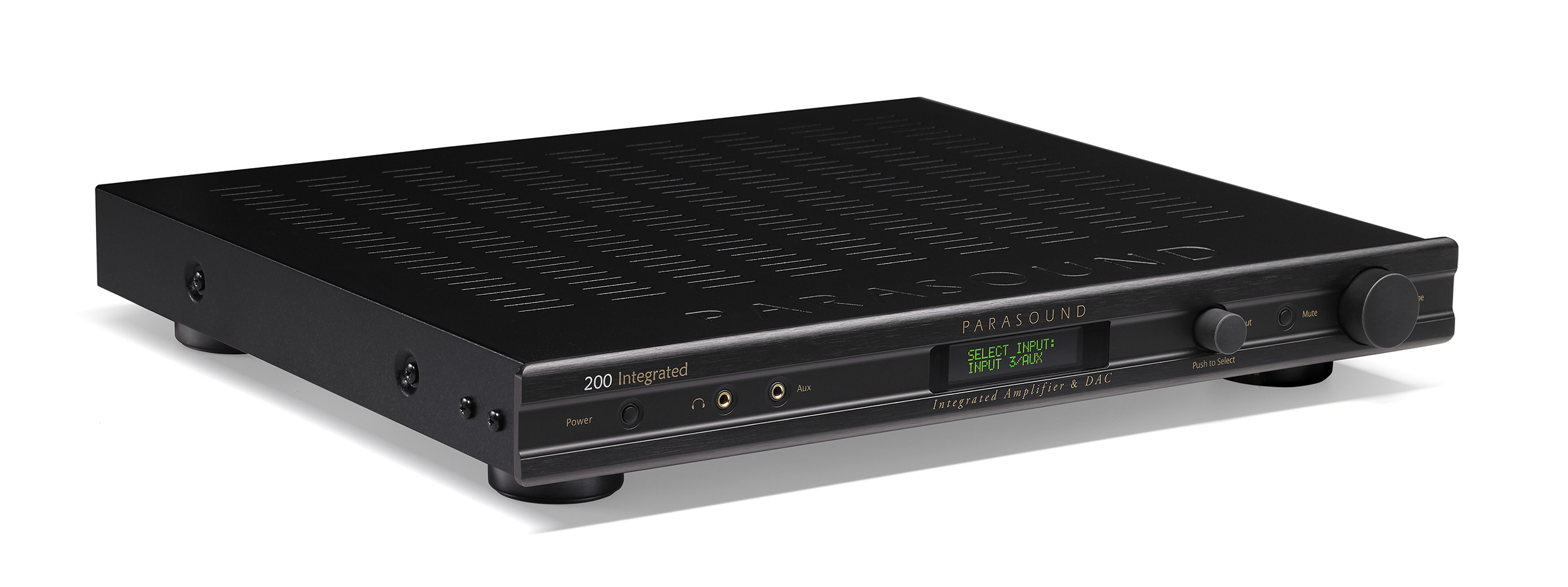

Parasound NewClassic 200 Integrated Amplifier
Zoom  Zoom
Parasound NewClassic 200 Integrated AmplifierParasound NewClassic 200 Integrated AmplifierParasound NewClassic 200 Integrated AmplifierParasound NewClassic 200 Integrated Amplifier

Parasound NewClassic 200 Integrated Amplifier

£1,559.00
£1,299.17 Exc. VAT |


|

Parasound NewClassic 200 Integrated Amplifier

Parasound's latest addition to the NewClassic range: the 200 integrated amplifier and DAC puts out a substantial 110 watts per channel into 4/8 ohms.

Features:

  • 110 Watts @ 8 or 4 Ohms
  • Class D amplification by Pascal
  • Burr-Brown 192kHz-24 bit DAC from the Halo P 5
  • USB, Optical and Coax digital audio inputs
  • 4 Analog audio inputs
  • Phono input for MM or MC cartridges
  • Pure analog signal path from input to output
  • Analog bass management w/ variable 20-140Hz high pass crossover
  • Subwoofer On/Off & level by remote control
  • 80Hz low pass subwoofer output
  • Full range mono output can be used for subwoofer or mono listening area
  • Variable and fixed stereo preamp outputs
  • Bypass input for surround sound or music streamer integration
  • Default turn on volume memory
  • Favorite volume memory with remote control button
  • Input level matching (source volume offset)
  • Bass, treble and balance adjustments by remote control
  • Front panel LCD display with dimming
  • 2-way RS232 w/ exact volume control & feedback
  • Control4 Driver available here
  • Rename inputs to match connected source
  • Front panel Aux input with12dB of additional gain
  • Dedicated headphone amplifier

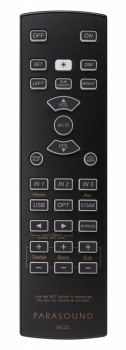

  • Back-lit remote control with discrete buttons
  • 12V trigger output
  • Rear panel IR input
  • 0.5w standby power consumption meets Energy Star & EU specs
  • 1U rack mount kit available separately (Model RMK11)

Power Output - Both channels driven
(0.05% THD, 20 Hz - 20 kHz)
110 watts x 2 @ 4 Ω or 8 Ω (RMS)

Power Output - Both channels driven
(1% THD, 20 Hz - 20 kHz)
125 watts x 2 @ 4 Ω or 8 Ω (RMS)

Frequency Response:
20 Hz - 20 kHz, +0 / -0.05 dB
10 Hz - 80 kHz, +0 / -3 dB

Total Harmonic Distortion (20 Hz - 20 kHz):
< 0.05 %, (110 watts, 8 Ω)

Interchannel Crosstalk:
-75 dB at 20 kHz
-85dB at 1 kHz

Preamp Output:
250mv = 1V output
Total gain = 12 dB (volume set to 100)
Unity gain = Volume set to 76
Maximum output = 3.5V

Phono Stage Gain / Input Impedance:
MM: 40 dB / 47 k Ω
MC: 50 dB / 100 Ω

Line Level Input Impedance: 24k Ohms

Preamp Output Impedance: 470 Ohms

S/N Ratio – Line Inputs:
> 100 dB, input shorted, IHF A-weighted

S/N Ratio – Digital Inputs:
> 110 dB, input shorted, IHF A-weighted

DAC IC: Burr-Brown PCM1798

DAC Maximum Sampling Rates (PCM only):
USB: 96kHz - 24 bit
Optical: 192kHz - 24 bit
Coax: 192kHz - 24 bit

DC Trigger Output: 12 Vdc, 50mA

AC Power Requirement:
Standby: 0.5 watts
Idling: 15 watts (no music playing)
Typical: 50 watts (music playing)
Maximum: 300 watts
100-250 VAC 50/60 Hz (automatic)

Dimensions:
Width: 17.25" (438 mm)
Depth: 14.75" (375 mm)
Depth: 16.75" (425 mm) with cables connected
Height, with feet: 2.5" (63.5 mm)
Height, without feet: 1.75" (44.5 mm), 1U
Rack mounting requires RMK-11(sold separately)

Weight:
Net: 11.5 lbs (5.2 kg)
Shipping: 17.5 lbs (7.9 kg)
