Canor Asterion V2 Tube Phono Preamplifier

Call for price

£0.00 Exc. VAT |

Finish:

Description
Specifications
Customer Reviews (0)

Canor Asterion V2 Tube Phono Preamplifier

The CANOR Asterion V2 stands out as a top-of-the-line preamplifier for turntables, employing all-tube technology to deliver unparalleled performance. It's designed to work seamlessly with both MM and MC phono cartridges, making it a versatile choice for audiophiles who demand the best.

Features:

an all-tube turntable preamplifier for both MM and MC phono cartridges
nine tubes, one vacuum tube out of them used to rectify anode voltage
wiring circuitry without any global feedback

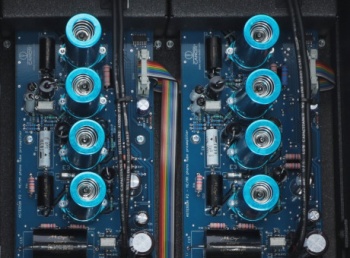

PCB’s utilize our premium CMT ™ technology
precise selection and matching of the tubes that have above-average parameters
vacuum-impregnated transformer core
transformer potted in a special anti-vibration compound and placed in the massive welded cover
the exceptional high-quality polypropylene capacitors in the signal path were used
if a turntable is fitted with two tonearms, one having an MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
high variability of gain settings, resistances and capacitances settings for all types of phono cartridges
a high-quality step-up Lundahl transformer for MC phono cartridges

Load capacity MM / Gain	50, 150, 270, 370, 520, 620, 740, 840 pF / Gain: 46 dB
Input impedance MC1 / Gain	10, 20, 40, 80, 150, 300, 600, 1.200 Ω / Gain: 70 dB
Input impedance MC2 / Gain	2, 5, 10, 20, 40, 80, 150, 300 Ω / Gain: 76 dB
Output impedance	< 250 Ω
Inputs	XLR -> MC; RCA -> MM / MC
Outputs	RCA / XLR
Total Harmonic Distortion	MM / MC <0,1% / 1 VRMS
Subsonic filter / threshold frequency	18 dB / Octave / 18 Hz
RIAA accuracy	0,3 dB / 20 Hz - 20 kHz
Signal-to-noise ratio MM	< 72 dBV (87 dBV - IEC - A)
Signal-to-noise ratio MC	< 72 dBV (87 dBV - IEC - A)
Tube complement	8 x 6922EH, 1 x 6CA4EH
Power	230 V / 50 Hz / 70 VA
Dimensions (w x h x d)	435 x 170 x 485 mm
Weight (net)	18 kg

Be the first to Write a Review for this item!
