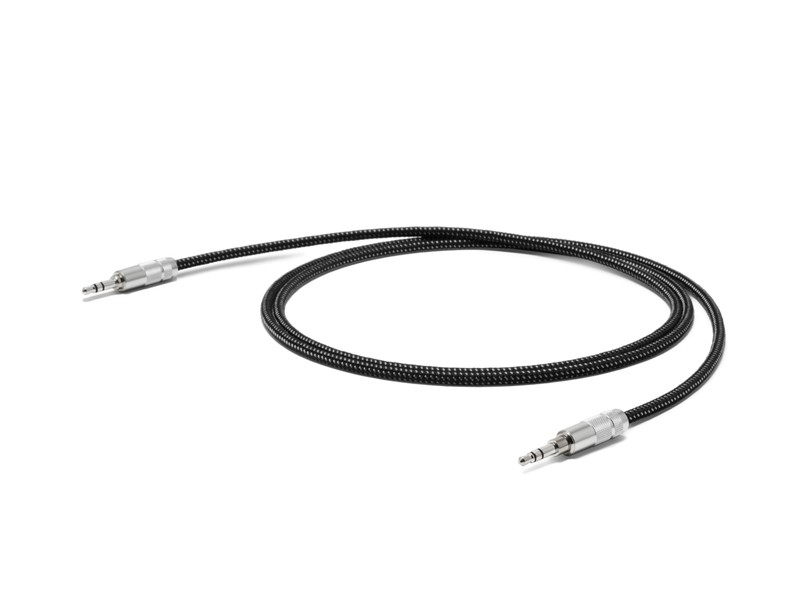

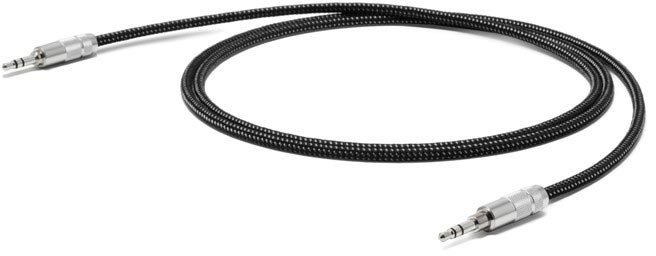

Oyaide HPSC-35 3.5mm to 3.5mm Headphone Cable

Oyaide HPSC-35 3.5mm to 3.5mm Headphone Cable

HPSC Series is a new series to replace the HPC Series. Its key technology is located in the "precision conductor 102 SSC" and "silk". The cable conductor has adopted a "precision conductor 102 SSC" as new materials to replace the PCOCC-A.

Specifications

• Cable Name: HPSC-22W
• Conductor: Precision conductor 102 SSC 7/7 / 0.089 (0.3sq)
• Insulator / sheath: TPE (olefin-based elastomer)
• Intervention / cable sheathing: Pure silk filament
• Shield: 102 SSC horizontal wound shield (58 / 0.089)
• Outermost layer: Pure silk filament braid
• Electrical characteristics: Conductor resistance: max 67.9 [Ω / km] .
• Insulation resistance:. Min 1 [MΩ · km ]
• Outer diameter: φ4.0mm

Plug details

• Headphone side plug: [3.5 stereo mini] P-3.5SRHP brass + silver plated + rhodium-plated
• Equipment side plug: [3.5 stereo mini] P-3.5SR silver plating + rhodium-plated brass
