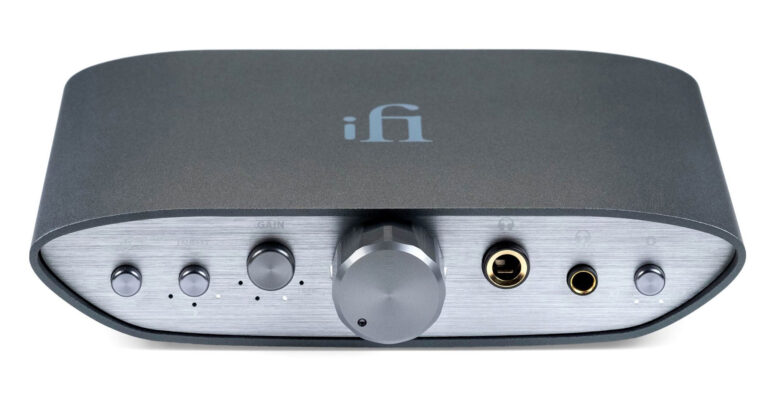

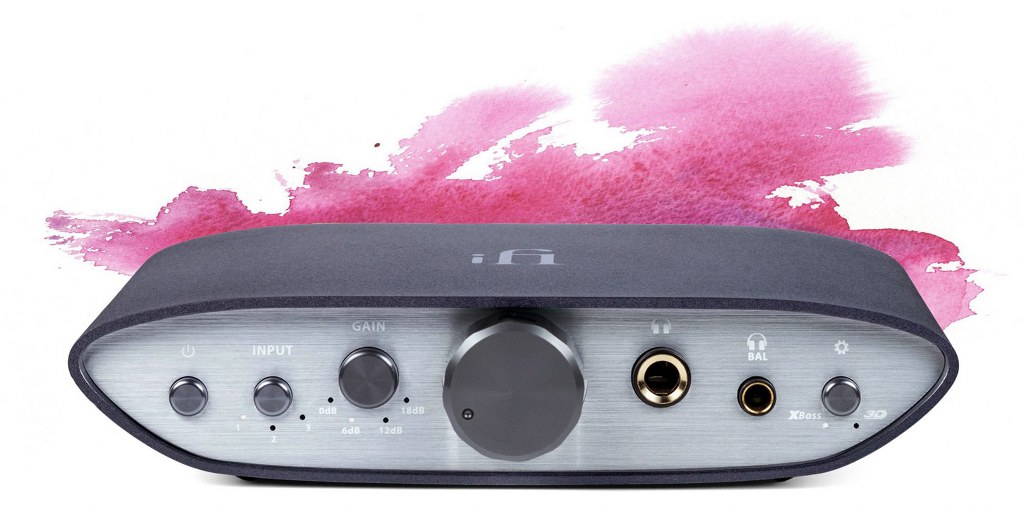

iFi Audio Zen CAN Balanced Headphone Amplifier
Zoom  Zoom
iFi Audio Zen CAN Balanced Headphone AmplifieriFi Audio Zen CAN Balanced Headphone AmplifieriFi Audio Zen CAN Balanced Headphone Amplifier

iFi Audio Zen CAN Balanced Headphone Amplifier

£149.00
£124.17 Exc. VAT |


|



iFi Audio Zen CAN Balanced Headphone Amplifier

Nitro for your headphones.

52x more power. Pump up the volume.


Laptops and smartphones have a really low power output of <1.0v. On a good set of headphones you’re always running out of juice. You never get to really hear what they can do.

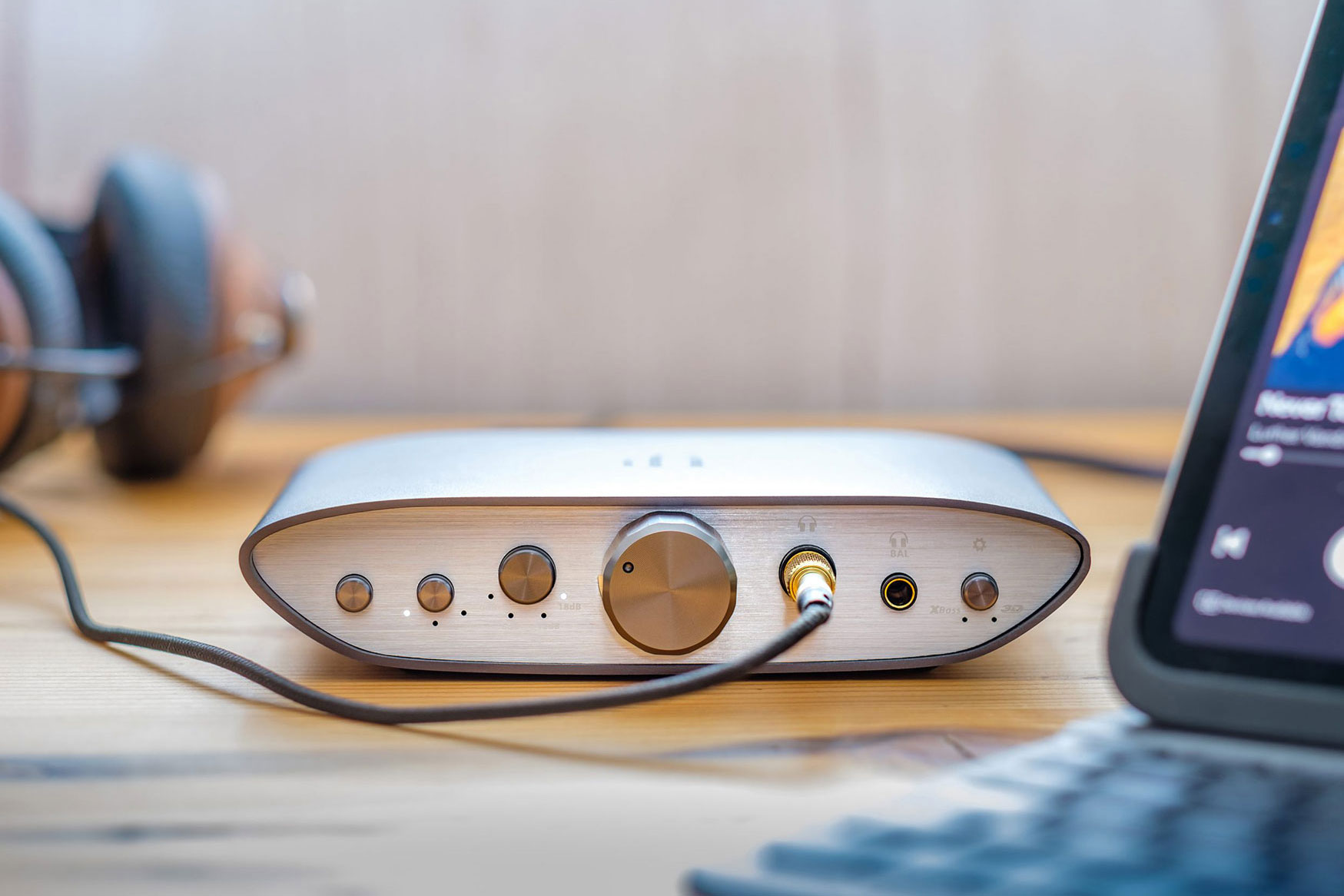

Use a laptop, phone or DAC to feed your music to the ZEN CAN and connect your headphones. Pumping out 52x more power, now you’ll hear what you have been missing.

Balanced to thrill

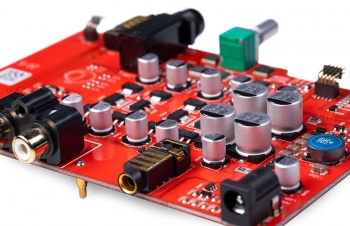

The ZEN CAN has trickle-down Class A discrete balanced circuitry from iFi audio’s US$1,699 flagship Pro iCAN. With 15.1v @300 Ohms on tap, it has serious power that will make even difficult-to-drive headphones thump to the beat.
  • Class A discrete output buffer from the flagship Pro iCAN using Op-Amp (OV2637A)
  • FET input avoids loading volume control – low distortion/noise
  • Low impedance feedback circuit enhances circuit performance with no resistor noise
  • Output amplifier gain of four steps in +6dB perfect for headphone matching
  • Puts you at the venue. Not other way round.
  • Audio recordings are made for speakers and when played back on headphones, the sound is always driving you nuts by being only in your head.

Our 3D special sound circuit solves this:

  • Stereo image that is truly out of your head, in front with height, width & depth
  • Without colouration or loss of resolution
  • All analogue circuitry (i.e. without costly and complex digital signal manipulation)
  • Satisfies all listeners.

Ace of XBass

Behind XBass is our active EQ circuit which meets a common gripe with headphones head-on, a lack of bass.

Open-back headphones in particular, let all frequencies (especially those precious bass frequencies that the drivers generate so little of) leak freely out of the back instead of trapping and redirecting them back to your ears.

XBass equalisation is a much more elegant solution to bass correction than seen elsewhere. It consists of active and passive components and its frequency response curve corrects their low-end response problems with precision.

Features:

  • Class A discrete output buffer from the flagship Pro iCAN using Op-Amp (OV2637A)
  • FET input avoids loading volume control – low distortion/noise
  • Low impedance feedback circuit enhances circuit performance with no resistor noise
  • Output amplifier gain of four steps in +6dB perfect for headphone matching
  • Puts you at the venue. Not other way round.
  • Audio recordings are made for speakers and when played back on headphones, the sound is always driving you nuts by being only in your head.

Input Voltage   DC 5V/2.5A AC 100 -240V, 50/60Hz (iFi iPower included)
Max Output Balanced >15.1V/385 mW (@ 600 Ohm) >6.0V/1150 mW (@ 32 Ohm)
  S-E >7.6V/98 mW (@ 600 Ohm) >7.2V/1600 mW (@ 32 Ohm)
THD & N Balanced <0.006% (@ 360 mW/2.4V 16 Ohm)
  S-E <0.005% (@ 100 mW/1.27V 16 Ohm)
SNR Balanced >120dBA (@ 15.2V)
  S-E >118dBA (@ 7.6V)
Max. Input Balanced 7.4V RMS
  RCA 3.8V RMS
  3.5mm 1.92V RMS
Gain   0dB, 6dB, 12dB and 18dB
Frequency Response   20Hz - 20kHz (-3dB)
Power consumption No Signal ~5W
  Max Signal ~13W
Power consumption   < 1.5W via USB power OR 5v DC (power supply not included)
Dimensions   158 x117 x35 mm 6.2" x 4.6" x 1.4"
Net weight   515g (1.14 Ibs)
Warranty period   12 months
