Atlas Ascent Ultra 75 Ohm SP-DIF Digital Interconnect
Zoom  Zoom

Atlas Ascent Ultra 75 Ohm SP-DIF Digital Interconnect

£296.00
£246.67 Exc. VAT |  |



Atlas Ascent Ultra 75 Ohm SP-DIF Digital Interconnect

Please note the ultra plugs are not included with the BNC version of this cable.  The Ultra plugs are digital RCA only.

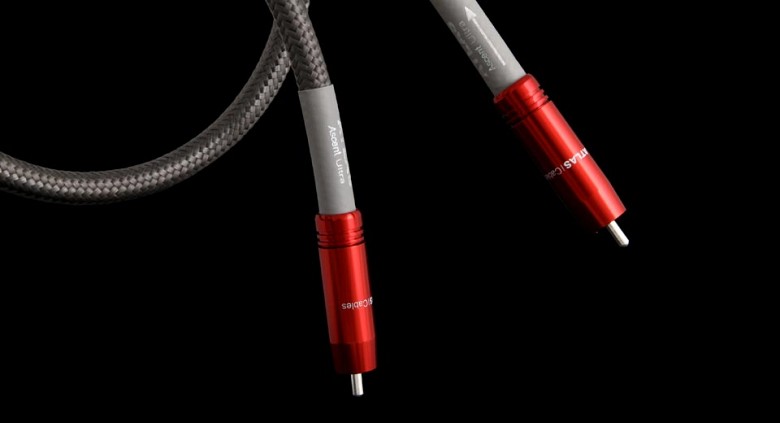

The Atlas Ascent 75 Ohm SP-DIF digital cable is a superior unbalanced design cable with a well-defined impedance of 75 ohms. The central conductor is made from OCC copper which is insulated by an extremely low-loss foamed polyethylene dielectric. The return conductor is made from OFC copper. The tightly woven wire mesh together with an aluminium foil, provides 100% rejection of radio frequency interference (RFI) ensuring that the music signal is free from any external interference or noise. The conductors are covered by a soft PVC sleeve and finished in a grey woven fabric.

The end result of this new development is a natural-sounding interconnect that neither subtracts from the music, nor adds any false details or unwanted colouration; additions that are often heard as “improvements” of the sound. This outstanding new interconnect cable is a superb match with the Ascent range of analogue interconnect and speaker cables allowing music-lovers to achieve a barrier free signal path for their music.

The Ascent digital cable may be terminated with BNC plugs or our exclusive Atlas RCA plugs made from OCC copper with a high gloss silver finish. These plugs provide a continuous path for the signal virtually free of the discontinuities that can degrade the music signal in subtle but audible ways.

specifications:


Construction : Co-axial (55/0.10)
Conductor Material : OCC
Screen : Yes
Dielectric : PEF
Outer Diameter : 8.5mm
Connector : Conjugate Bracket RCA Plug or BNC Plug

Lengths :

0.5m, 0.75m, 1.0m, 1.5m, 2.0m, 3.0m

Also available in Custom Lengths.


Capacitance (pF/m) : 59.37
Impedance (Ohms/m) : 0.7311
Inductance (µH/m) : 0.473
Velocity of propagation : 0.81
