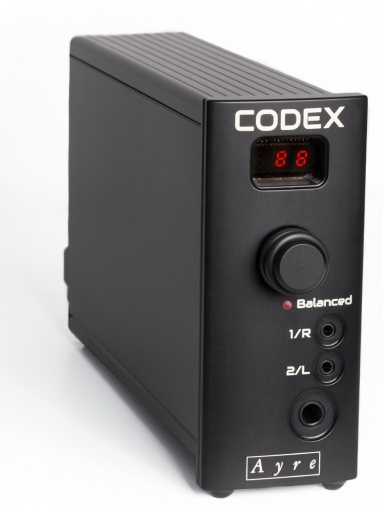

Ayre Codex DAC, Headphone Amp

  (1 Review)

Equally at home as a stand alone DAC, headphone amp, or digital preamp, the Codex can unlock the potential of any system.

£1,625.00 Exc. VAT |  |

Ayre Codex DAC, Headphone Amp

The Ayre CODEX headphone amplifier / DAC has arrived and is playing lovely music here.

The CODEX can be thought of three different products depending on how/where you use it:

A DAC in your main system

The CODEX has an optical input and a USB input with both XLR and RCA outputs. You just connect it into your existing system and its another source component.  At  £1699, it represents a new entry level DAC for Ayre.

A Digital Preamplifier.

You connect it directly to your amplifier and use the CODEX’s built in volume control. If you only use USB and optical input, this will build a terrific high performance digital based stereo, with (but of course) a world class headphone amplifier output!

 A Headphone Amplifier.

The CODEX has front panel headphone jacks with 1 x  6.3mm and 2 x 3.5mm, and you can also use the rear panel XLR connections.  You can use the two 3.5mm outputs for a balanced headphone which gives you a much lower noise floor.

Equally at home as a stand alone DAC, headphone amp, or digital preamp, the Codex can unlock the potential of any system. A  fully-balanced signal path throughout the analog circuitry provides an inherently clean and quiet backdrop for your music. The  zero-feedback design maintains all of the pace and rhythm of your favorite artist, rendering your digital music as effortlessly as if it were live


  • USB and Optical (Toslink) inputs
  • Headphone outputs
  • Two 3.5mm mini-phone jacks.
  • One ¼" phone jack.
  • 3.5mm mini-phone jacks configurable to balanced mode.
  • Asynchronous transfer mode for USB input.
  • DSD or PCM input over USB.
  • Minimum phase digital filter.
  • Single-pass 16x oversampling.
  • Ayre's exclusive Diamond output circuit
  • Linear analog AyreLock power supply
  • zero-feedback,  fully-balanced discrete circuitry.
  • Equilock circuitry for active gain devices.

Please contact us for a demonstration and check out this little gem of a DAC.

Home Demonstrations also available, please contact us



Output Level
Headphone or Preamp Mode : 7.0 volts balanced, 3.5 volts single-ended
DAC Mode : 4.0 volts balanced, 2.0 volts single-ended

USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (up to 24 bits), DSD64, DSD128
Optical input (Toslink)

2.25"W x 9"D x 5.25"H (5.5 cm x 23 cm x 13.7 cm)

3 pounds (1.4 kg)

Average Rating (1 Review):
Write a Review and share your opinions!

Ayre Codex
22 December 2015  |

Having used the Codex now for a while now I must say I am impressed with the quality of this Headphone Amp/ DAC.

The DAC section is superb, able to compete at a very high level, meaning leaving e.g. the well auditioned Chord Hugo in the dust.

The headamp section is good for the price. While there are others playing on the same level the balanced mode with two 3,5 mm plug cables sets the Codex apart from competition.

Very pleased with the Ayre.

Was this helpful to you?  Yes  /  No

28 of 30 people found this review helpful.
