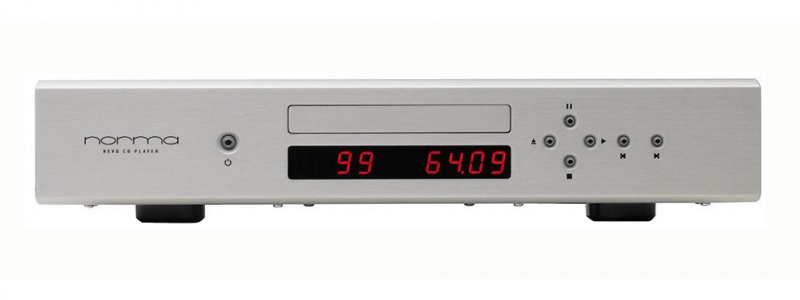

Norma Audio REVO CDP-1BR Reference CD Player
Zoom  Zoom
 Norma Audio REVO CDP-1BR Reference CD PlayerNorma Audio REVO CDP-1BR Reference CD Player

Norma Audio REVO CDP-1BR Reference CD Player

£3,595.00
£2,995.83 Exc. VAT |


|


Norma Audio REVO CDP-1BR Reference CD Player

For many years NORMA has been studying ways to offer the highest possible quality products, including digital sources. It is a common experience, in fact, that the sound of digital sources is often (though not always) of low quality and inferior to the best analogue sources. The opinion was formed that the fault is attributable to the CD standard (16-bit 44.100 kHz). But this is not completely true. If on the one hand, the high definition sources (SACD, DVD-AUDIO, PC FILE) are potentially superior to the CD, on the other hand, the real reason for the bad sound derives substantially from how the CD Players are made. The CD Player is the result of twenty years of NORMA experience in the production of analogue audio at the highest levels. Everything is designed to extract, respect and reproduce information that already exists on the CD.

Listening to a NORMA CD Player will surprise you when you hear the sound from CDs you think you already know. Firstly, the typical harshness of digital sound are missing, but at the same time you can find much more information and a lot more dynamics. All this happens without listening fatigue, but rather with a sense of neutrality and a surprising lack of artificiality. But perhaps even more spectacular is the reproduction of the soundstage. The NORMA CD Playerdoes not rebuild an artificial sound image, but really makes the listener feel the original ambience of the place where the CD was recorded. Anyone who has had the opportunity to listen to a Norma CD player has always reached the conclusion that, finally, a heavy curtain has been lifted over music. Now it’s like being seated in the front row and finally having the whole expressive palette available!

Features:

- Extreme low noise and high speed schematic topology.
- Wide band ( >1 MHz ).
- High current MOS-FET power device (100 A output peak current).
- 8 power device for a total rated 1.000 W power handling capability.
- Semiconductor selected and matching for Left & Right channel.
- PCB Board with wide ground plane.
- Separate ground plane power supply for Gain, Driver and Output stage.
- High speed and low noise regulated power supply for gain and driver stage.
- High filtering capacity with numerous and low impedance capacitors.
- Full aluminium non-magnetic frame.
- Toroidal power transformer specially designed for audio applications, low dispersion flow. low mechanical noise, high permeability magnetic core with consequent low output impedance.
- Remote control of all functions with NORMA RC-A remote control.
- Two-speed volume control (Fine and Fast).
- Possibility of housing the PHONO Stage Board inside.
- High quality phono stage, for MM and MC pick-up
- Protection for DC signal sensitive speakers.
- Inputs selection by relay with GOLD/PALLADIUM contacts.
- Stand-by mode switches off the microprocessor one the command is executed, so as to annul any interference towards analogue signal.

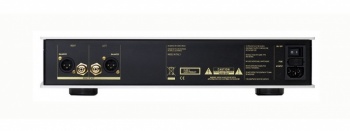

Connections: Line RCA output, XLR Balanced
Outputs Voltage: 3.0 V RMS (+10 dBV) RCA (at 0 dB), 6.0 V RMS (+16 dBV) XLR(at 0 dB)
Output Impedance: 200 ohm
System Frequency Response: 0,0 to 22KHz +/- 0,3 dB (limited from CD standard)
Analogue Output Filter: 0,0 to 180 kHz +/- 3 dB
Analogue StageFrequency Response: 0,0 to 2MHz +/- 3 dB
Configuration: Solid state
Oversampling: DF 1706 8 x Digital Filter
Oversampling Filter: User selectable by Jumper inside from: Sharp & Slow Roll-off filter response.
D/A Converter: PCM 1704 Multibit 24 Bit D/A converter
I/V Conversion: I/V Conversion by proprietary topology with discrete component
Output Stage: Proprietary topology with discrete component, high linearity & low noise
Supply: 230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)
Dimensions (HxWxD): 75 x 430 x 350 mm
Weight: 10 Kg
Note: Integrated CD Player with full remote control
