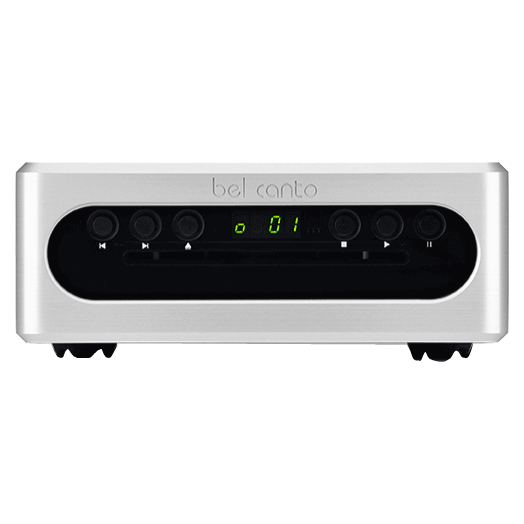

Bel Canto e.One CD3t CD Transport

The CD3t CD transport provides the most direct digital path to your Digital to Analog converter with a convenient slot load drive. Bel Canto’s e.One CD3t plays your CD, CDR, CDRW collection with accuracy and simplicity. Connect to your DAC Preamp using AES/EBU XLR, SPDIF BNC (RCA adaptor included) for an accurate data transfer of 44.1kHz/ 16bit.

Features

• Front Panel Control
• Easy to Read 4 Character Display
• 2 Digital Outputs: SPDIF and AES/EBU
• Remote Control
• Available in Silver or Black Faceplate

Specifications

Digital Outputs:

Maximum Data Rate/Bit Depth: 44.1kHz/16bit
Digital Output types: AES/EBU, XLR, SPDIF
AES/EBU Digital Output Level: 3V p-p, 110 ohms, 44.1K samples/second
SPDIF Digital Output Level: 0.6V p-p, 75 ohms, 44.1K samples/second
Additive jitter: < 100 pS RMS

General:

StreamUnlimited Slot-load mechanism
Power Draw: 4W
Sleep Mode power: <0.5W
Power Requirement: Internally set for 100, 120, 220, or 240VAC; 50 or 60 Hz
Dimensions: 8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm)
Weight: 12lbs. (8.2 kg)
