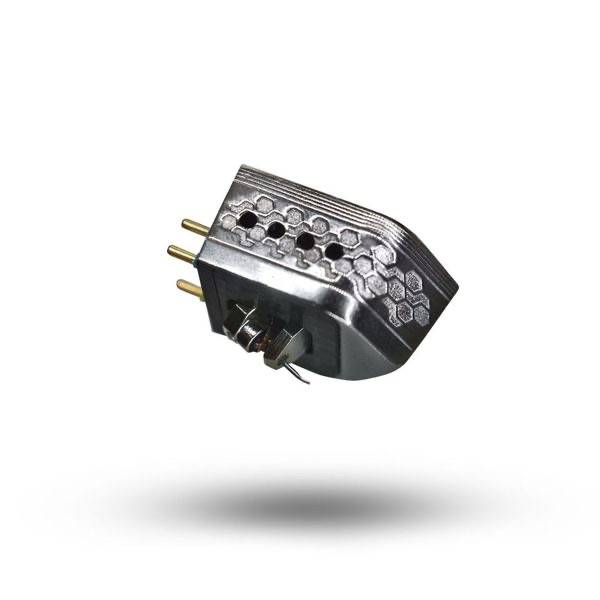

Titanic Audio Model S Moving Coil Phono Cartridge
Model S
The Model S is the perfect balance of distinguished perforance and affordability. Each Model S body is manufactured using aerospace grade Aluminium and finished with a magnificent eletroplated chrome. This material not only offers excellent resilence and durability by reducing vibrational interferance, but is an eye-catching centrepiece to any turntable. Both the Model A & Model S make use of non-magnetic materials to remove any electronic tampering throughout the cartridge.
The design is encapsulated through the perfect balance of 50/50 weight distribution allowing this cartridge to eligantly glide through any record. Each cartridge is designed with a threaded body which ensures fitting is an effortless task.
Musicality is at the heart of all our models, we focused on creating a product that not only produces high accuracy but more importantly an incredible musical experience which can be enjoyed for hours on end without fatigue. We all strive for life like reproduction of music but that shouldn't be at the expense of enjoyment.
CNC Machined Aerospace Aluminum
Each body is carefully machined to extremely high tolerances to ensure precise weight distribution and maximum rigidity.
Elliptical Nude Diamond
Our precision mounted diamond stylus offer's superb tracking and information retrieval
0.02mm OCC Coils
Our coil's are wound using Titan Audio's exceptional copper which is provided exclusively for our cartridges
Aluminum Cantilever
The aluminum cantilever in our Model S cartridge was chosen for it's exquisite musical characteristics.
0.36mV Output Level
A healthy 0.36mV output makes the Model A a great companion to most MC phonostages.
Monocoque Frame
The lightweight body is built around a carbon fibre monocoque frame to offer incredible dampening and structural support.
Type Stereo MC
Body CNC Machined Aerospace Aluminum
Stylus Elliptical Nude Diamond
Cantilever Aluminum
Height 17.5mm
Weight 10.5g
Coil Type 0.02mm OCC
Output Level 0.36mV (1KHz, 5cm/s)
Coil Impedance 10.5 Ω
Frequency response 20-20KHz ±1dB
Load Impedance >=150Ω
Recommended tracking force 1.8g
