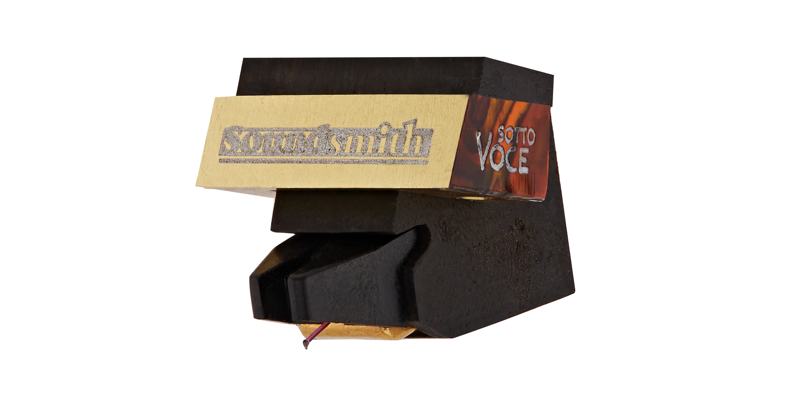

Soundsmith Sotto Voce Medium Output Fixed Coil Cartridge
Zoom  Zoom

Soundsmith Sotto Voce Medium Output Fixed Coil Cartridge

£2,999.00
£2,499.17 Exc. VAT |


|

Soundsmith Sotto Voce Medium Output Fixed Coil Cartridge

Medium output, otherwise identical to The Voice. Kudos, accolades and many “Product of the Year” awards. The pinnacle of High Output designs – from Soundsmith – of course. Sotto Voce is our special medium output version.

Each one hand crafted by Peter Ledermann - Made in  the USA.

Specifications:

  • Type: • Fixed Coil / Moving Iron
  • Mount: • Standard ½”
  • Stylus: • Contact Line, Nude, 0.10 mm square Selected
  • Radius of Curvature: • Optimized Contour Contact Line
  • Cantilever: • Ruby
  • Recommended Tracking Force:
    • 1.3 - 1.6 g Standard (Medium Compliance)
    • 1.0 - 1.2 g (Special Order High Compliance)
  • Effective Tip Mass: • 0.30 mg
  • Compliance: • 22 µm/mN (Medium Compliance)
  • • 28 µm/mN (High Compliance)
  • Frequence Response: • 20 - 20,000 Hz ± 1.0 dB
  • Channel Separation @ 1000 Hz: • > 30 dB
  • • N/A (Mono version)
  • Channel Separation @ 50 - 15,000 Hz: • > 20 dB
  • • N/A (Mono version)
  • Channel Difference: • < 0.5 dB
  • • < 1.0 dB (Mono version)
  • Output Voltage @ 5cm/sec: • > 1.10 mV (MEDIUM)
  • DC Resistance (DCR): • 110Ω
  • Coil Inductance per channel: • 30 mH
  • Suggested Preamp Gain: • 48 - 54 dB
  • Cartridge Weight: • 6.80 g
  • Recommended Load Resistance: • ≥ 1.5kΩ
  • Recommended Load Capacitance: • n/a
