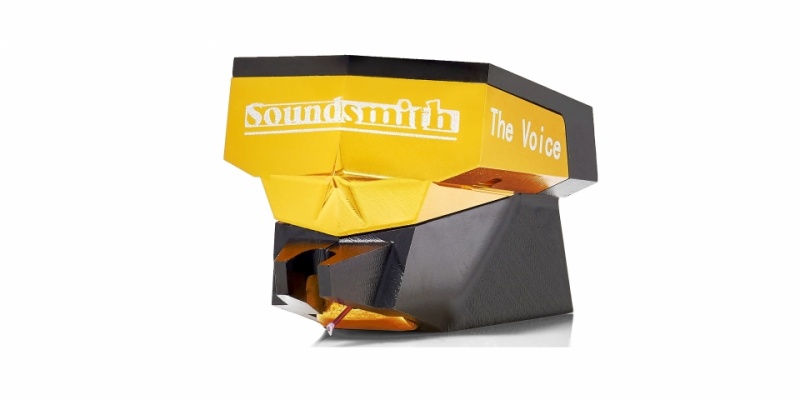

Soundsmith The Voice Phono Cartridge
Since its introduction in 2009, The Voice has won numerous "product-of-the-year" awards and is – in Peter Ledermann’s words –"probably the best High Output cartridge in production today." Our design goal was to produce the lowest moving mass high output design possible using novel and advanced technology. Featuring a single crystal Ruby Cantilever and our Optimized Contour Line Contact Stylus, we developed a specialized metallurgy for the low mass moving iron system.
A cartridge that disappears. After all, if it sounds like a “record" it’s wrong. The cartridge should bring your directly to the performance; not stand between you and the music.
Also available in dual-coil mono.
Specifications
Cartridge Type
Fixed Coil
Stylus Type
Contact Line
Output
High
Available As Dual Coil Mono
Yes
Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Stylus: • Contact Line, Nude, 0.10 mm square Selected
Radius of Curvature: • Optimized Contour Contact Line
Cantilever: • Ruby
Recommended Tracking Force: • 1.3 - 1.6 g Standard (Medium Compliance)
• 1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: • 0.30 mg
Compliance: • 22 µm/mN (Medium Compliance)
• 28 µm/mN (High Compliance)
Frequence Response: • 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz: • > 30 dB
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 20 dB
• N/A (Mono version)
Channel Difference: • < 1.0 dB
• < 0.5 dB (Mono version)
Output Voltage @ 5cm/sec: • > 2.12 mV (HIGH)
DC Resistance (DCR): • 680Ω
Coil Inductance per channel: • 190 mH
Suggested Preamp Gain: • 38 - 44 dB
Cartridge Weight: • 9.20 g (ES series)
Recommended Load Resistance: • ≥ 47kΩ
Recommended Load Capacitance: • n/a
